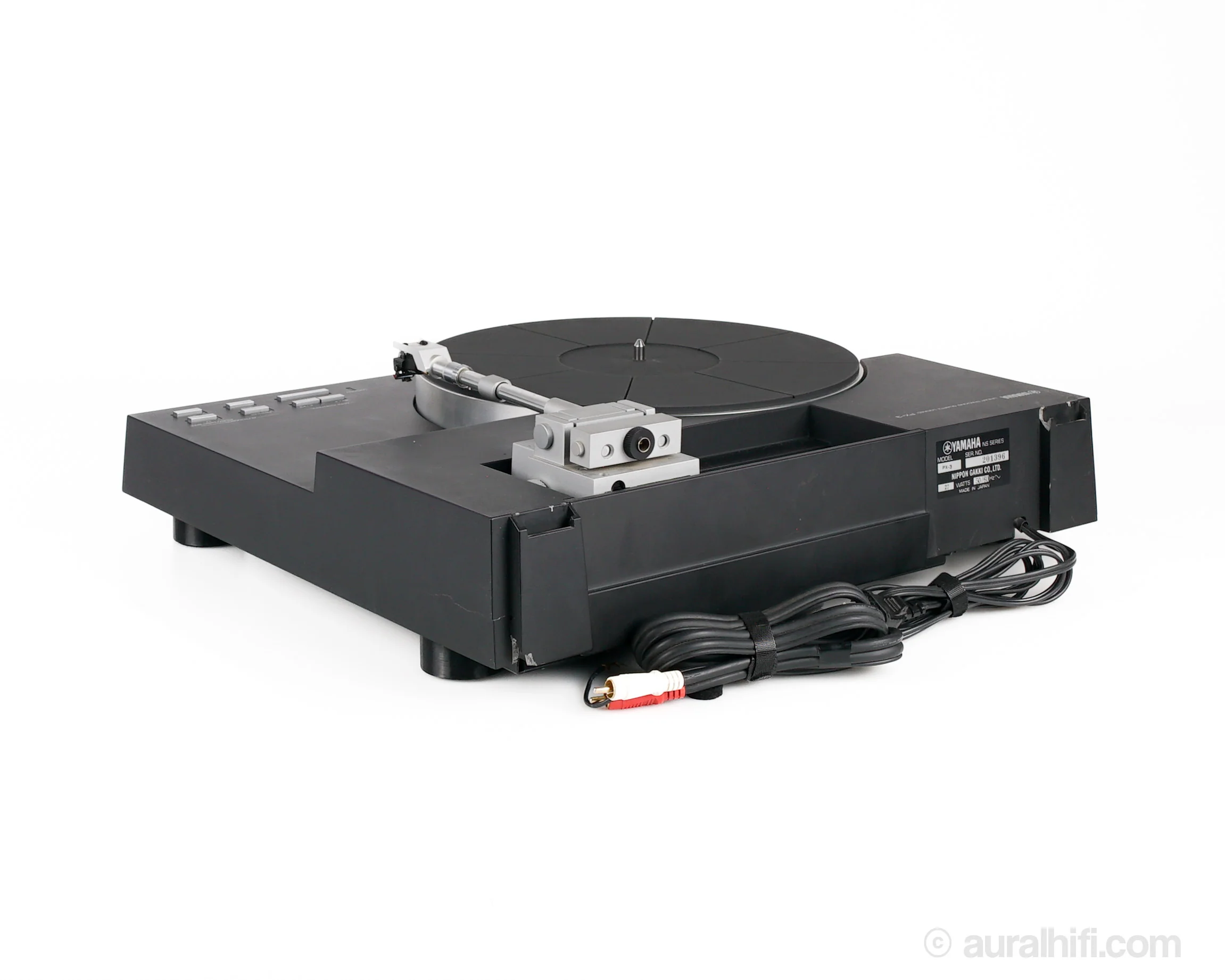

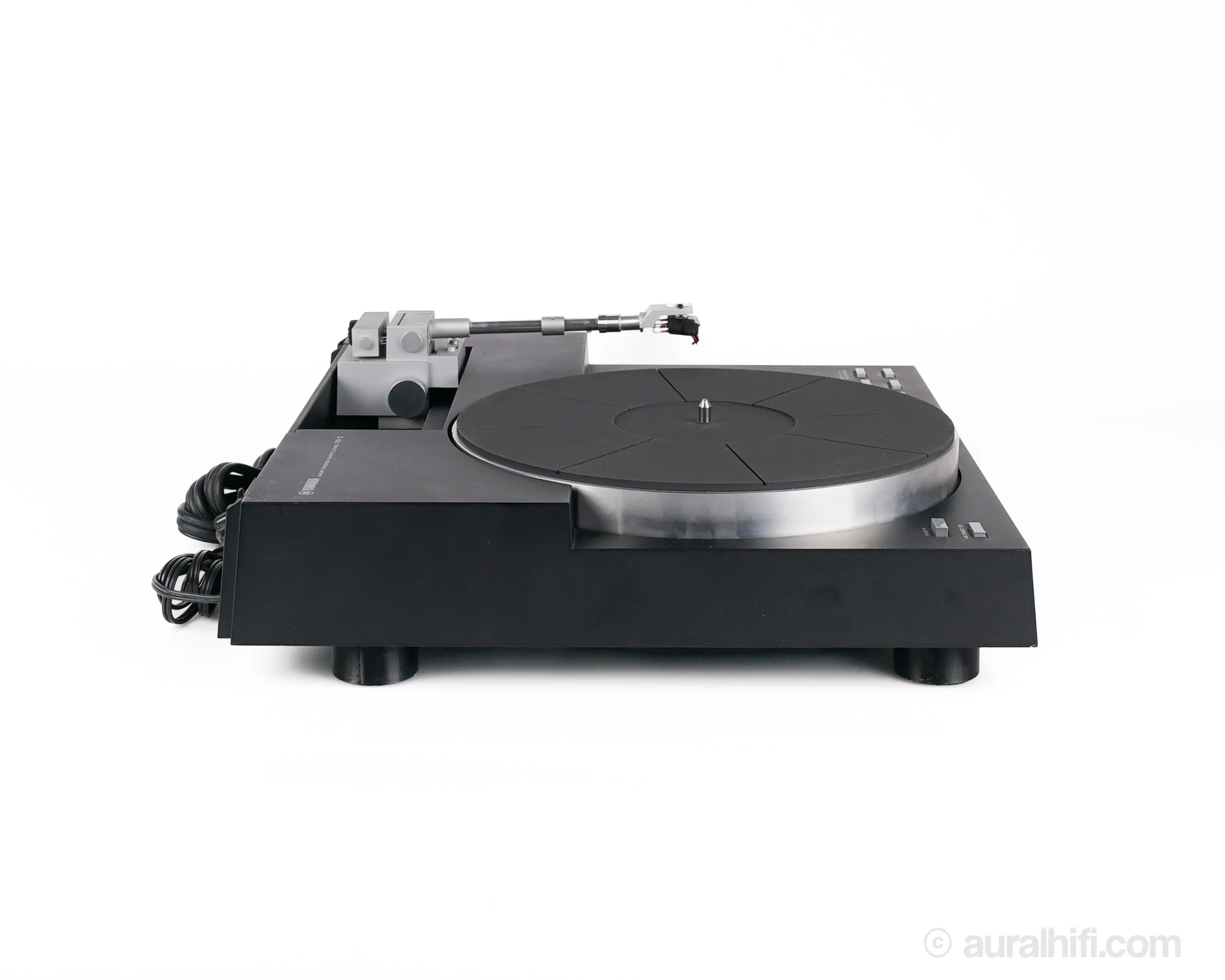

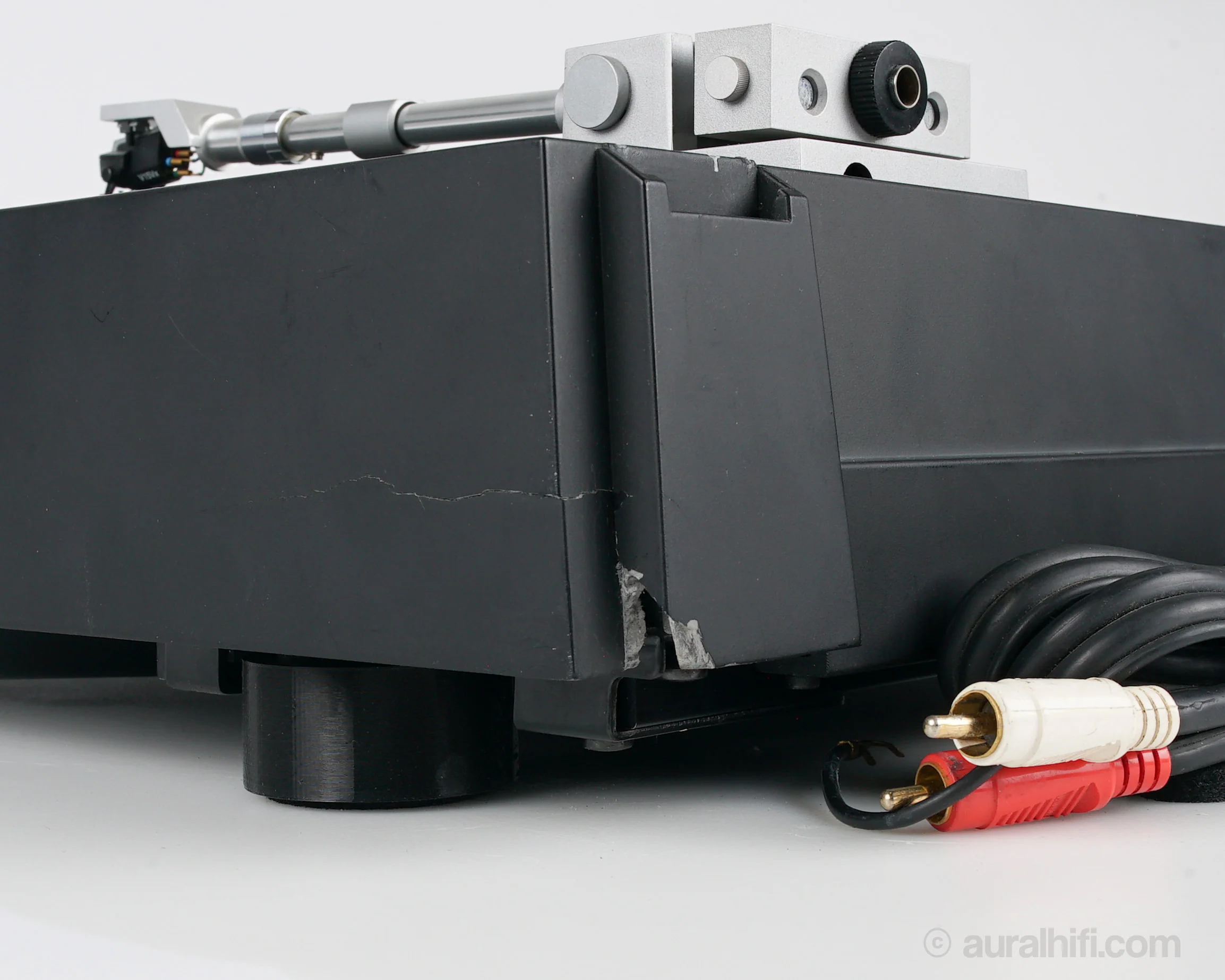

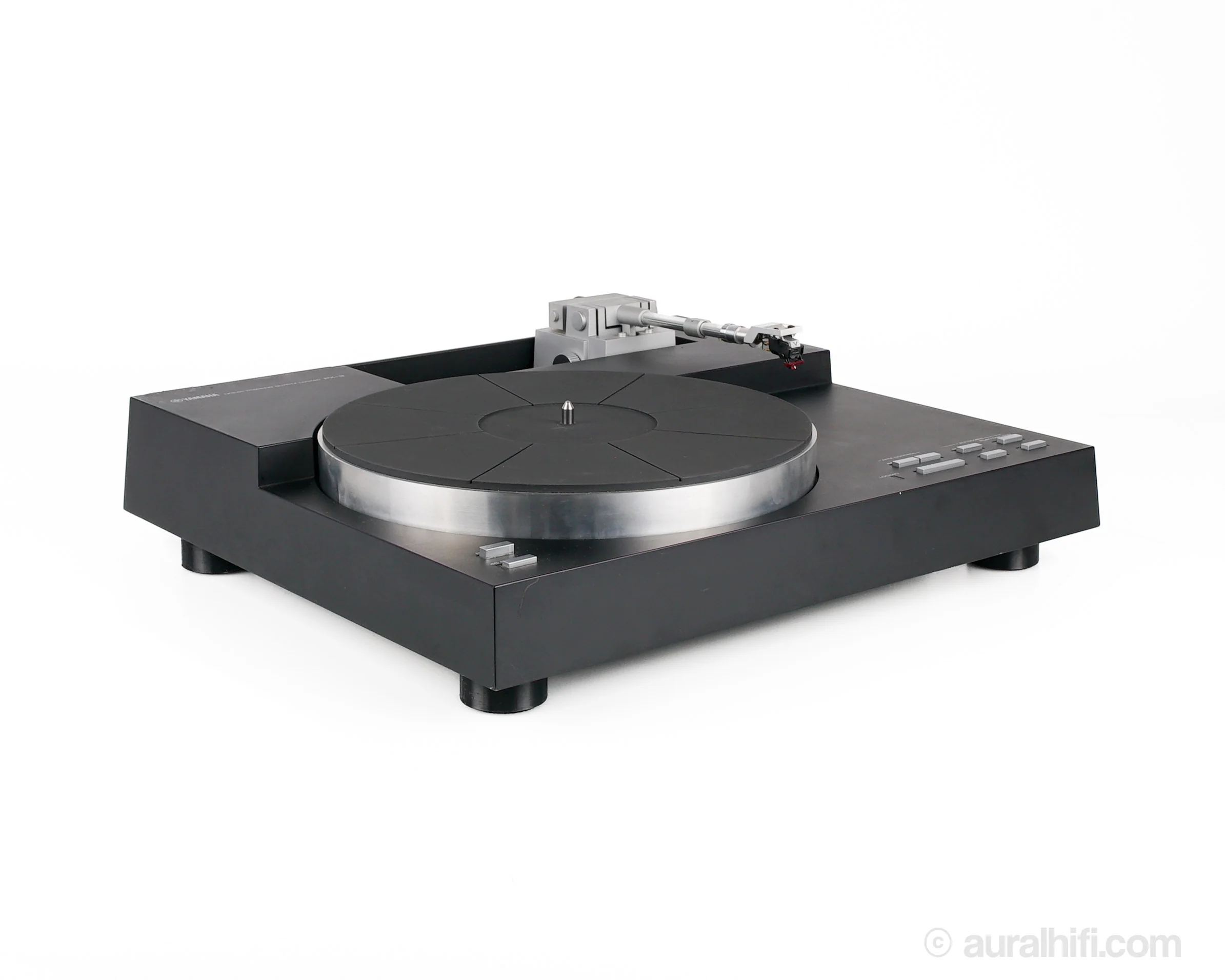

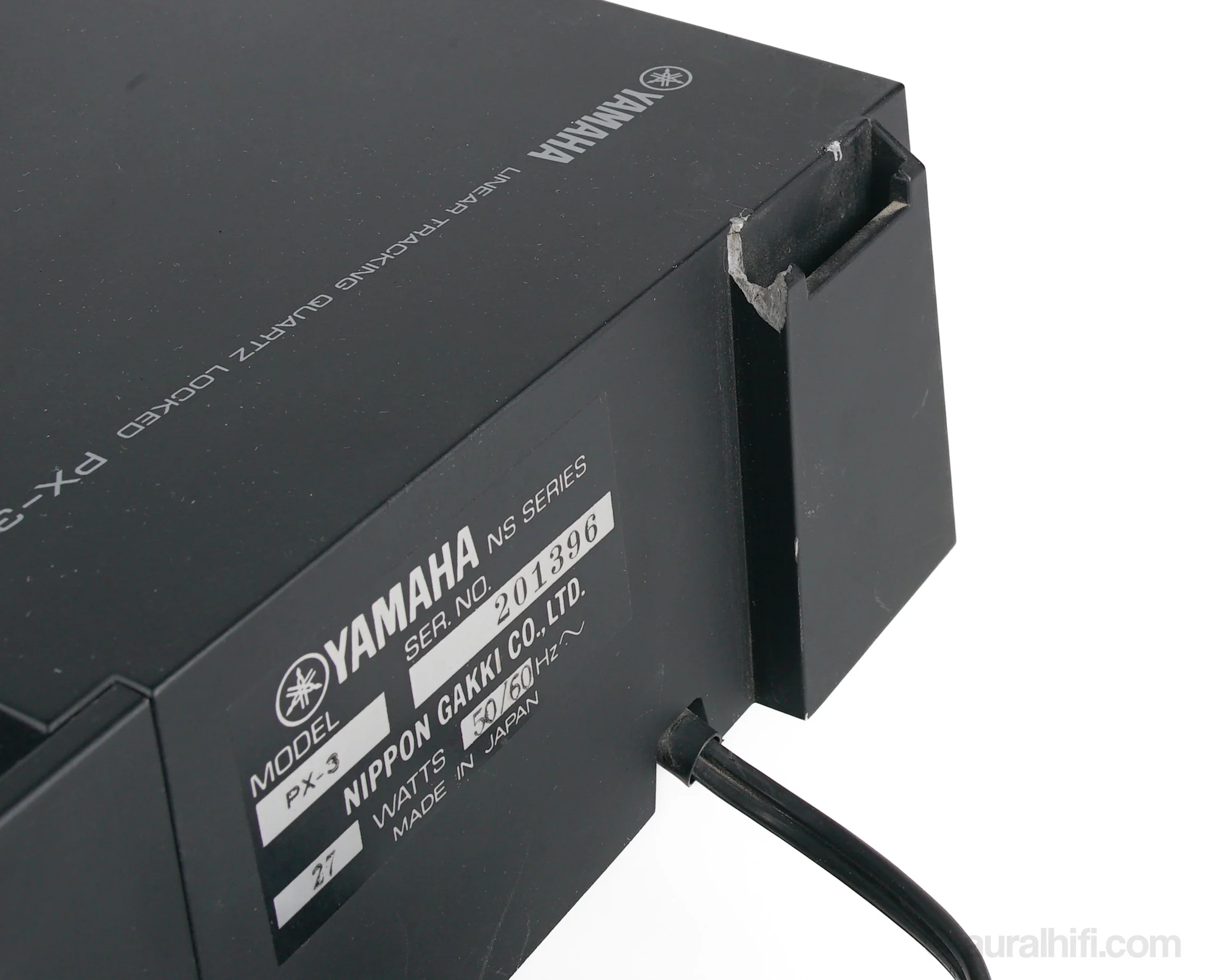

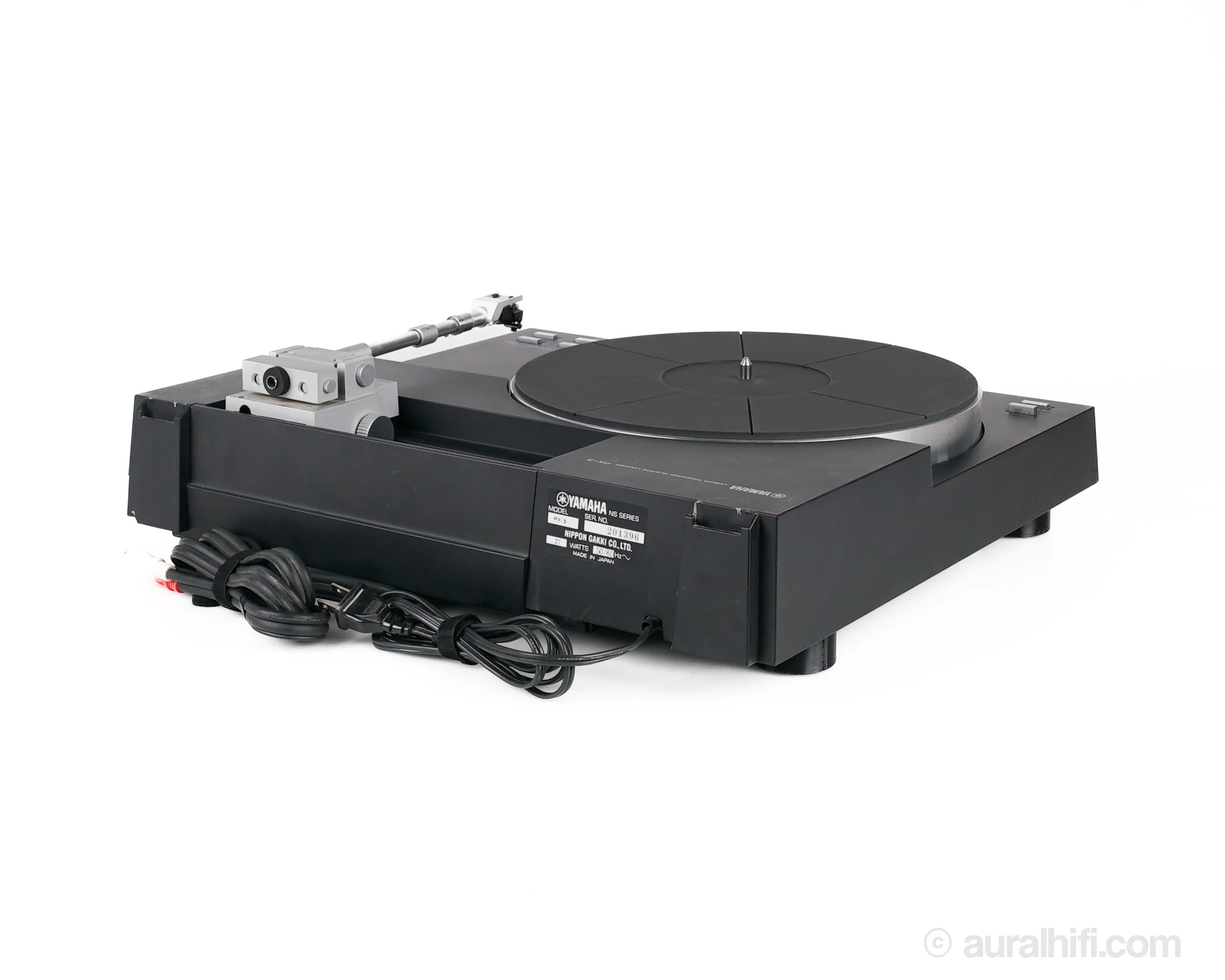

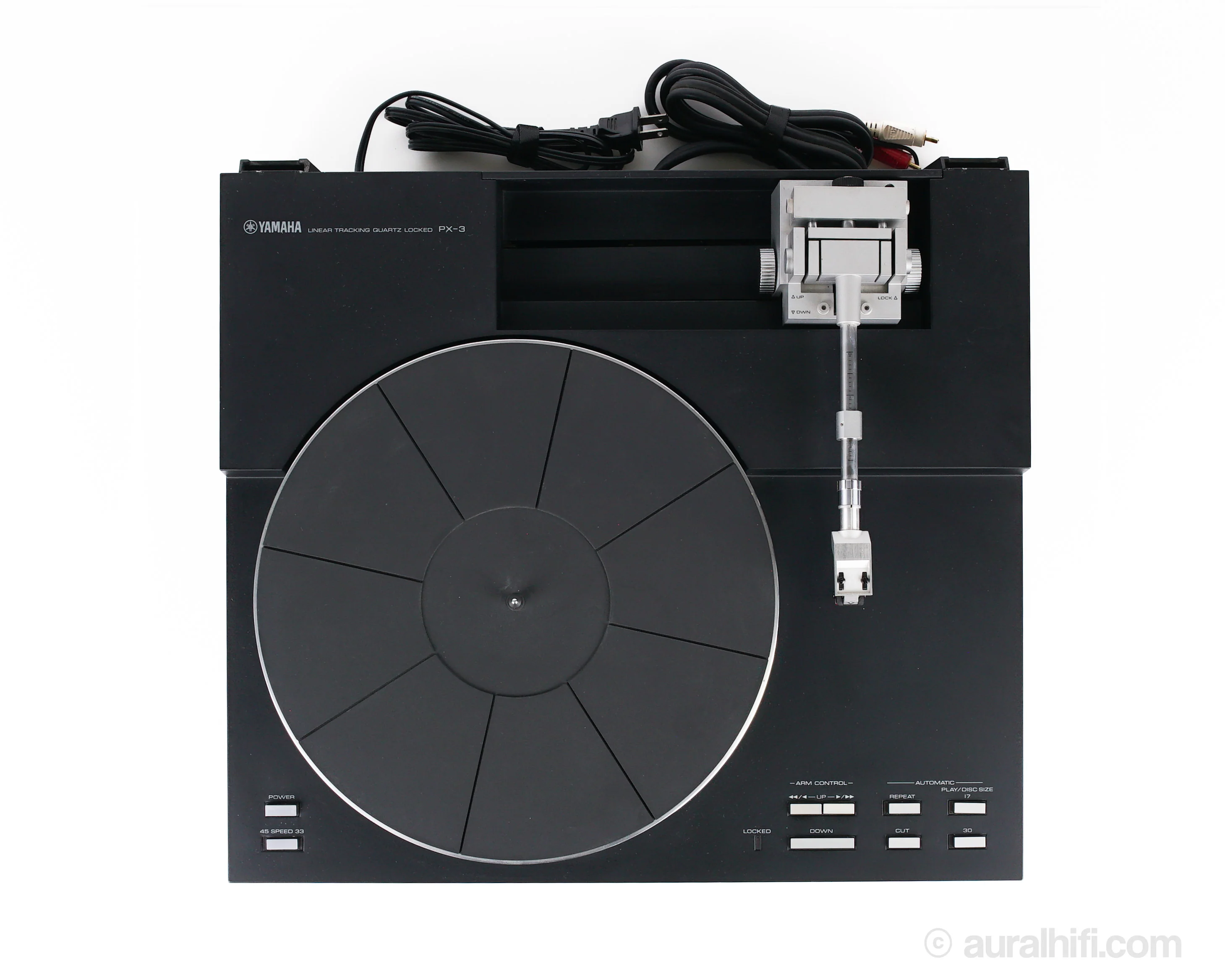

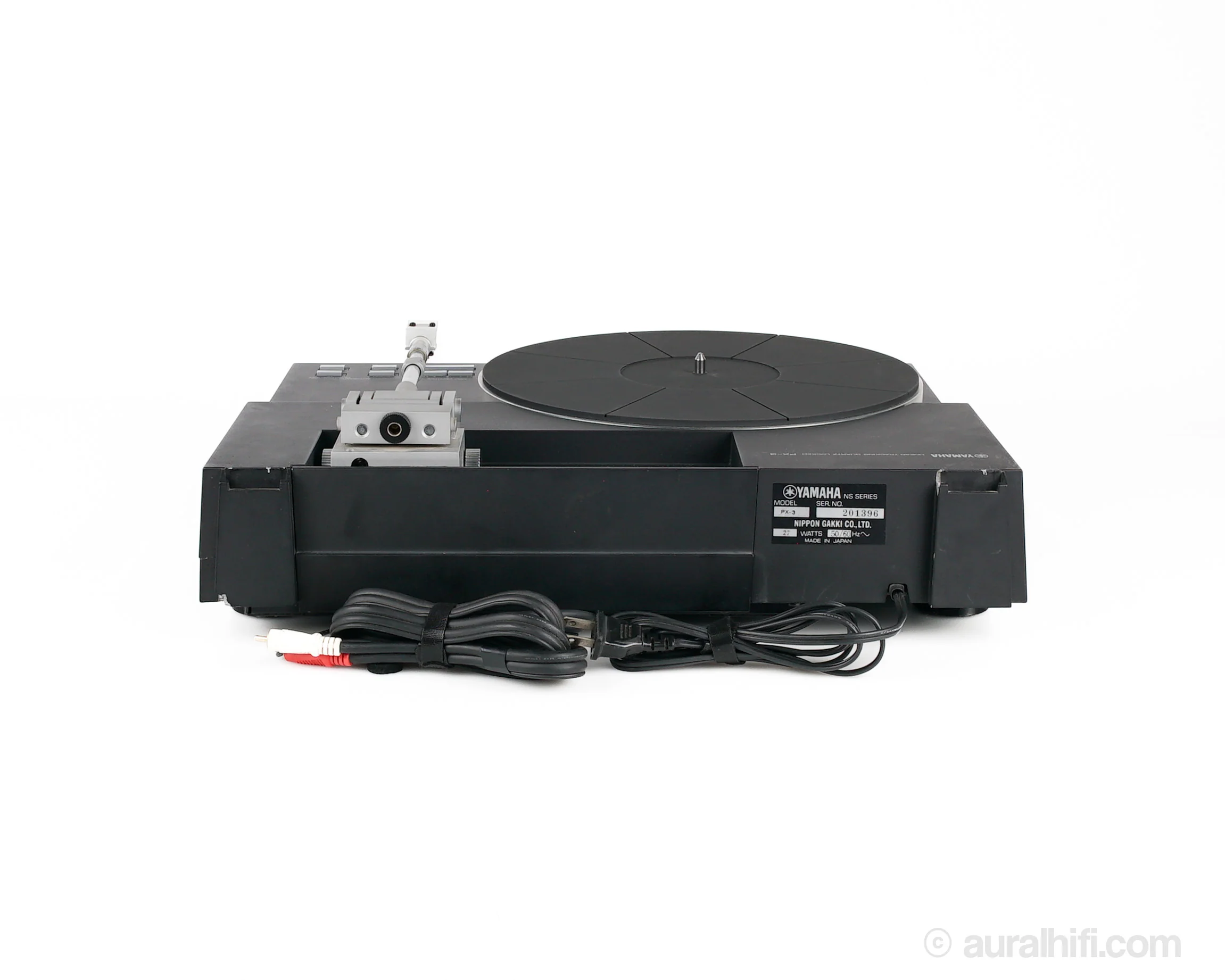

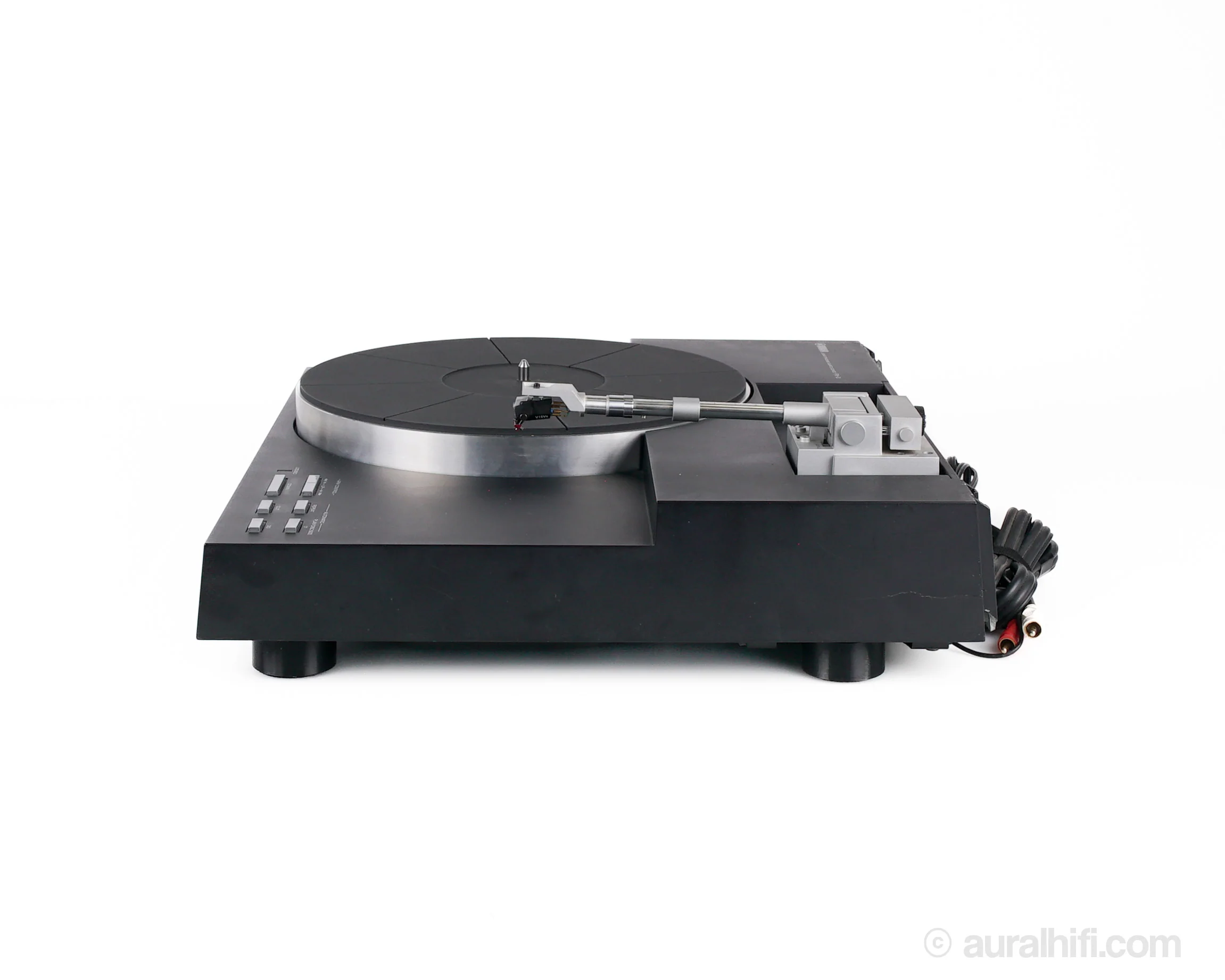

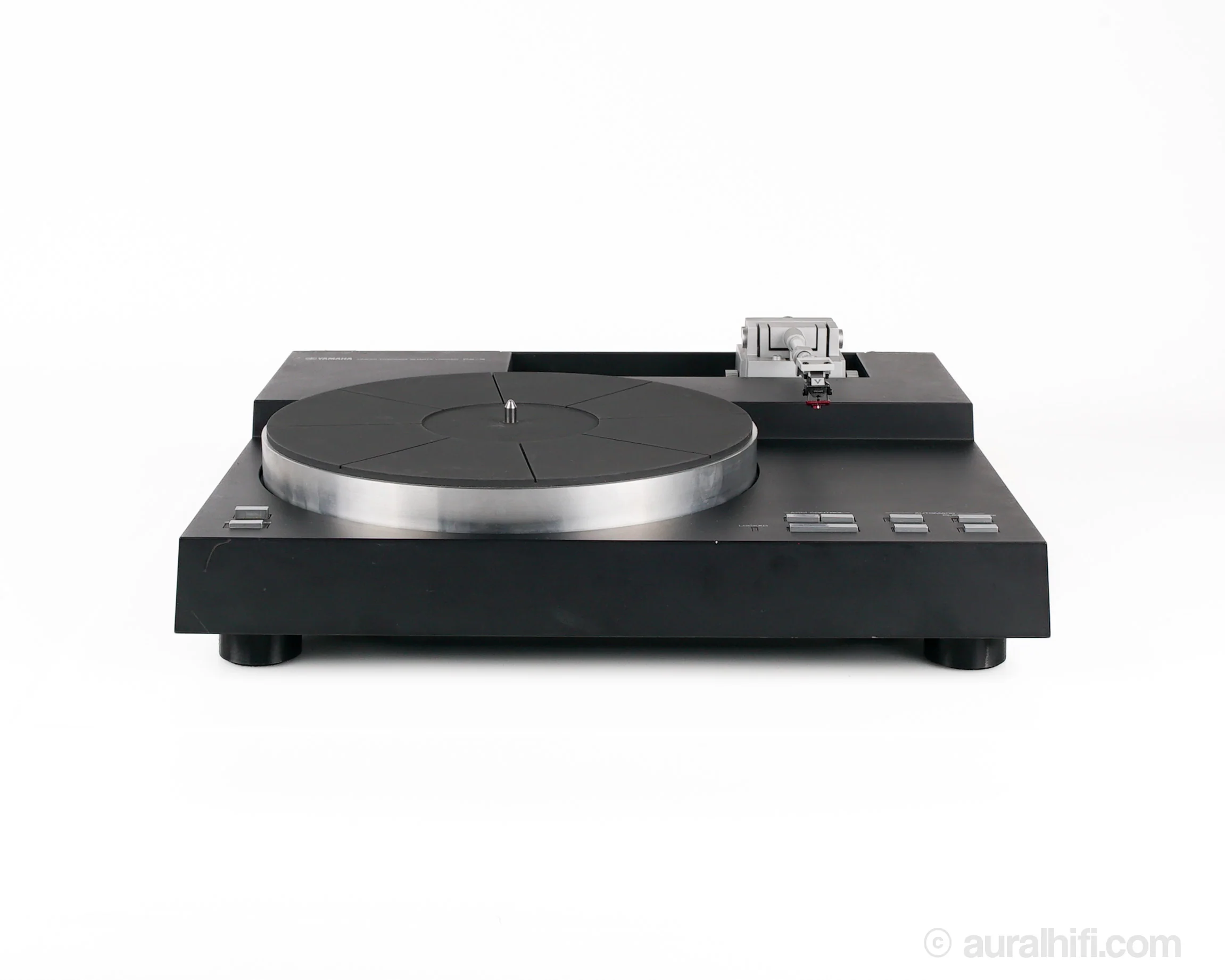

Vintage Yamaha PX-3 // Turntable

Behold the Yamaha PX-3 turntable, a harmonious blend of vintage nostalgia and cutting-edge performance. This turntable exudes old-school charm with a modern twist, presenting a beautiful fusion of classic vibes and contemporary flair. Meticulously crafted with an emphasis on timeless design, the PX-3 stands as a specimen of fine stereo equipment that not only delivers an exceptional auditory experience but also enhances your living space.

RESTORATIONS

• Comprehensive bench test
• Replaced belts in linear tracking mechanism
• Cleaned and lubricated tracking mechanism
• Installed Shure V-15xMR cartridge
• Adjusted tracking force
• Verified proper servo operation
• Replaced power supply filter capacitors
• Cleaned controls, switches, and internal electronics
• Exterior detailed

SPECS

Drive system   direct drive

Motor   4-phase, 8-pole coreless DC Hall motor

Servo control   quartz PLL

Platter   300mm die-cast aluminium, 1.6kg (including mat)

Speeds   33 and 45rpm

Signal to noise ratio   77dB

Wow and flutter   0.015% WRMS

Arm type   linear tracking

Effective length   190mm

Effective mass   17g (at 1.5g tracking force)

Cartridge weight   5 to 11g (10 to 16g with sub weights)

Dimensions   469 x 149 x 428mm

Weight   12kg
