Vintage Trios XX // Speakers

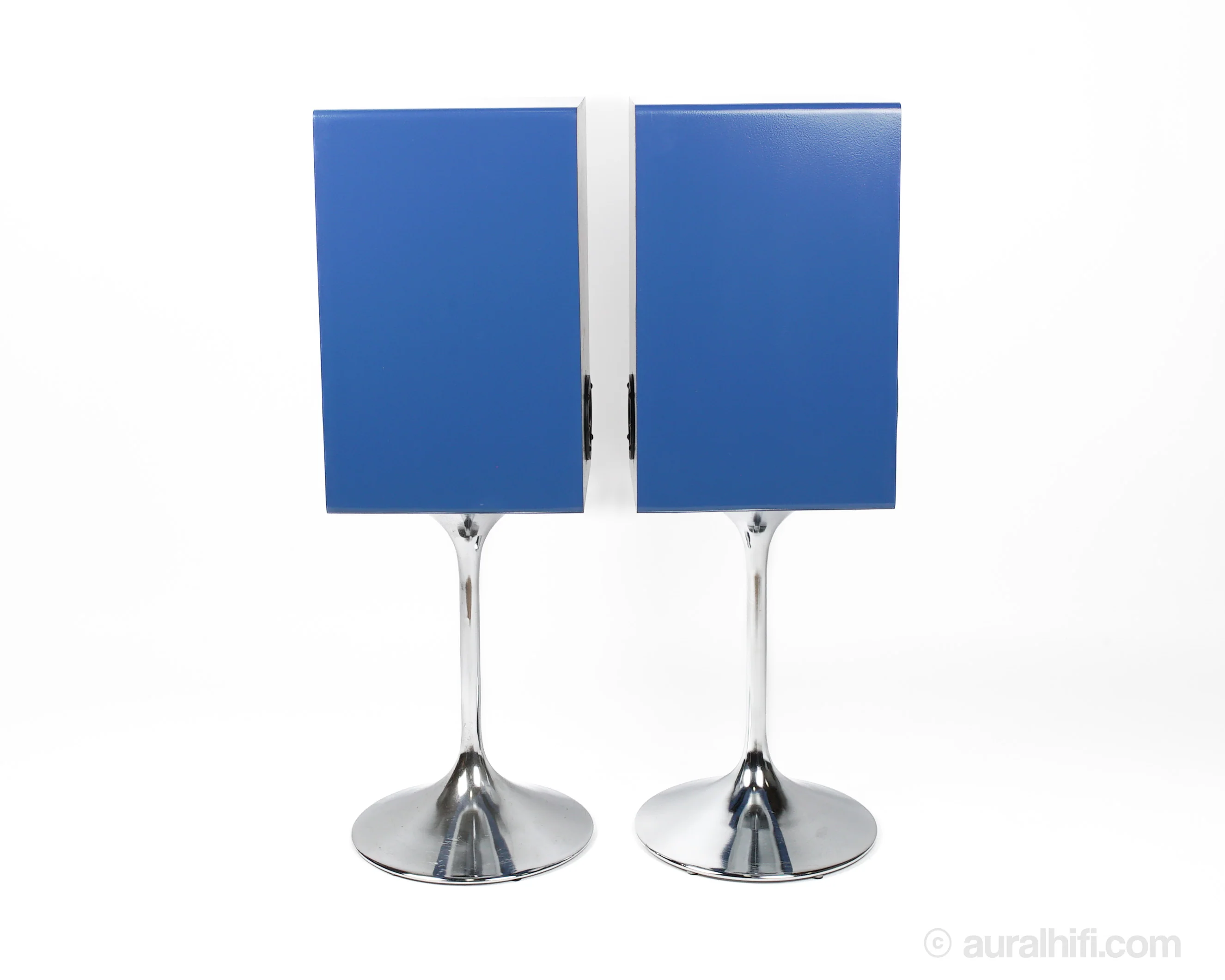

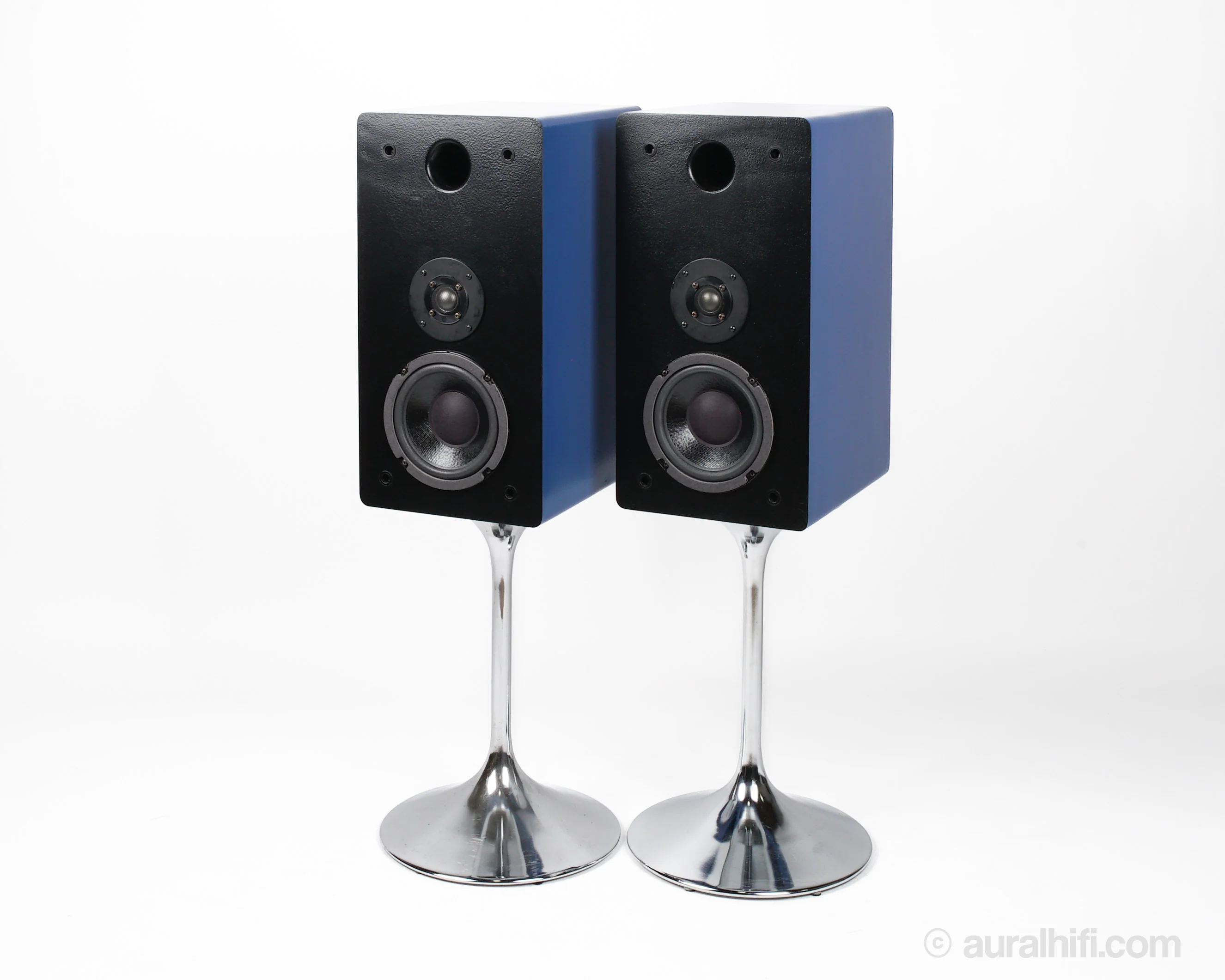

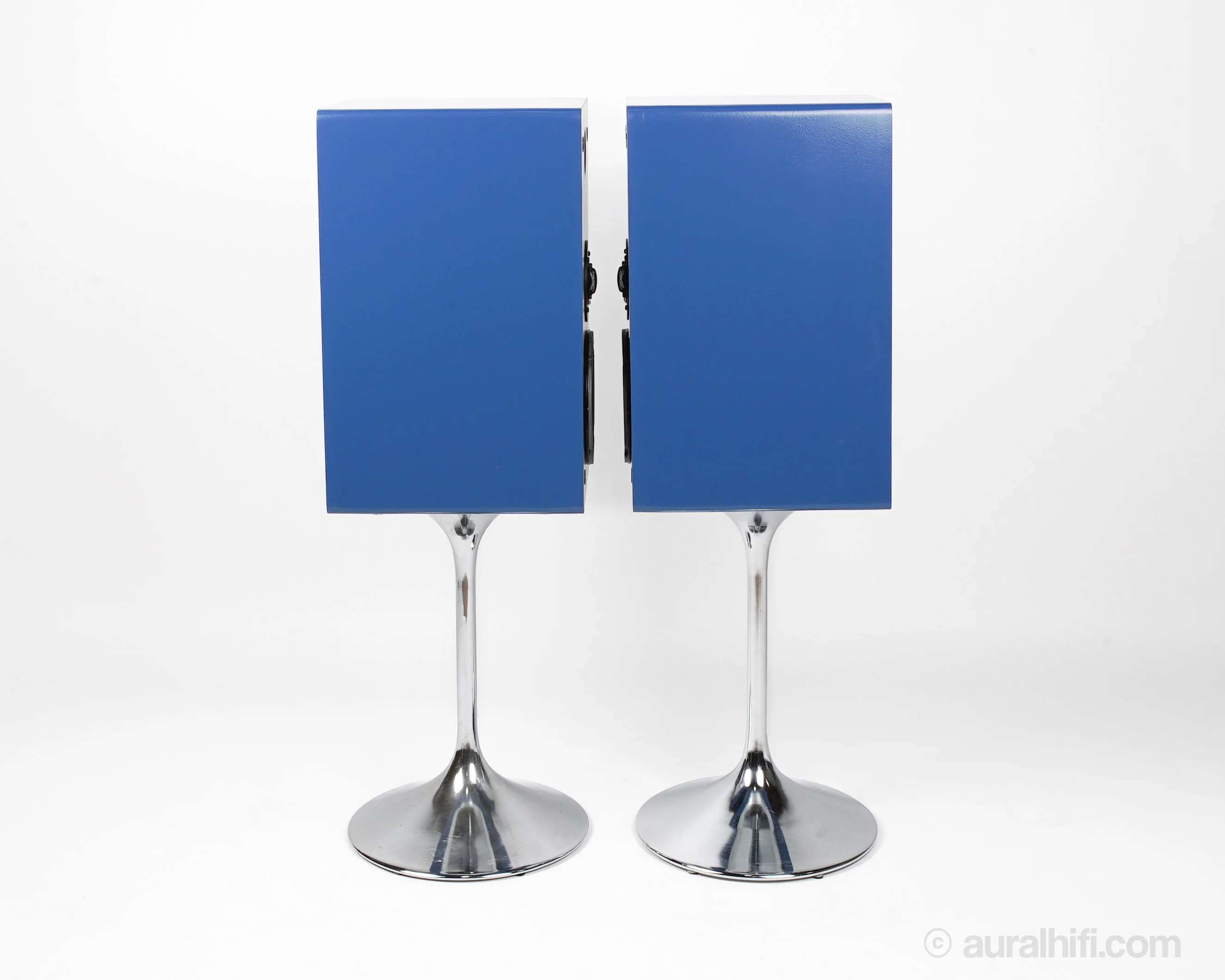

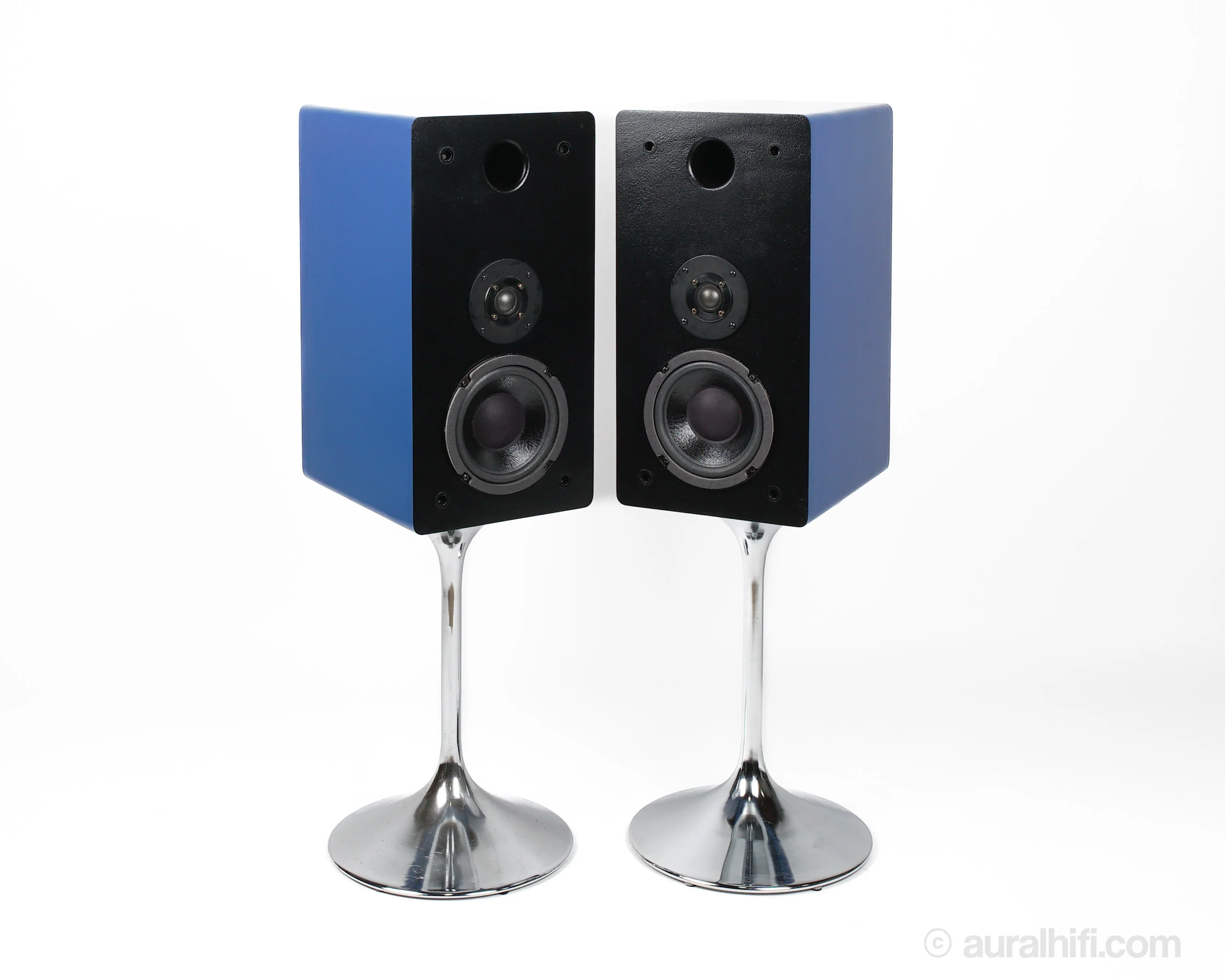

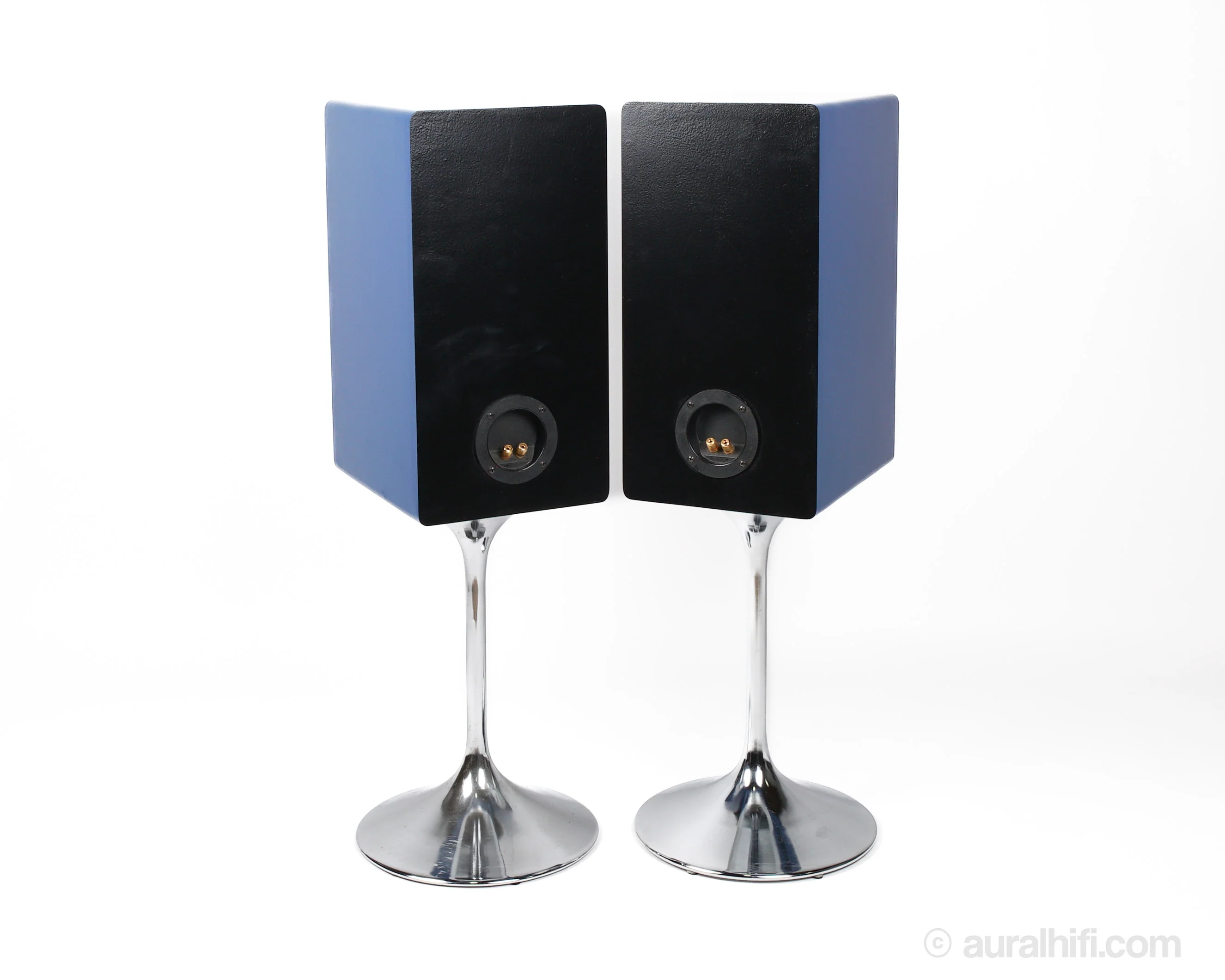

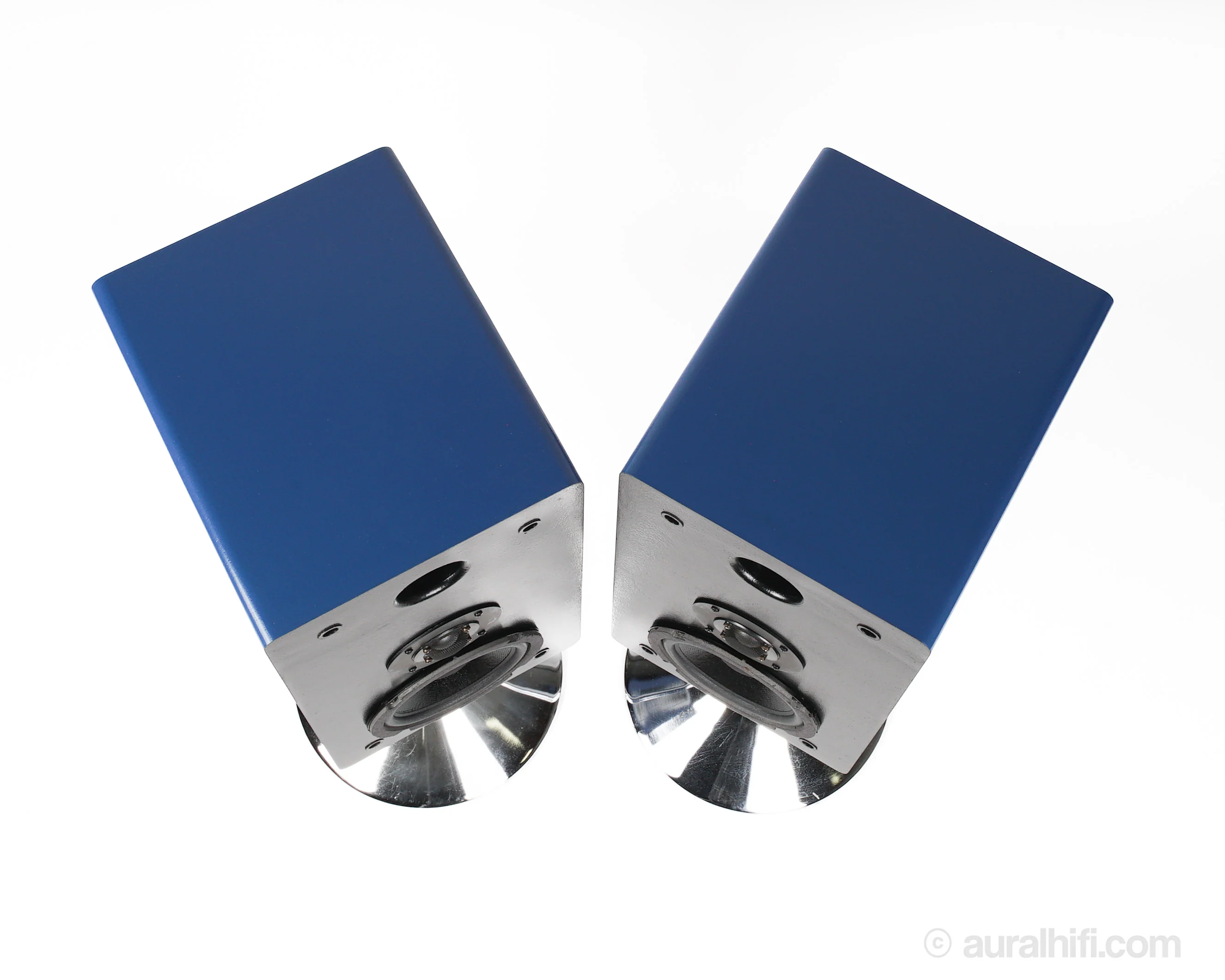

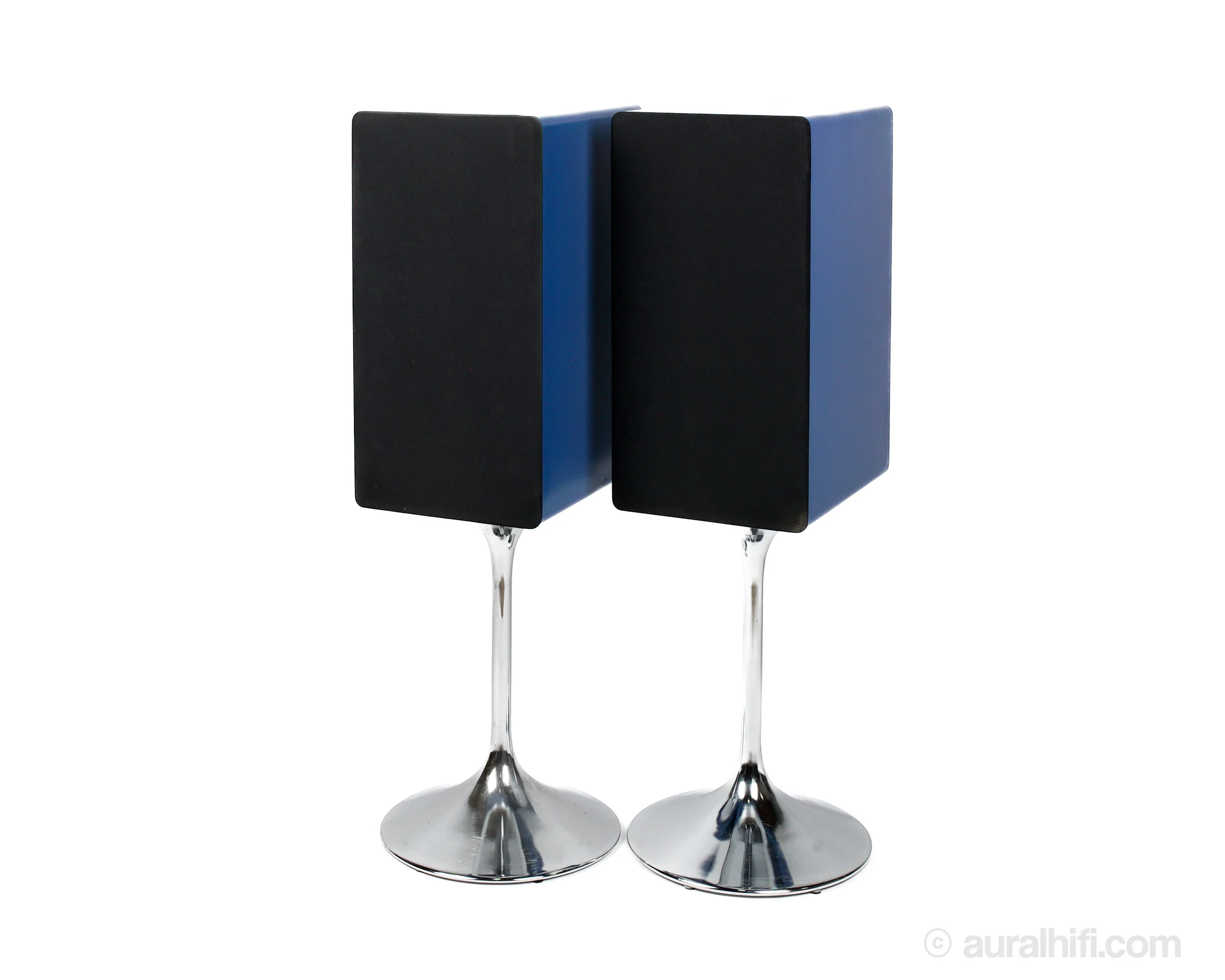

Introducing the Trios XX standmount loudspeaker, a piece of audio craftsmanship that seamlessly blends old-school charm with cutting-edge technology. This speaker embodies a beautiful fusion of classic vibes and modern flair, curated to deliver a fine and timeless audio experience. Fully restored and custom-finished by Aural.

* Stands sold separately

RESTORATIONS

• Driver impedance and performance tests
• Custom paint job
• Recapped crossover
• Reconed woofers
• Replaced ferrofluid in tweeters
• Critical listening tests
• Exterior detailed

SPECS

Frequency range   31.5 Hz-20 kHz ±4dB

Efficiency   87d8. Based on accurate measurement- 1 watt/ 1 meter at 2.83V (RMS) pinknoise

Nominal Impedance   8 ohms

Enclosure type   Ducted port bass reflex

Amplifier requirements   20-120 watts (RMS)

Woofer   The 6½ inch bass/midrange is a proprietary design built exclusively for Trios.The cone 1s epoxy-impregnated paper, for maximum rigidity. With an exceptionally long throw

Tweeter   1 inch titanium-textile combination - the deposited titanium provides low mass and rigidity for a very "fast" sound, while the texttle substrate damps the titanium, virtually eliminating the "metallic"sound quality produced by many titanium domes

Crossover   Gentle 6d8 per octave slopes for smooth system response and minimum phaseshift at the crossover point of 2.5 kHz

Cabinet   High quahty medium density fiberboard

Internal connectlons   Hard wired

Placement   The Model XX should ideally be placed on a stand 20 to 24 inches high, about3 feet from side walls and 2 feet from rear walls. Being front ported, it will also work suspended from the ceiling

Dimensions   19"H x 9.5"W x 12.75"D

Weight   20 lbs. ea.
