Vintage Pioneer SX 750 // Solid-State Receiver / Professionally Serviced / Refinished Cabinet

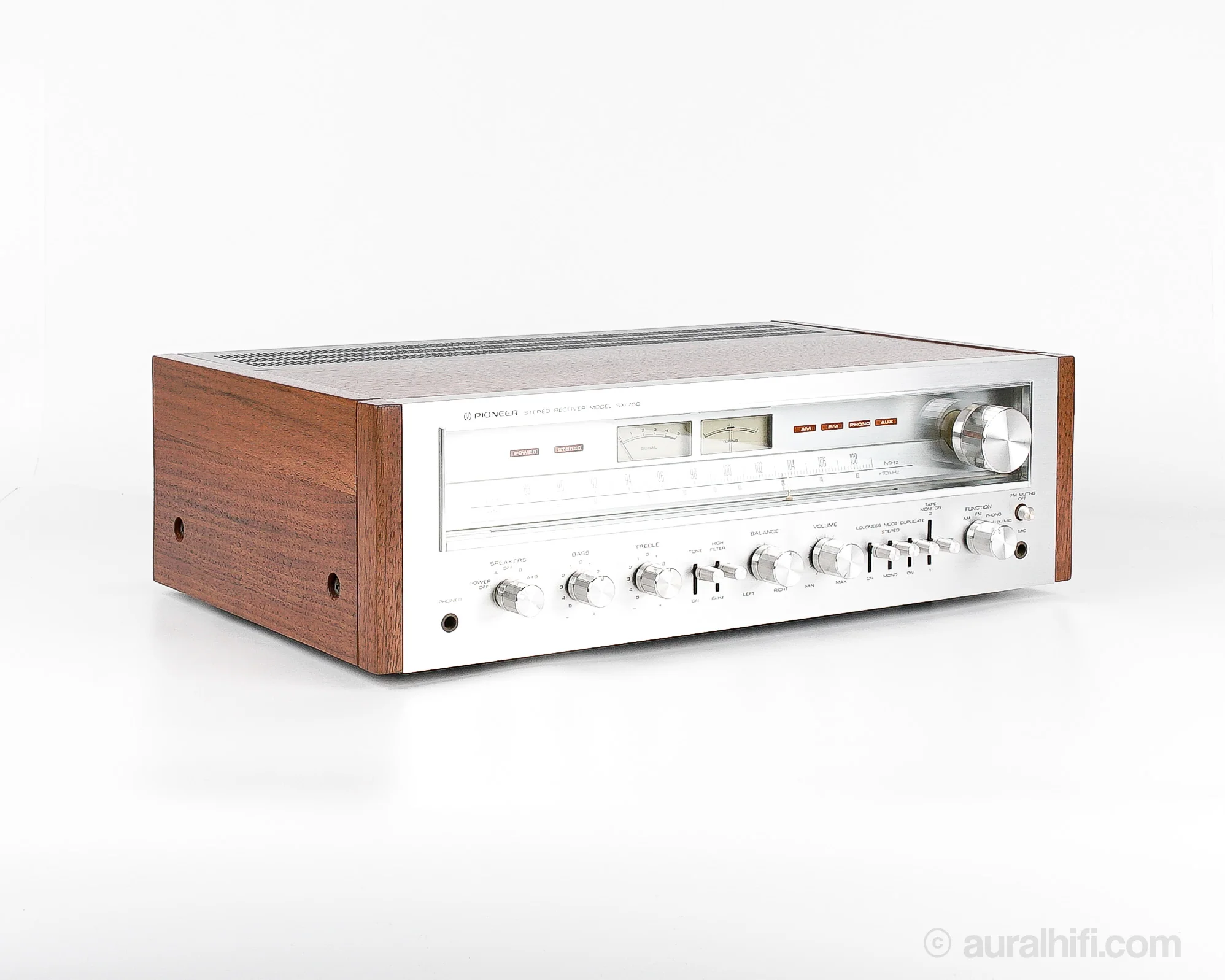

The Pioneer SX-750 combines timeless aesthetics with remarkable performance, making it a classic choice for audiophiles. Its iconic silver faceplate, brushed aluminum knobs, and crisp analog displays harken back to a bygone era of audio excellence. With attention to detail and craftsmanship that were the hallmarks of Pioneer, the SX-750 delivers both a visual and auditory masterpiece, and it continues to captivate listeners with its enduring appeal.

RESTORATIONS

• Full 30-point service check

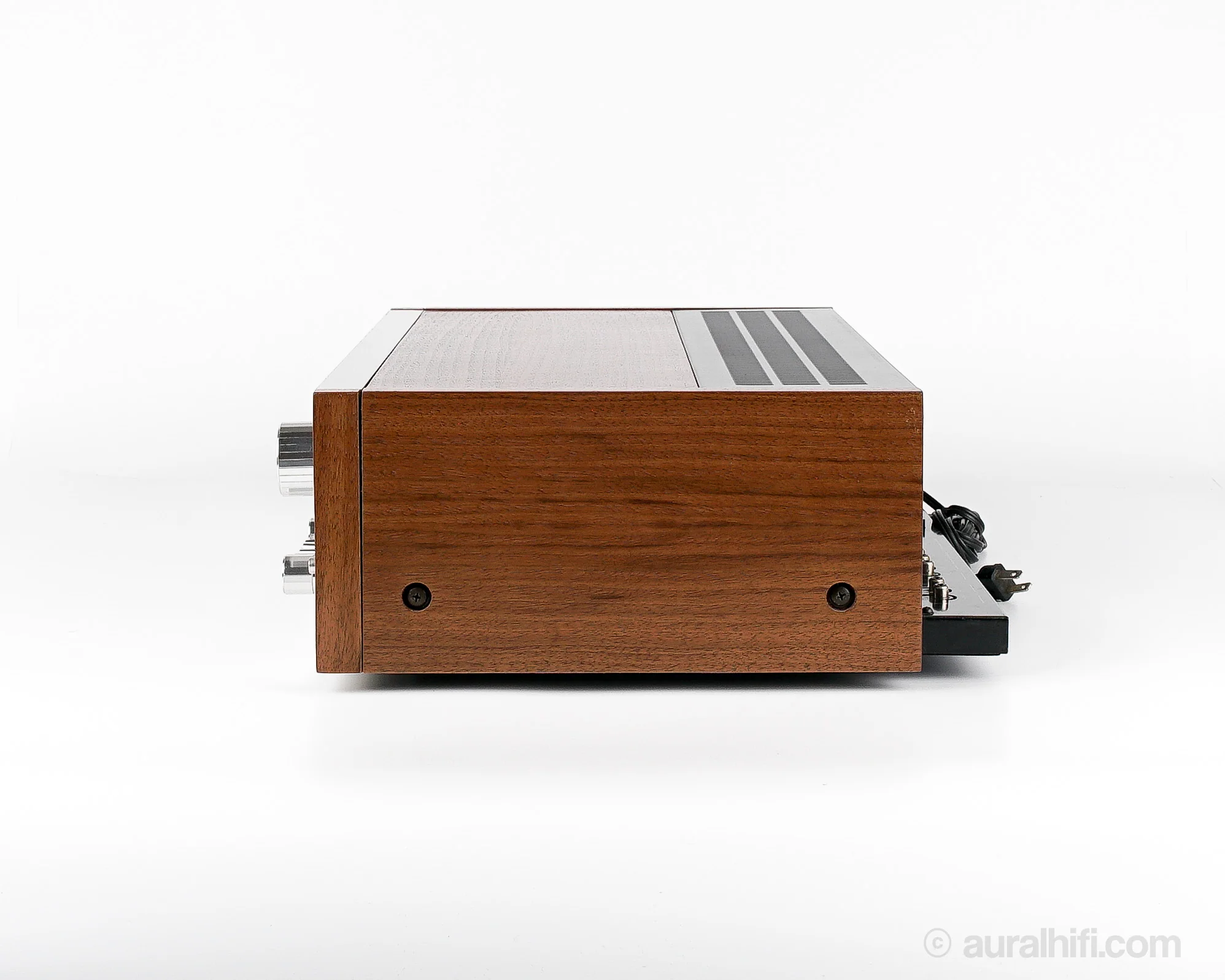

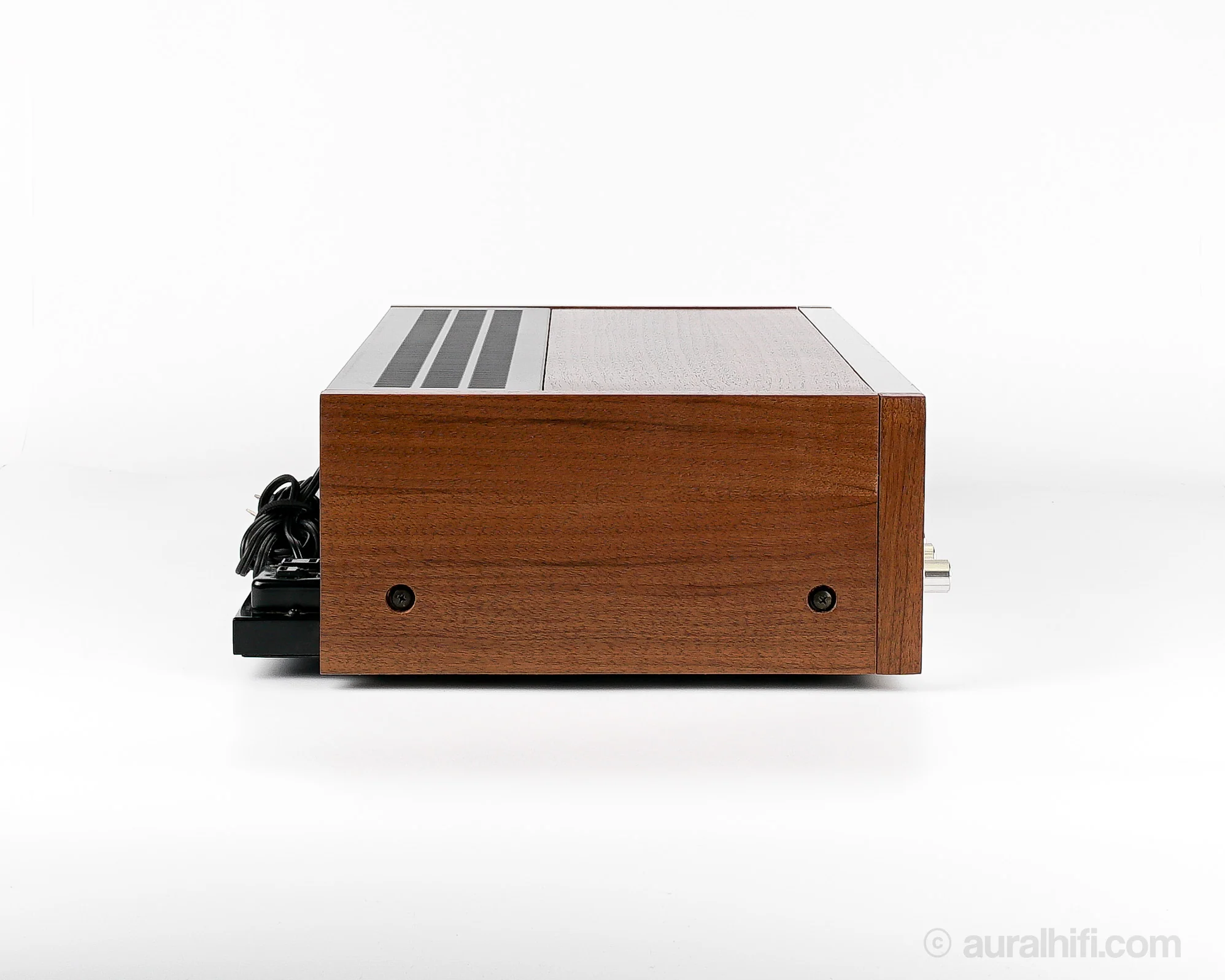

• Reveneer cabinet
• Replaced lamps with LEDs
• Burnished speaker relay
• Repaired bent speaker selector switch
• All controls and switches heavily cleaned
• Cleaned controls, switches, and chassis

SPECS

Type   Solid-state stereo receiver

Tuning range   AM/FM

Power output   50 watts per channel into 8Ω (stereo)

Frequency response   10Hz to 50kHz

Total harmonic distortion   0.1%

Damping factor   30

Input sensitivity   5mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)

Signal to noise ratio   70dB (MM), 90dB (line)

Output   150mV (line), 30mV (DIN)

Speaker load impedance   4Ω (minimum)

Semiconductors   1 x FET, 7 x IC, 42 x transistors, 40 x diodes

Dimensions   18.90"W x 5.87"H x 14.61"D

Weight   30.2 lbs.
