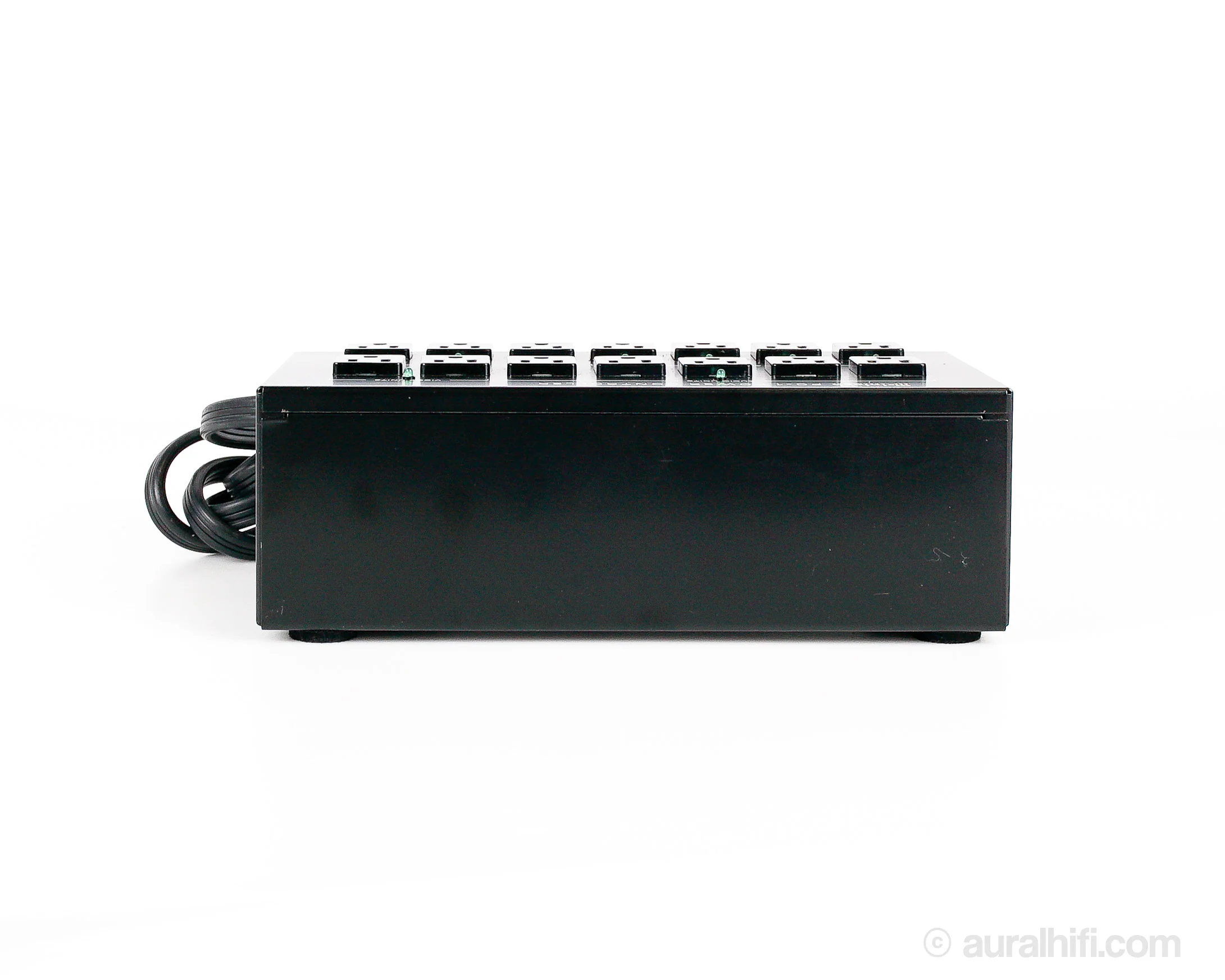

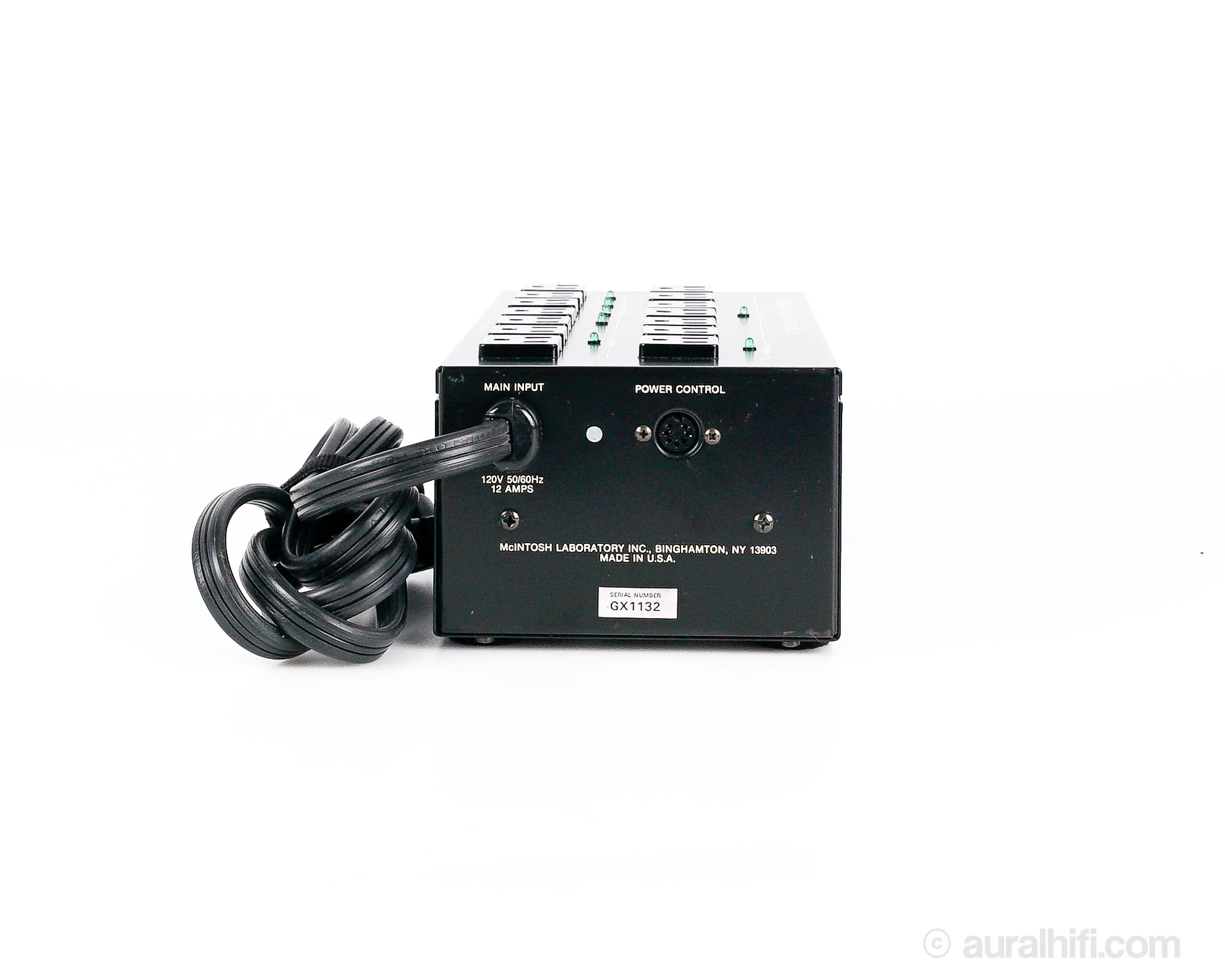

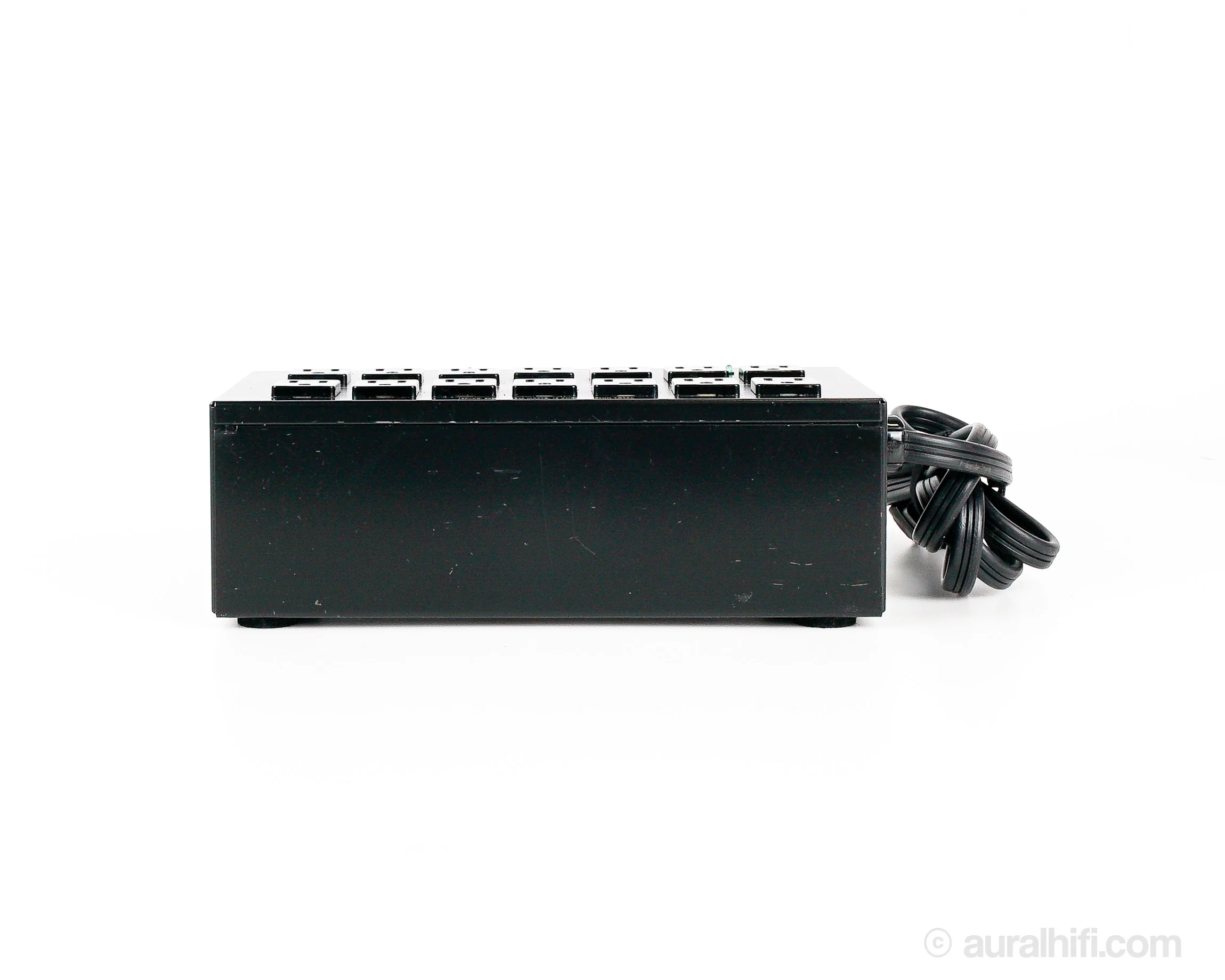

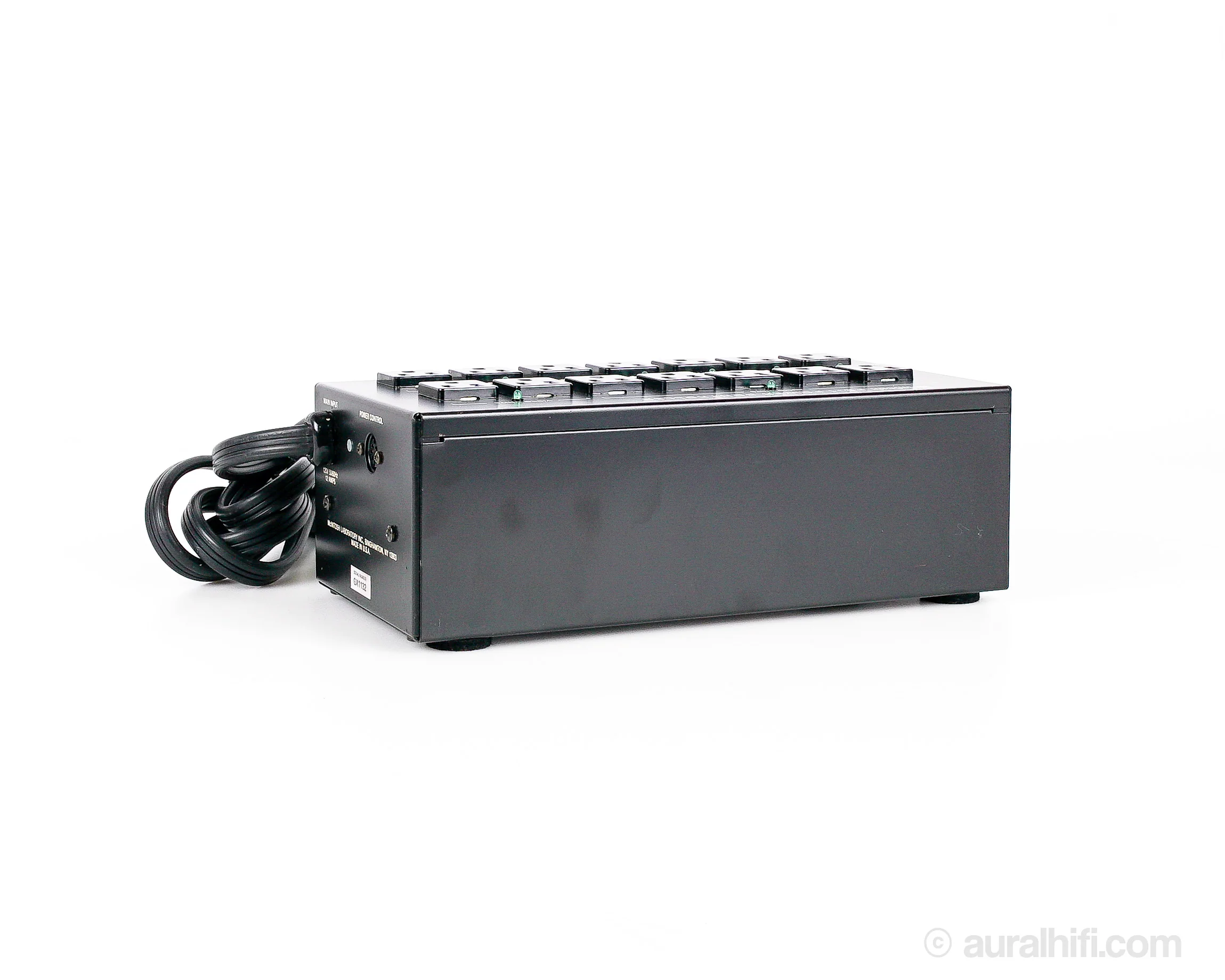

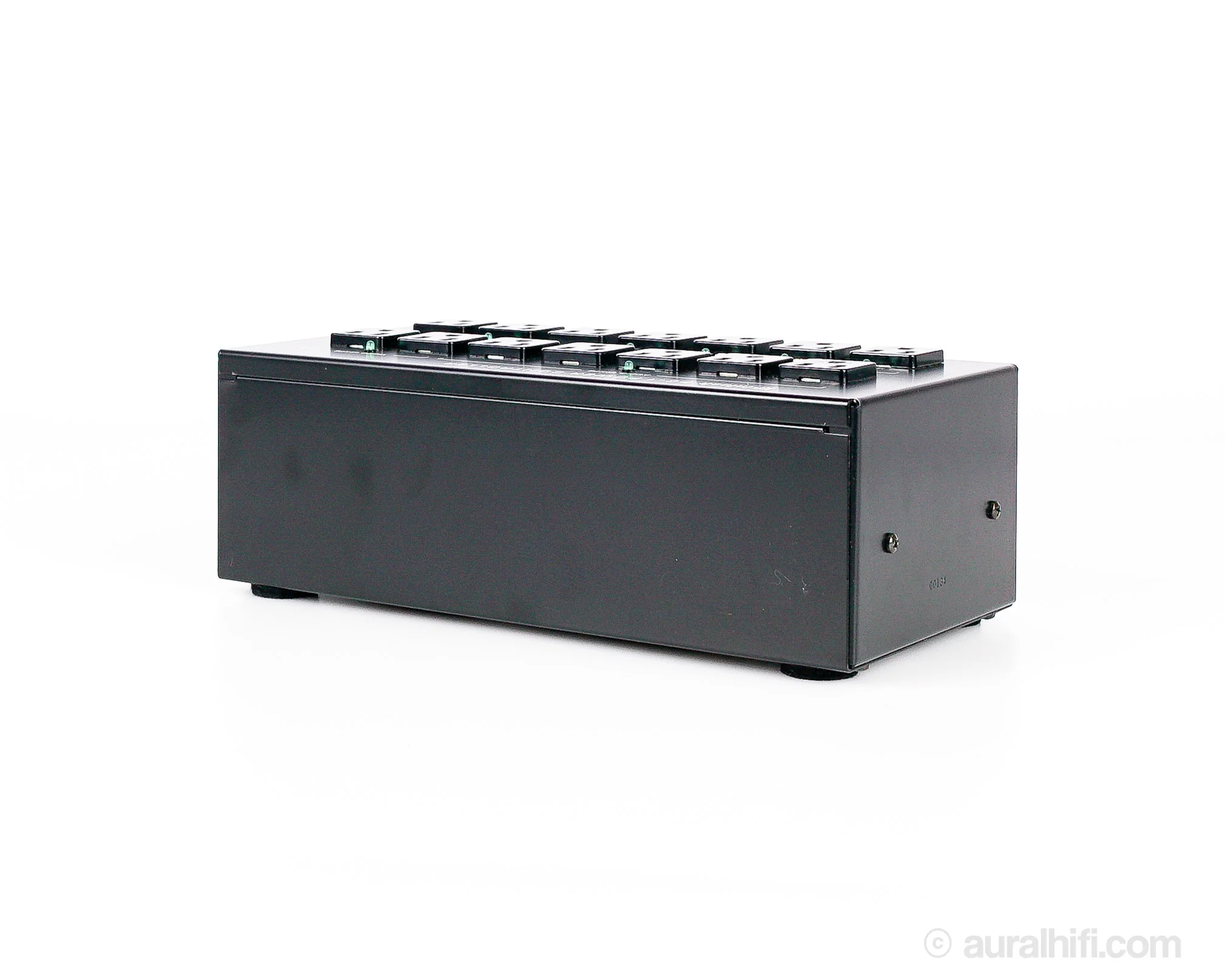

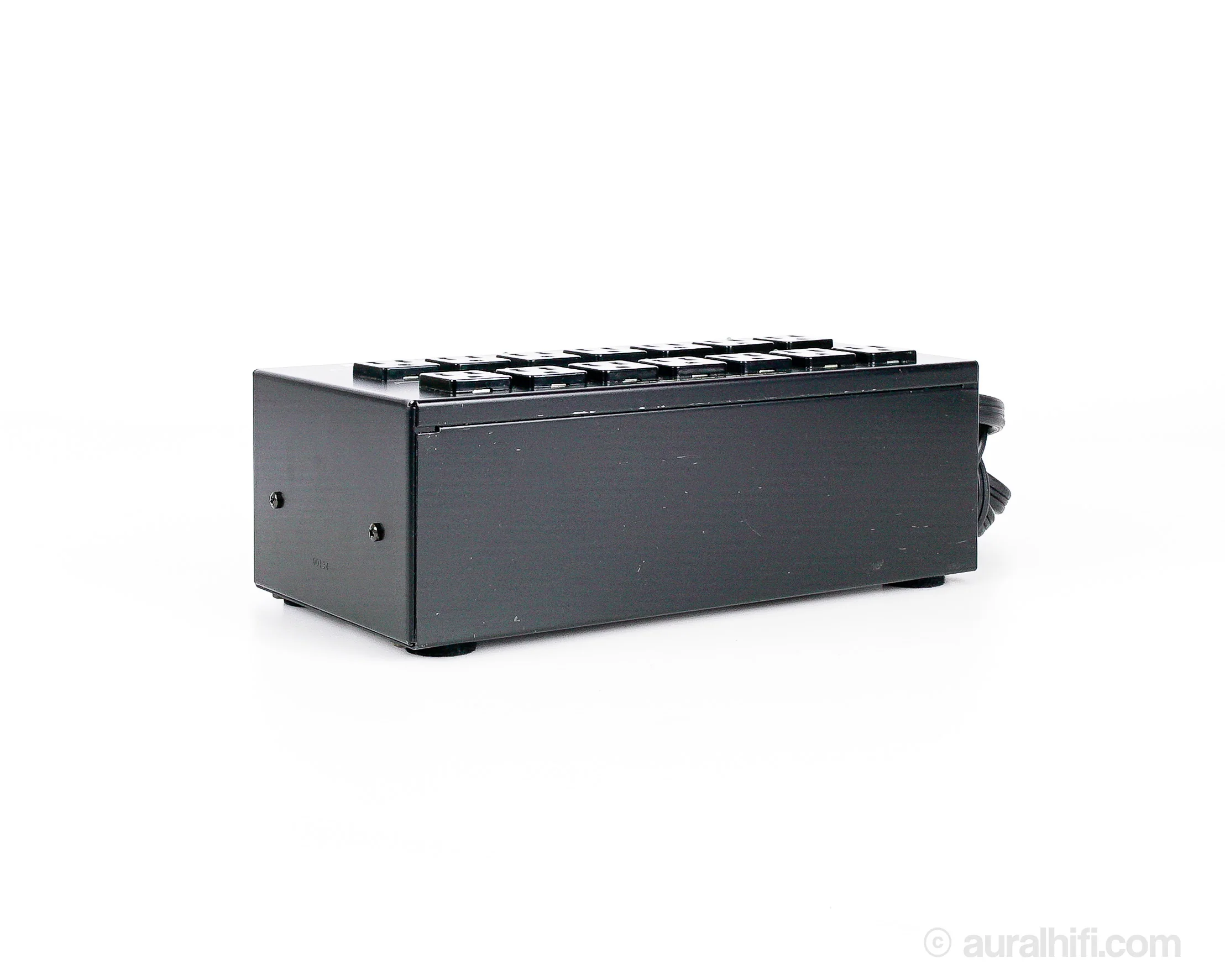

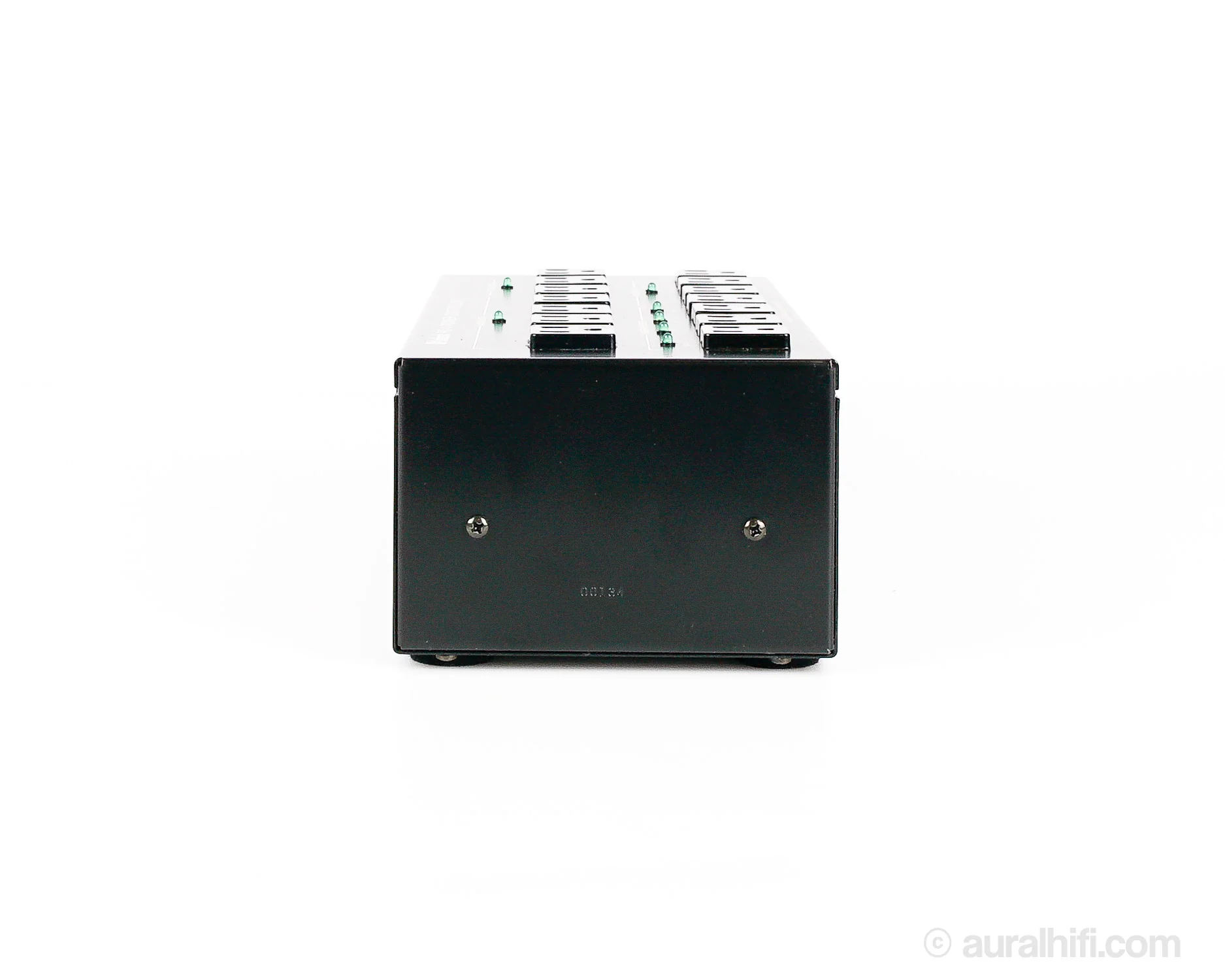

Vintage McIntosh PC-1 // 14 Outlet Sequential Power Controller GX1132

Excellent condition. Does what it says on the tin.

RESTORATIONS

• Comprehensive bench test
• Cleaned controls, switches, and internal electronics
• Exterior detailed

SPECS

Type   Power controller (power strip)

Outlets   14 (11 switched, 3 unswitched)

Individually Switched   4 outlets (labeled “POWER AMPLIFIERS”, “MAIN”, “2”, “3” and “4”), with separate indicator lights

Audio   5 switched outlets, with a single indicator light, which turn on as a group

Video   2 switched outlets, with a single indicator light, which turn on as a group

Unswitched   3 outlets always on, with a single indicator light

Maximum Power   1440 Watts, 12 Amps

Fault   Built-in surge protectors and RFI filtering

Mains   Flat, 6 foot, 3-prong, 14 AWG cord

Dimensions   11"W X 3.5"H X 5.25"D

Weight   5 lbs.

LINER NOTES

This Sequential Power Controller was designed to be used with the McIntosh CR 10 and CR 12 Remote Control Systems. A control cable for this AC power relay could; however, be wired for use with other equipment.
