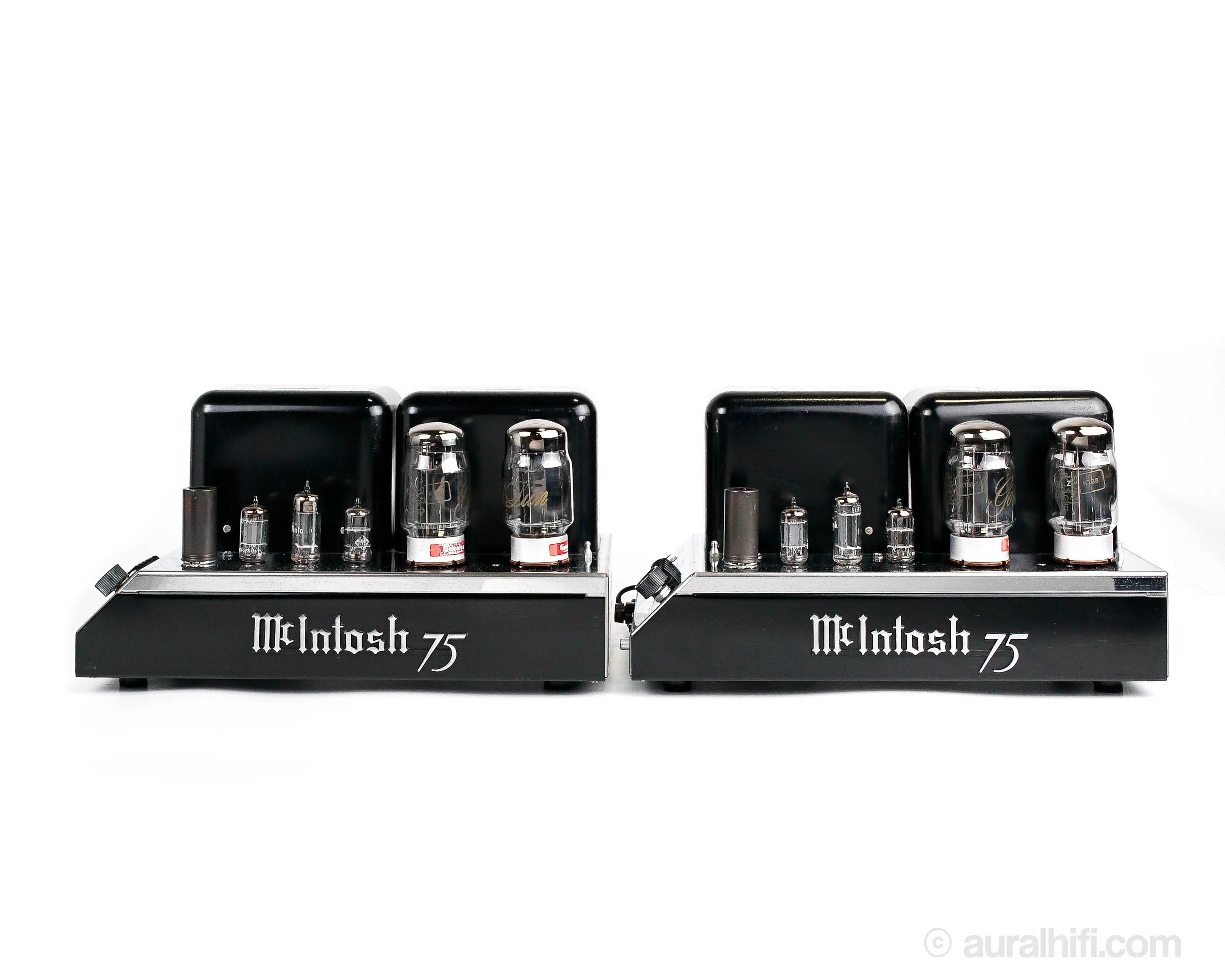

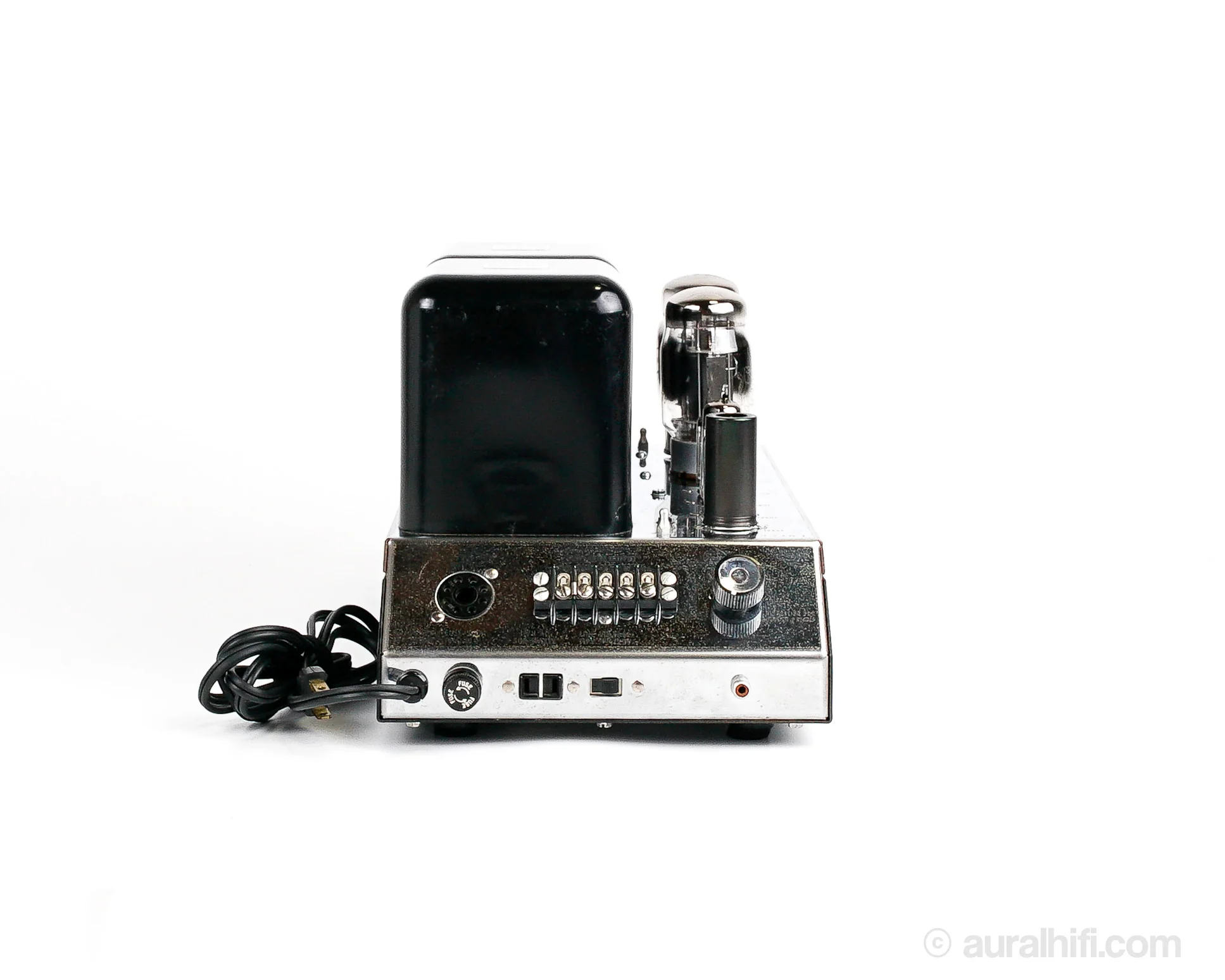

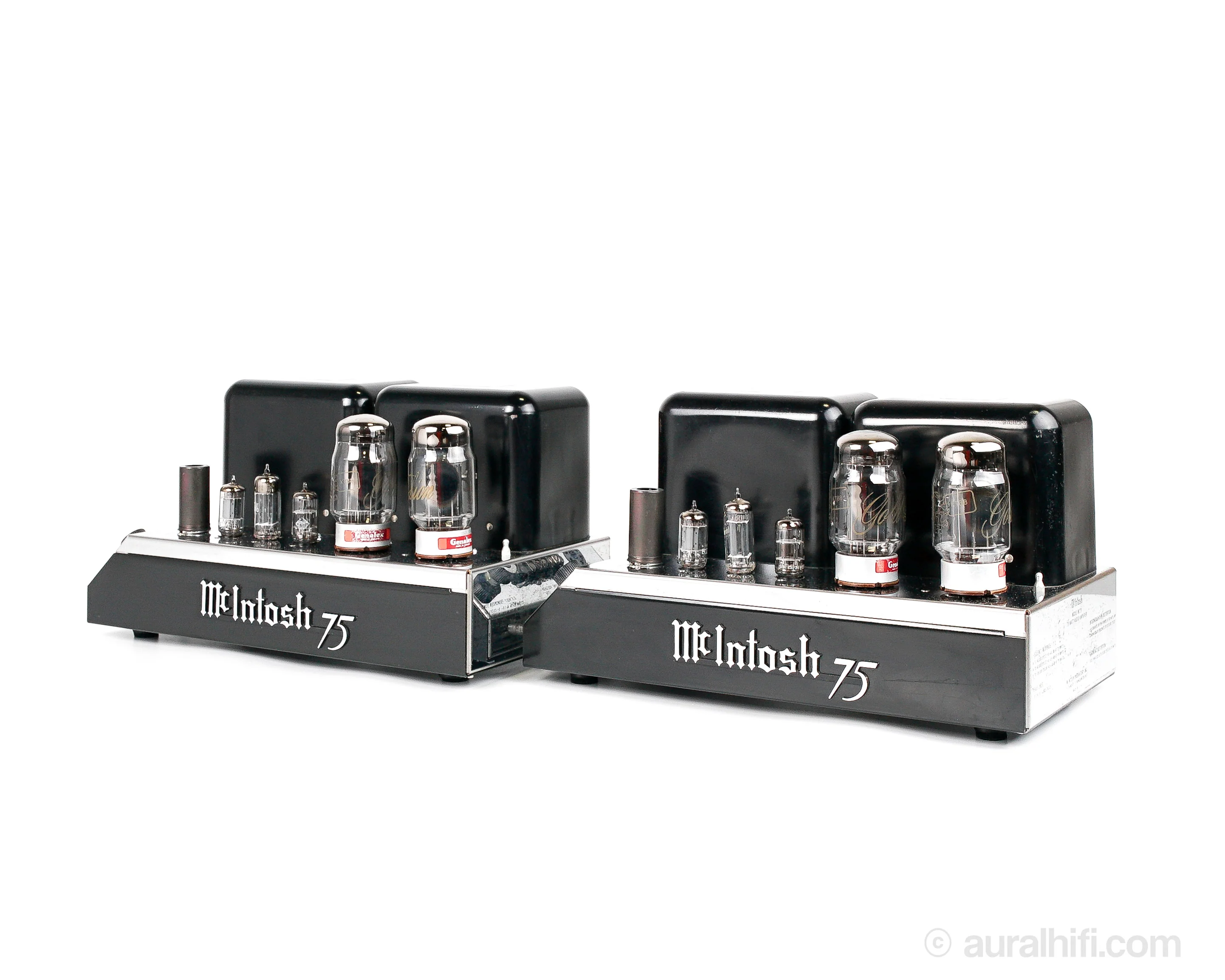

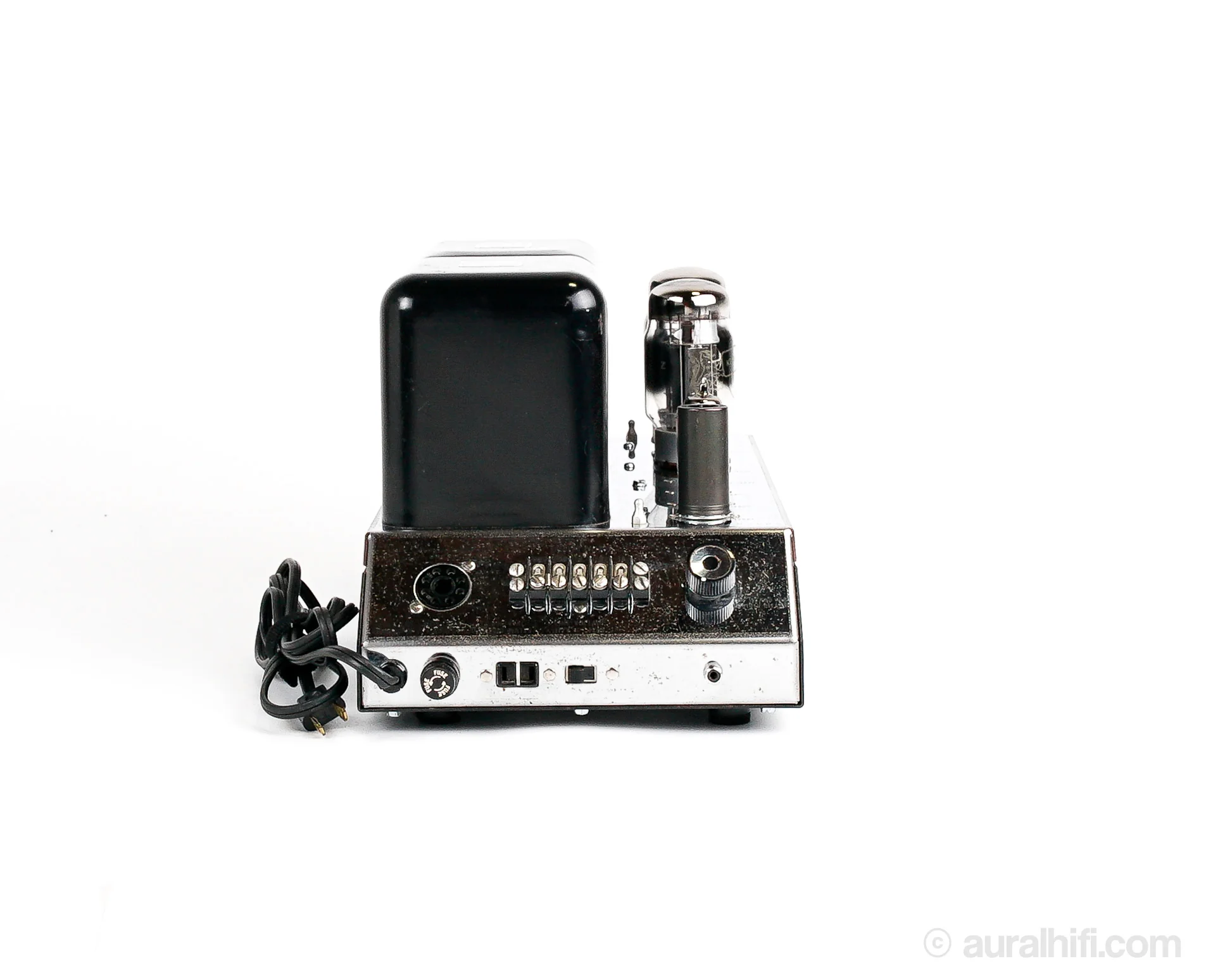

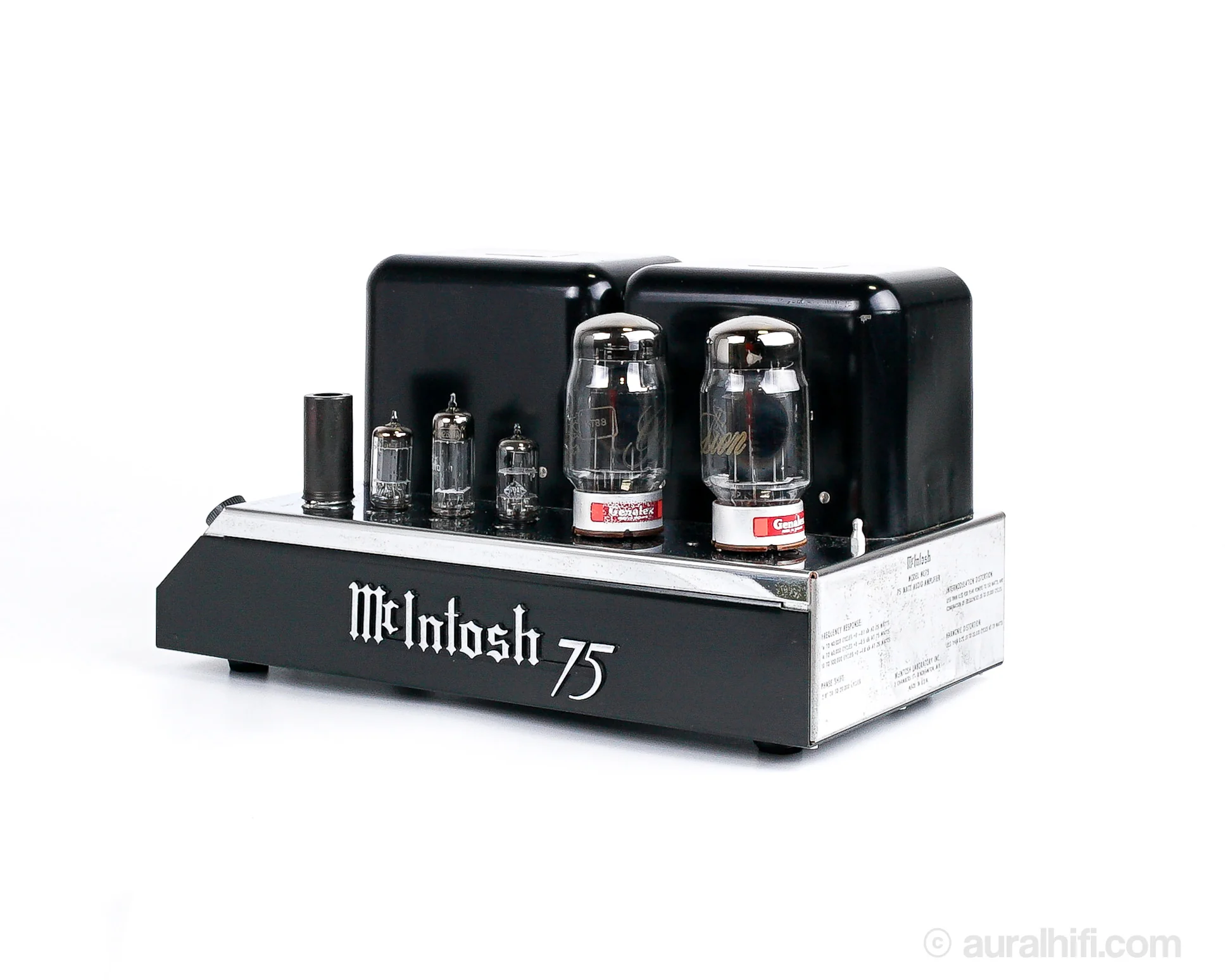

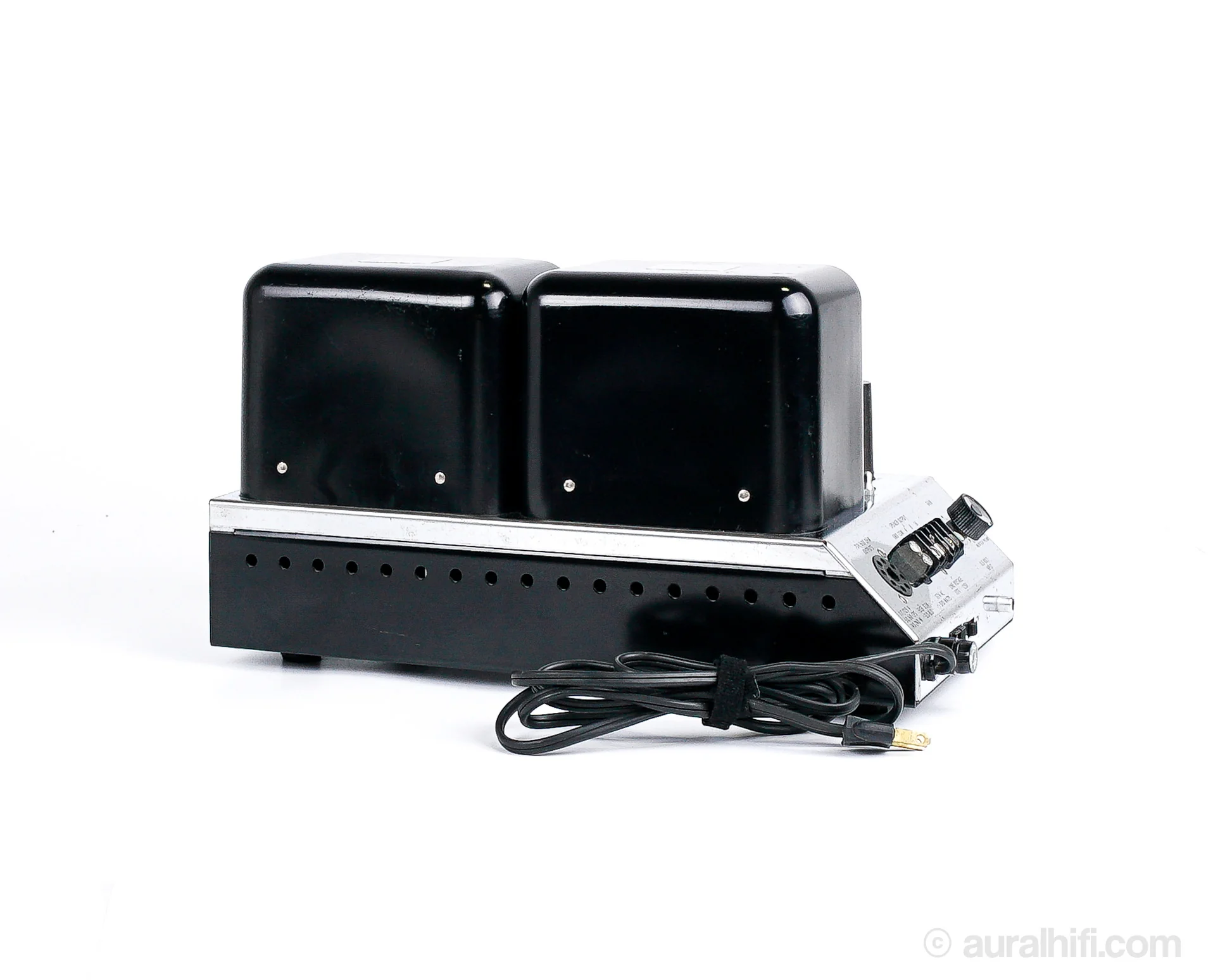

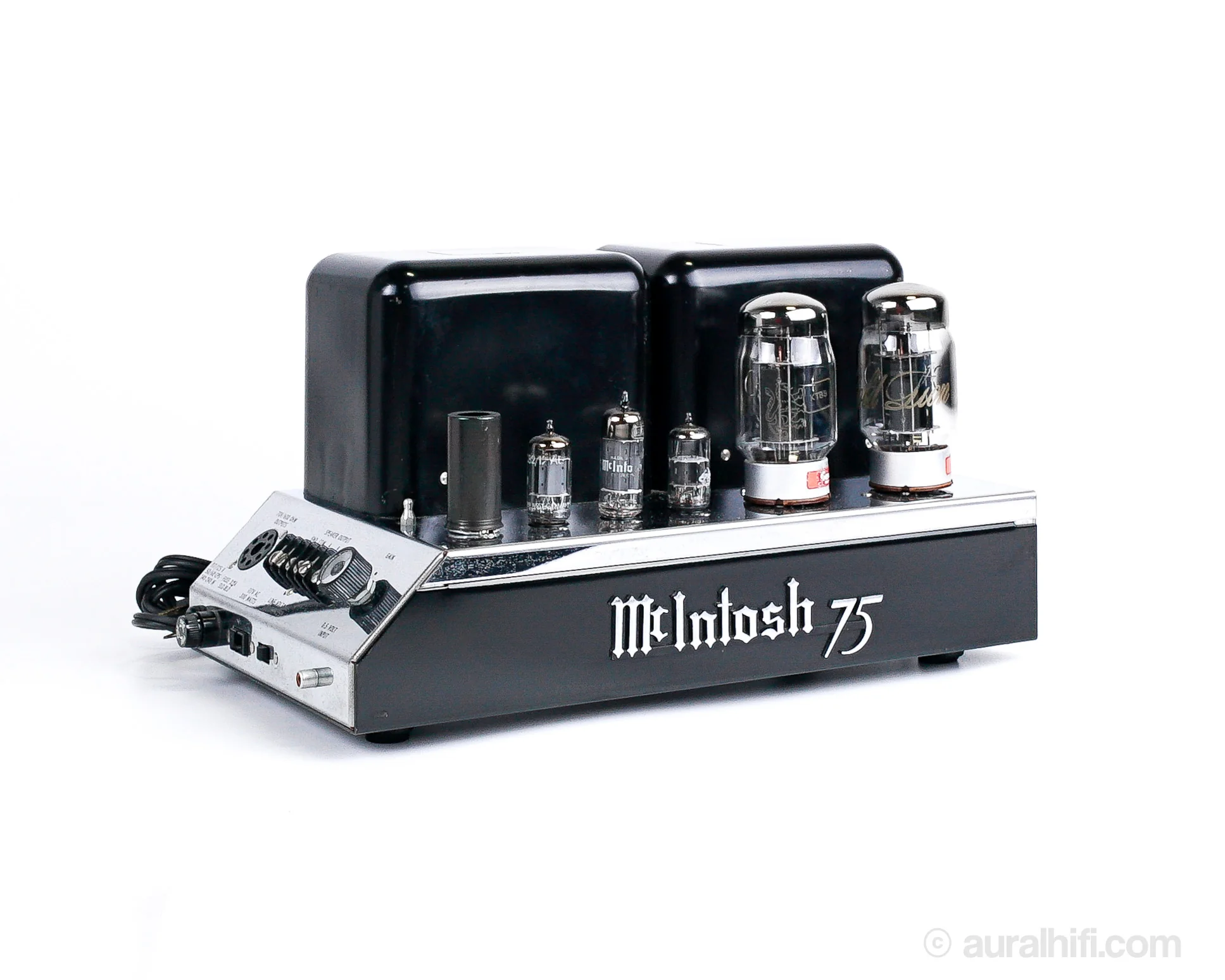

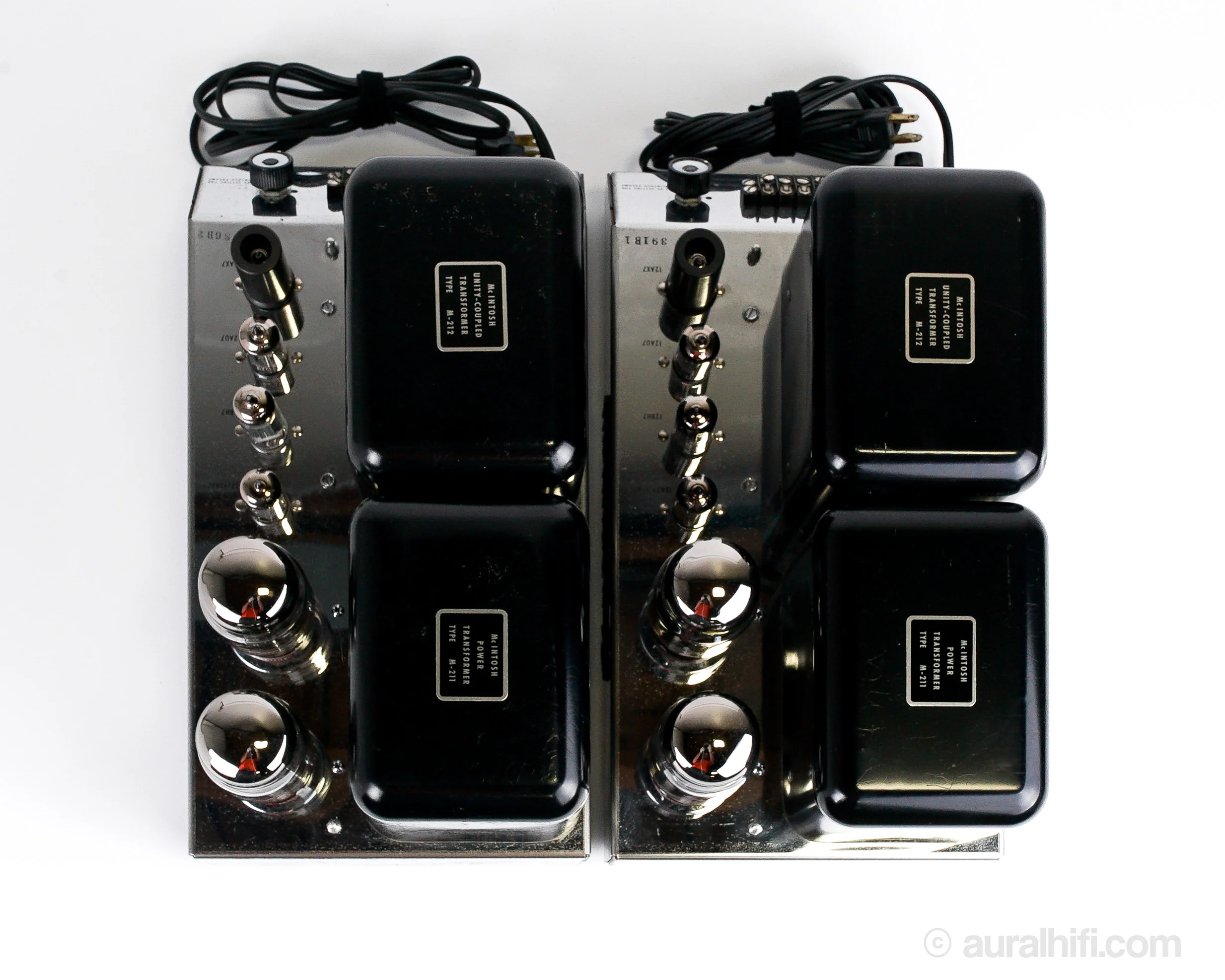

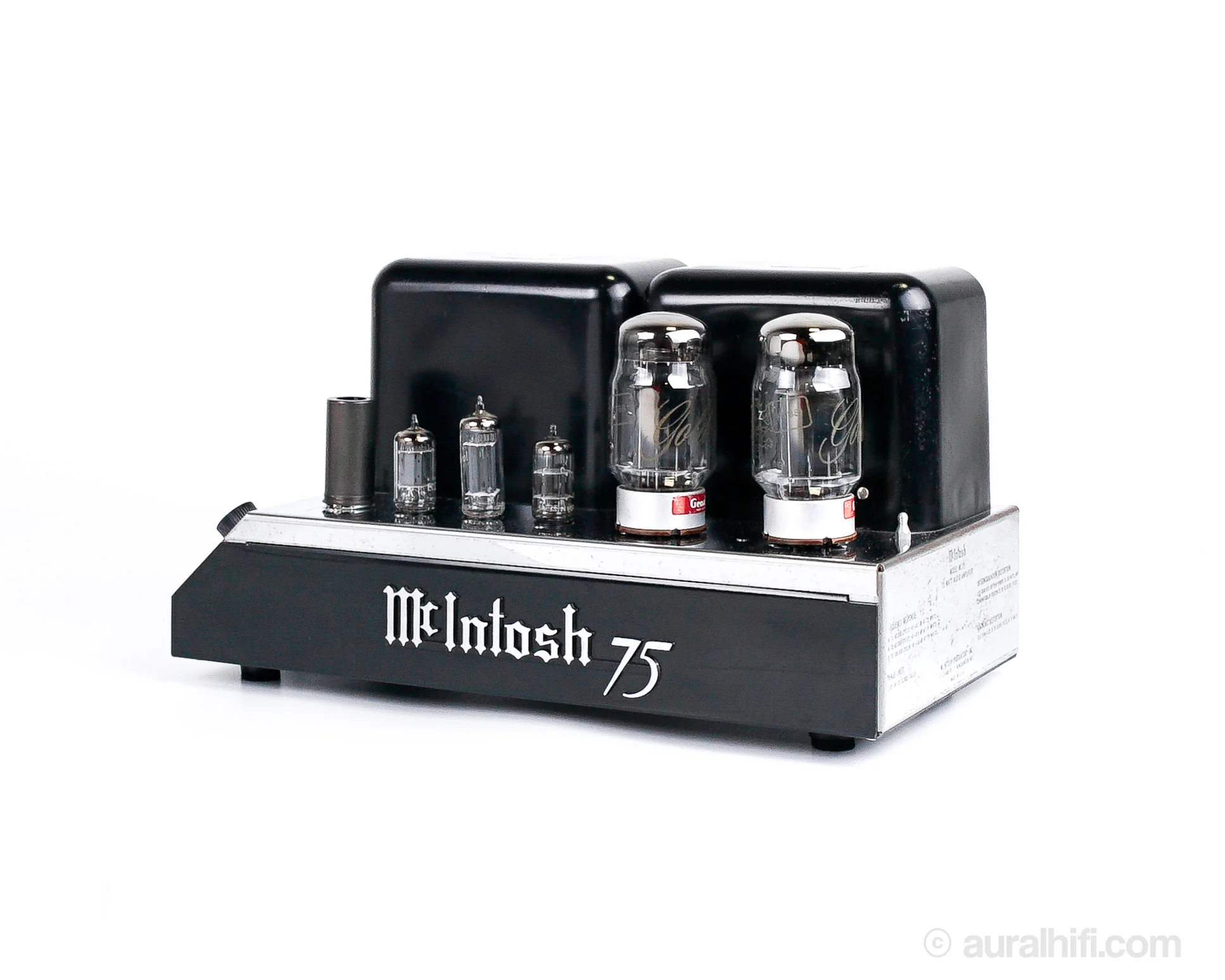

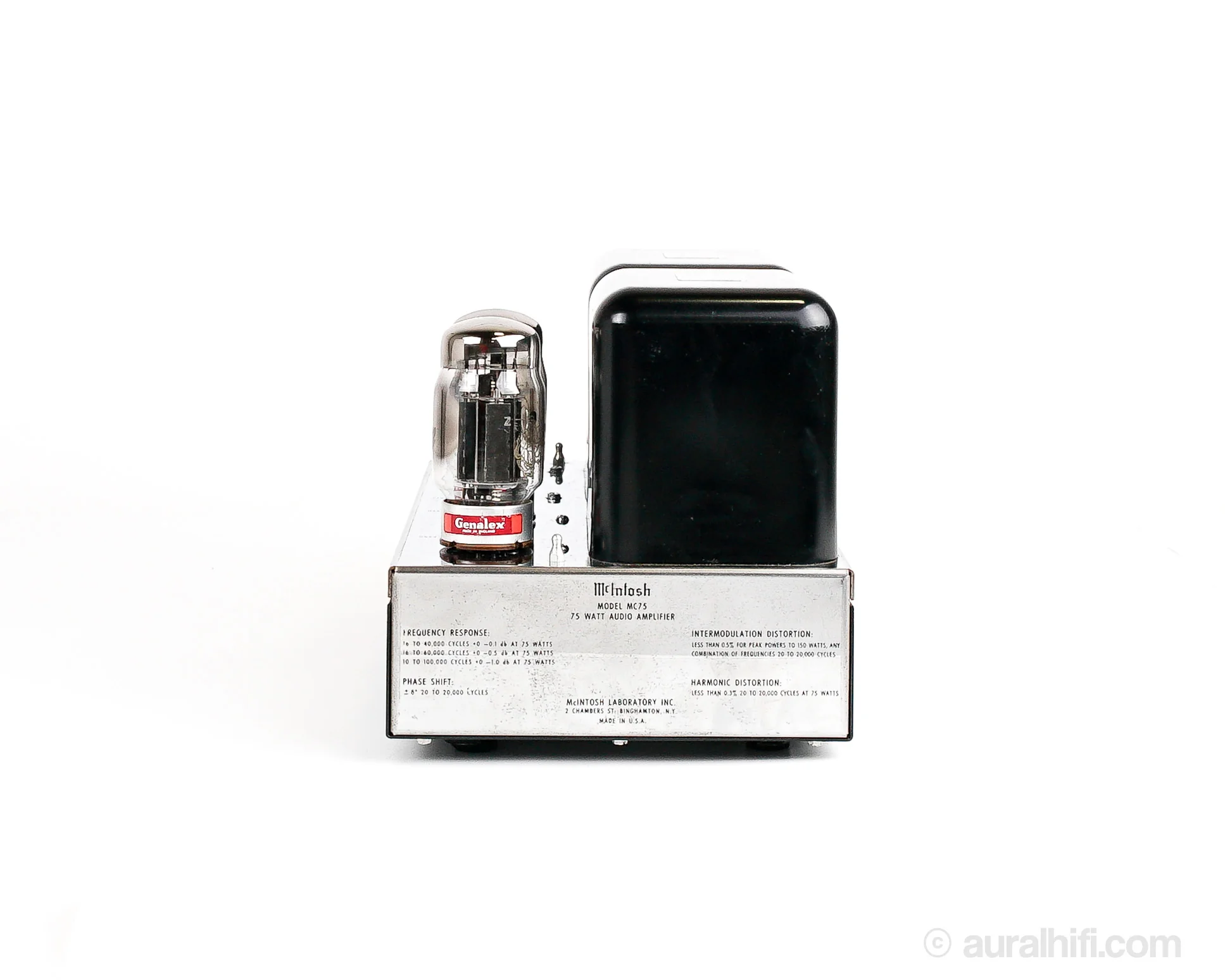

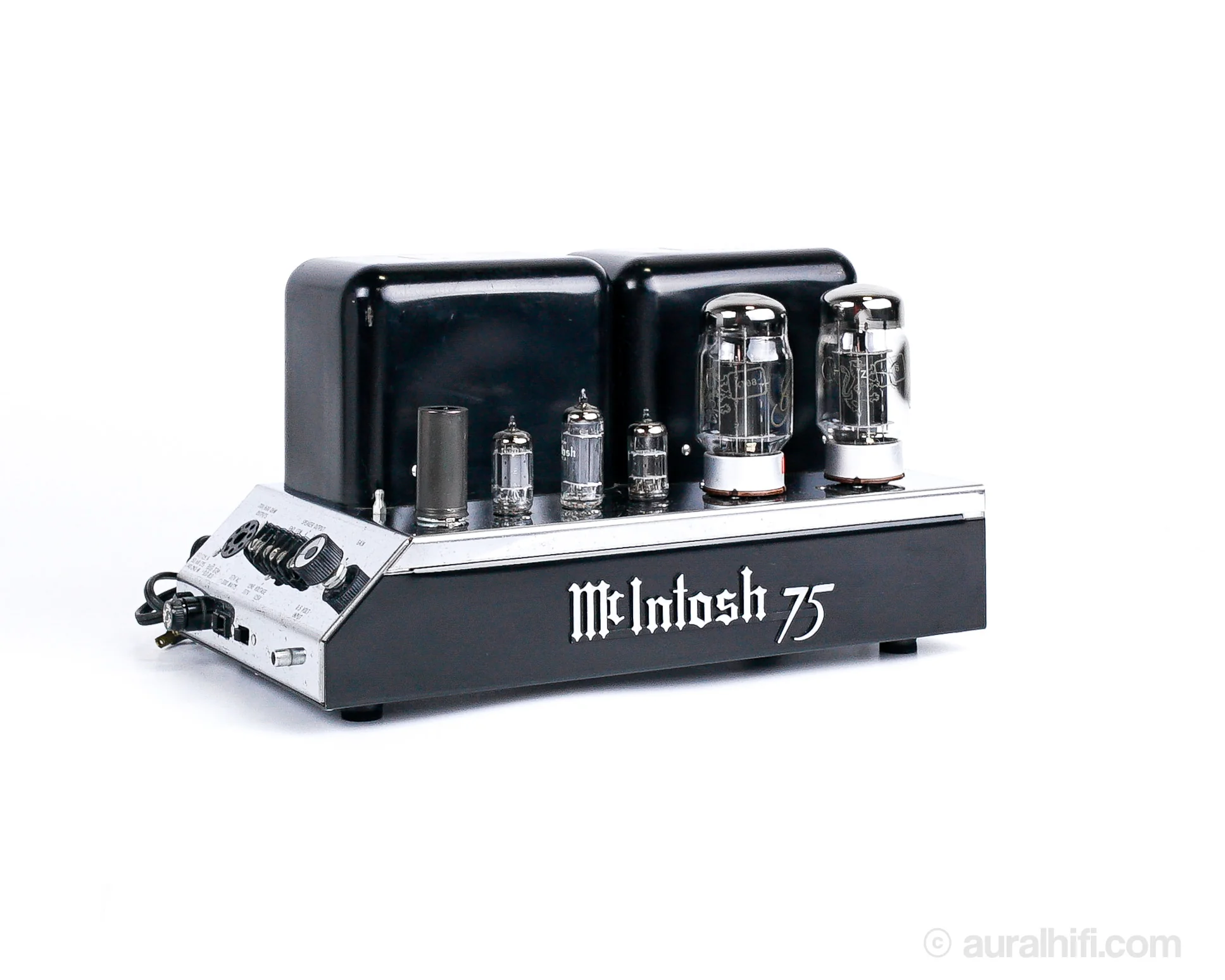

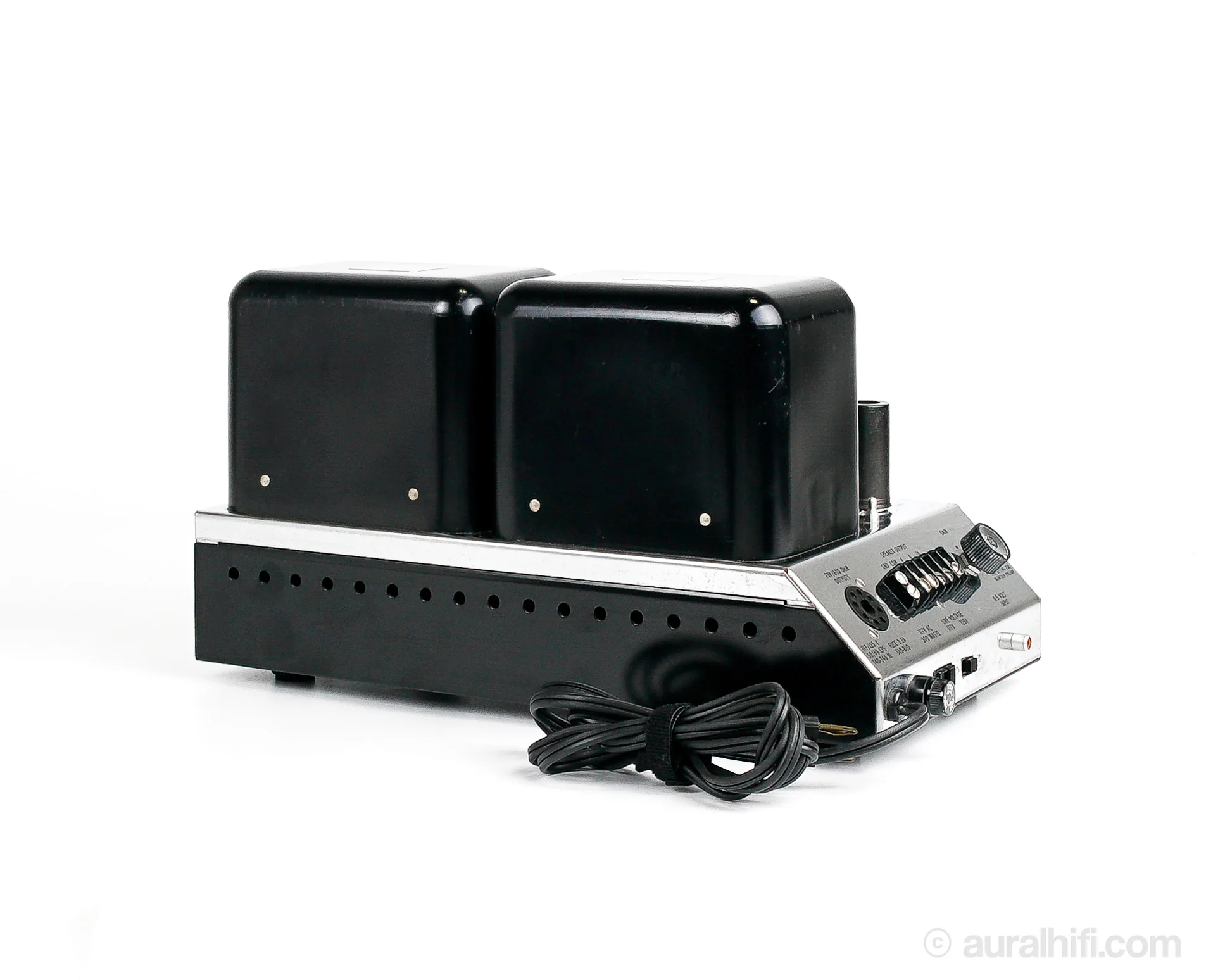

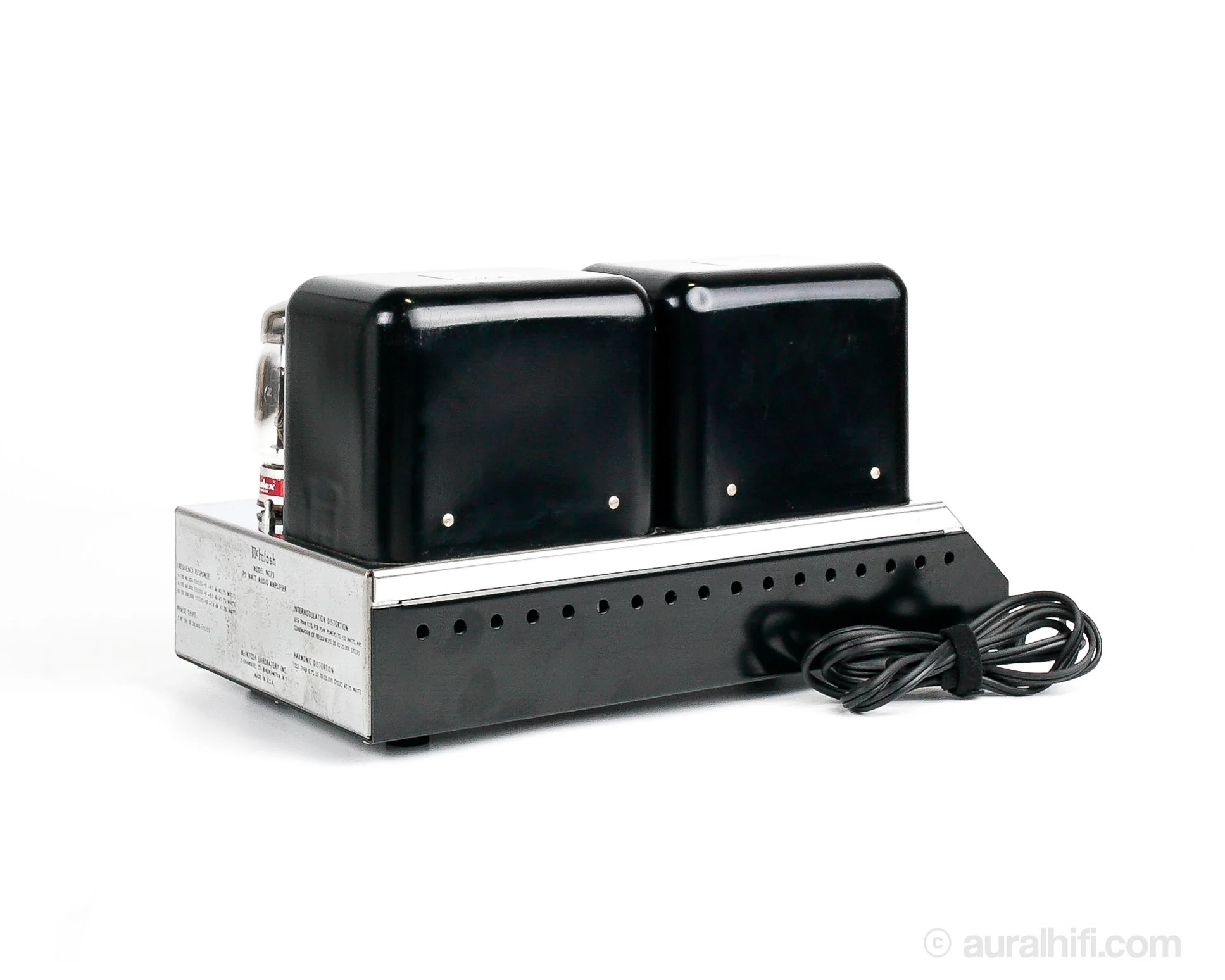

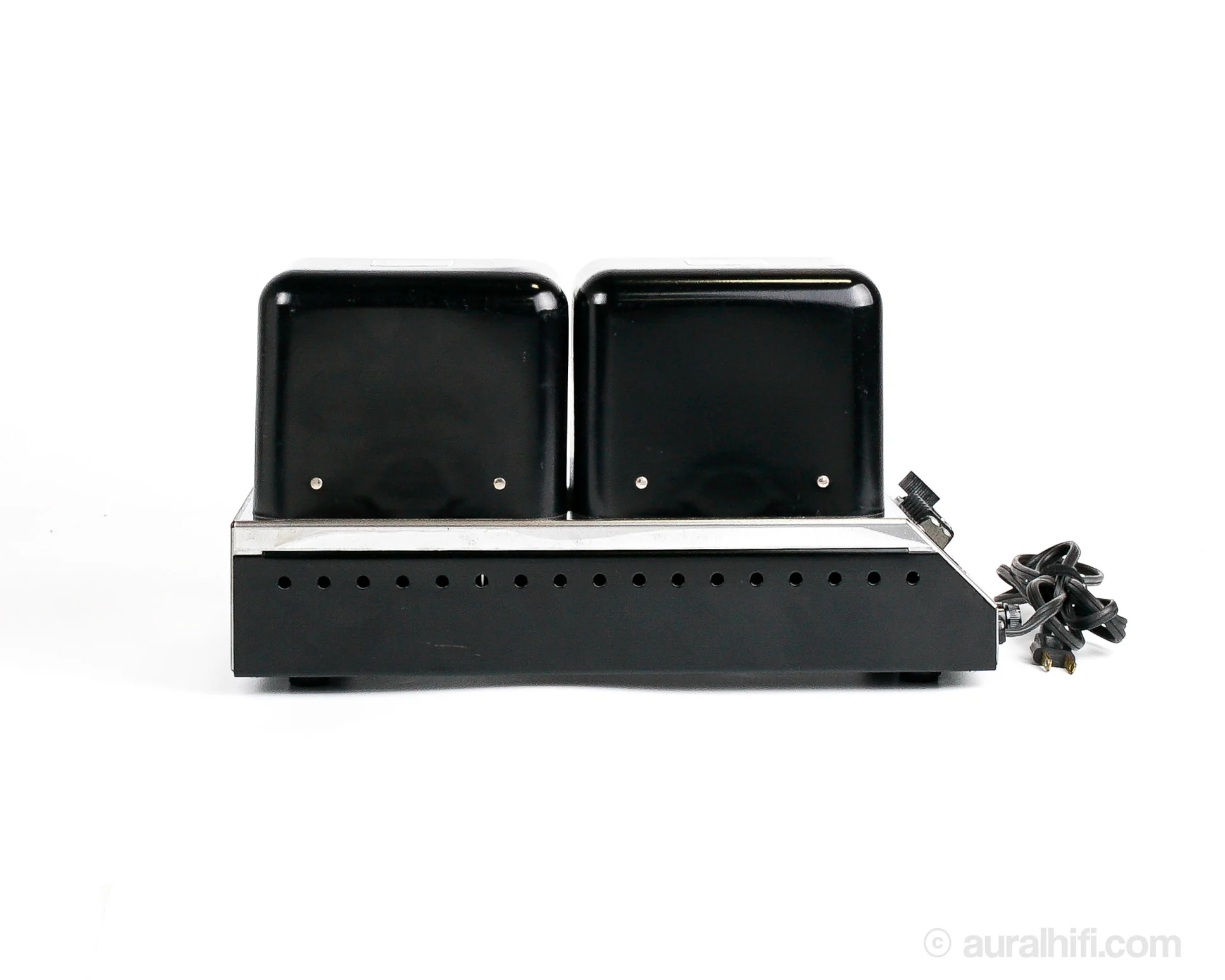

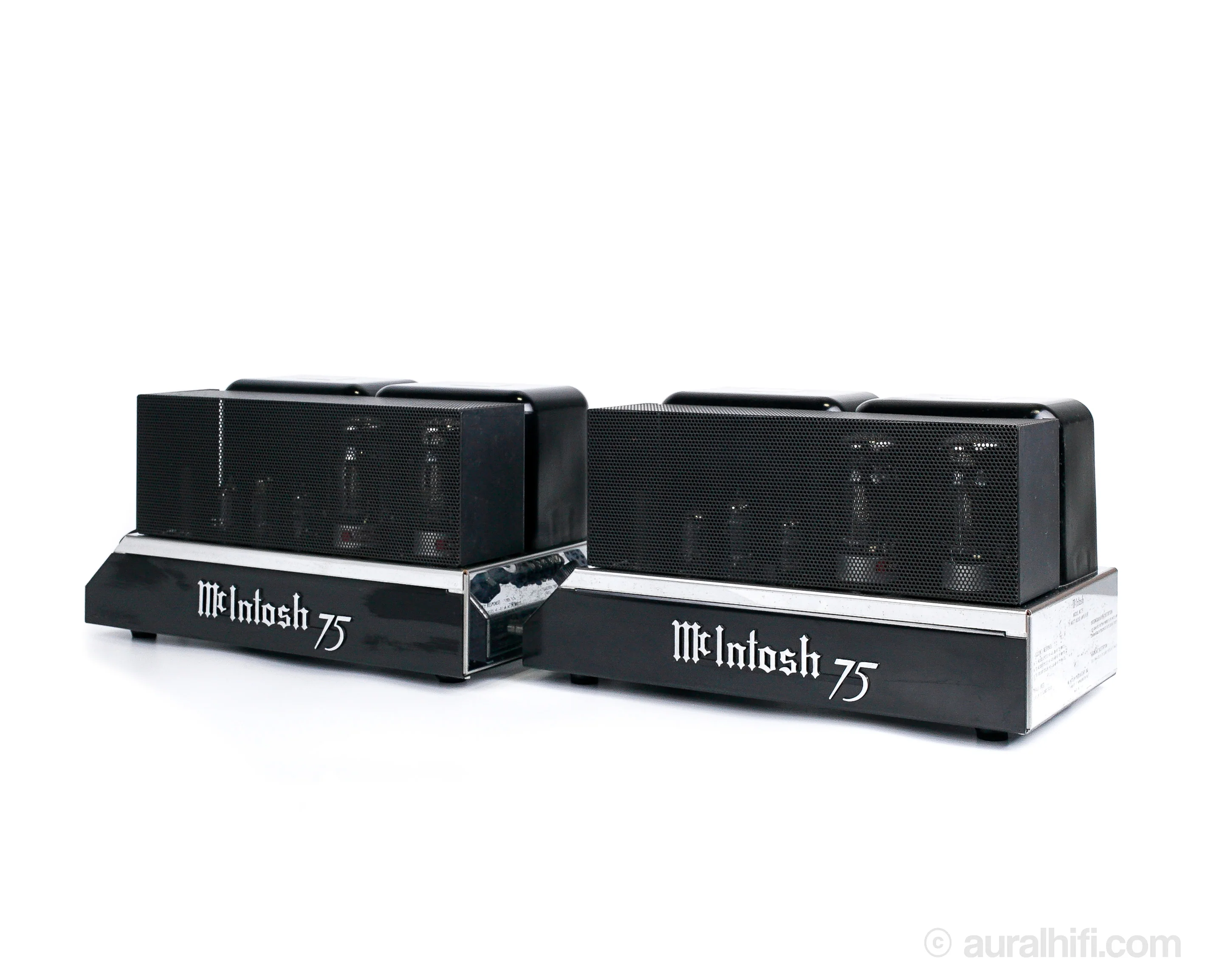

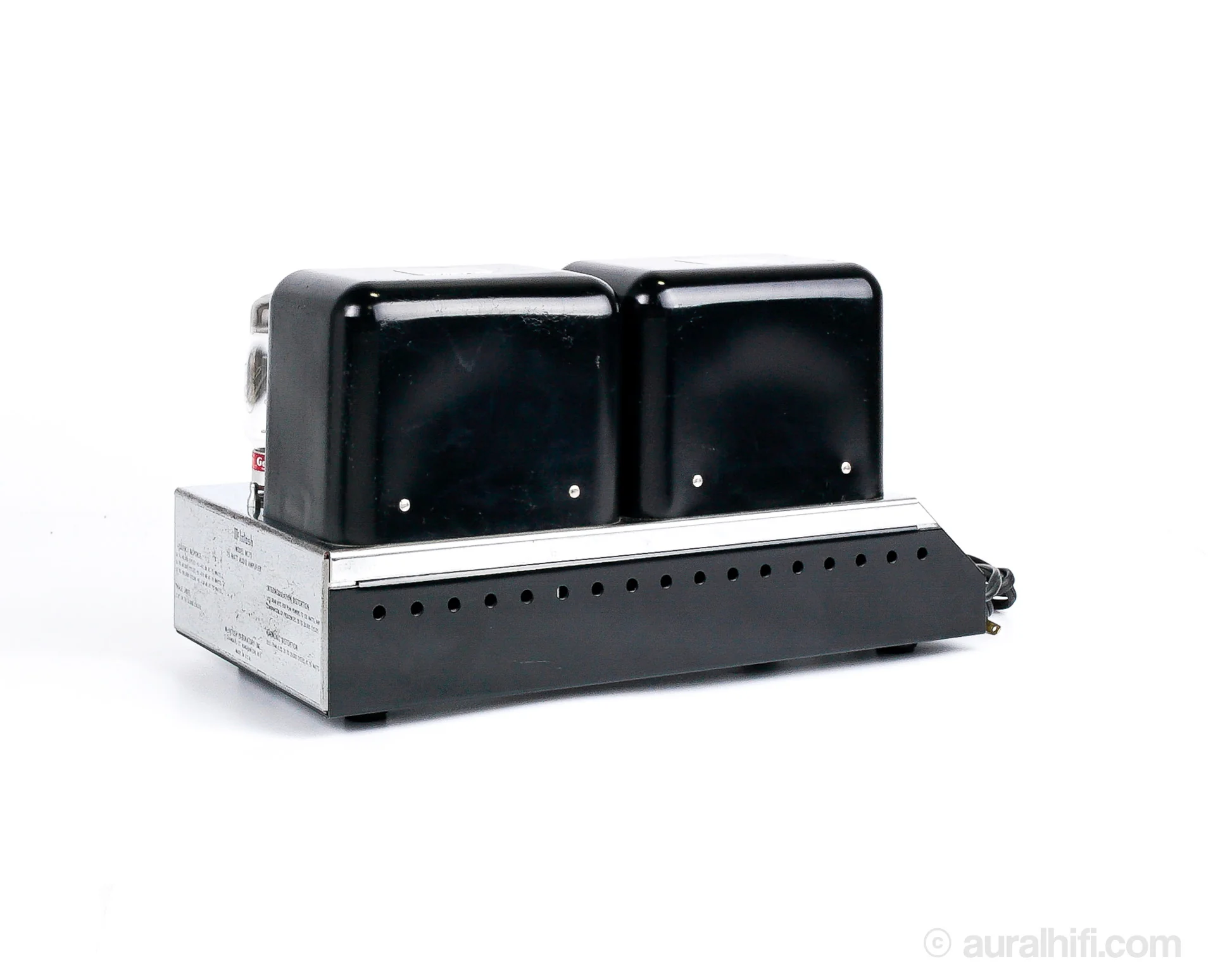

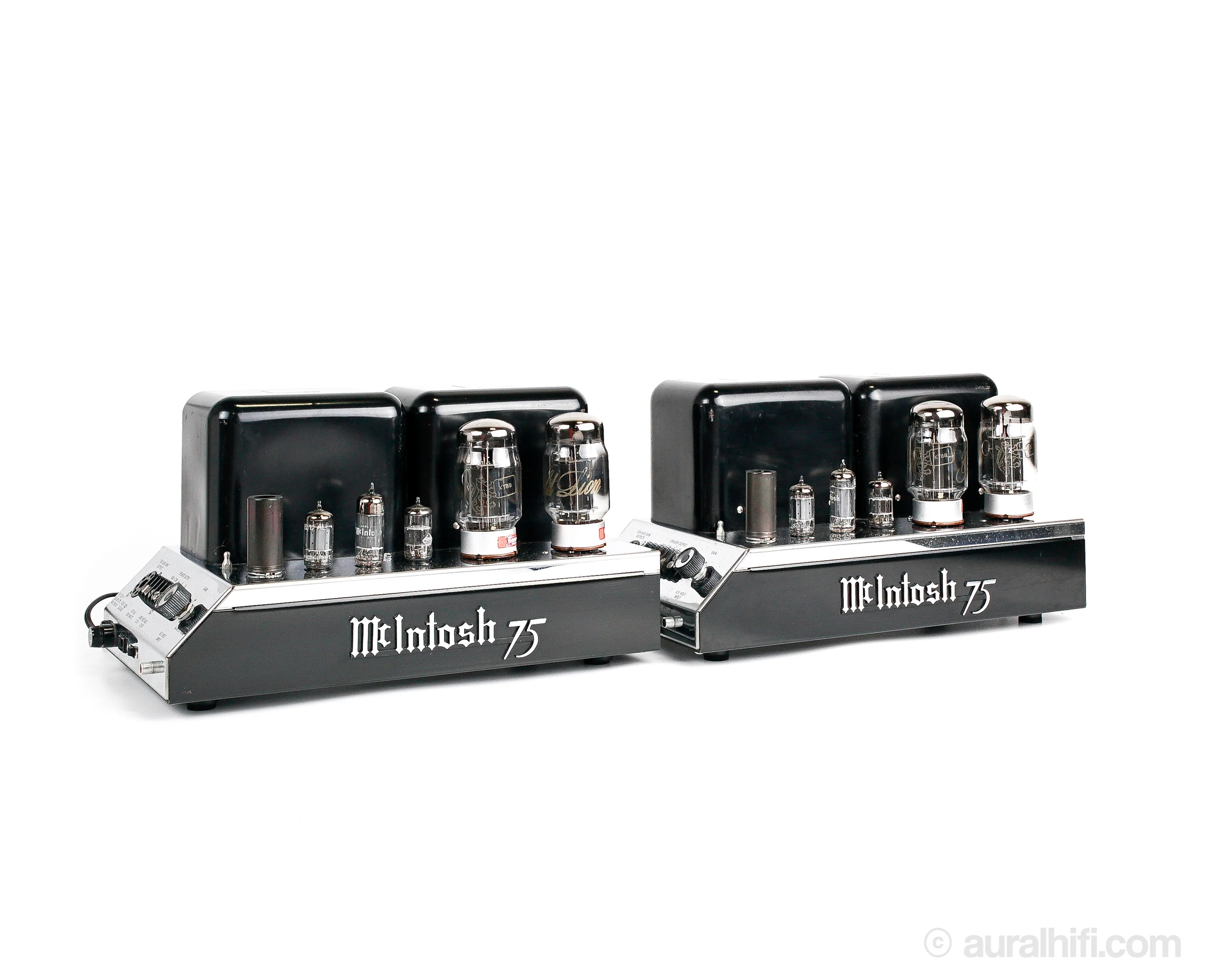

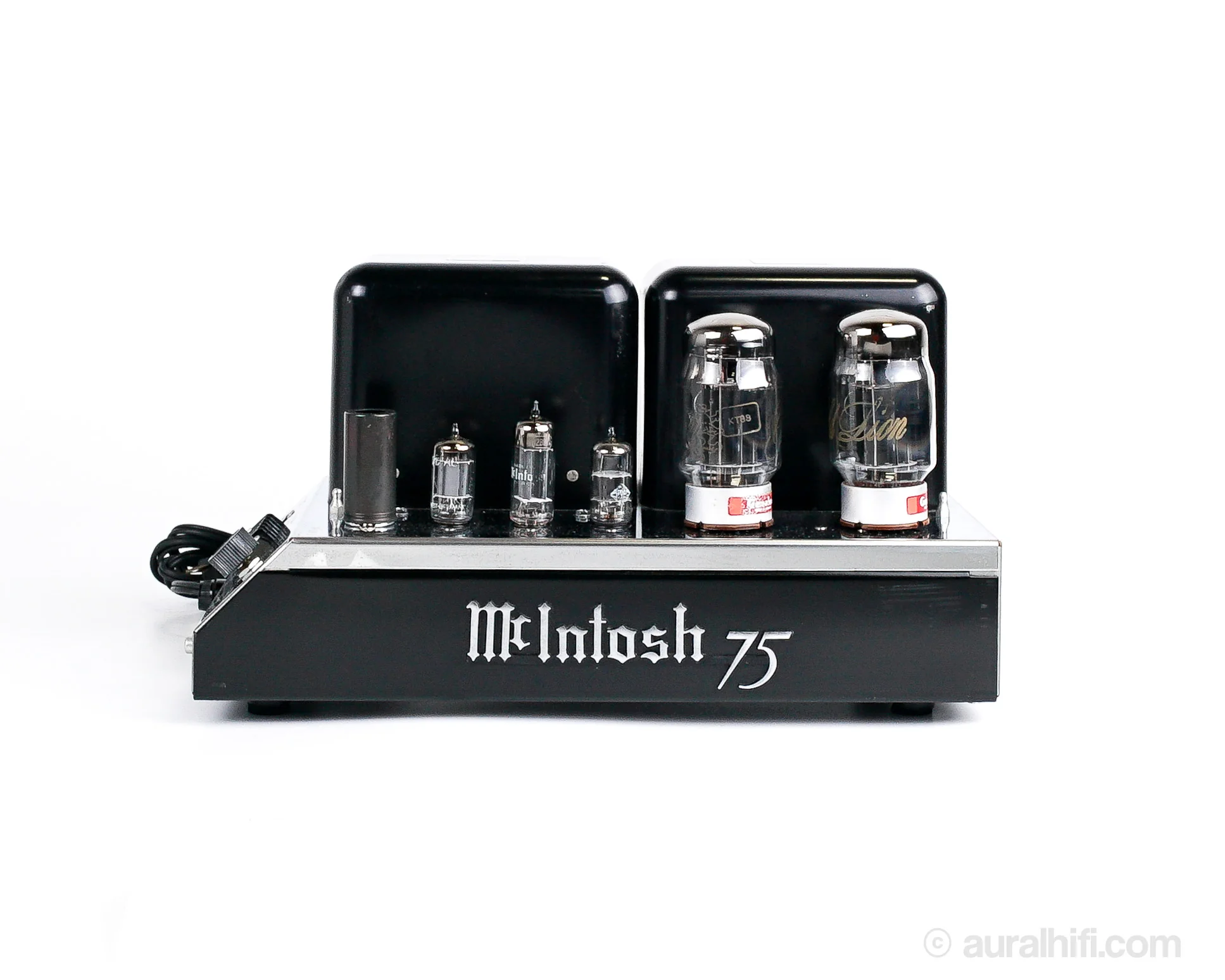

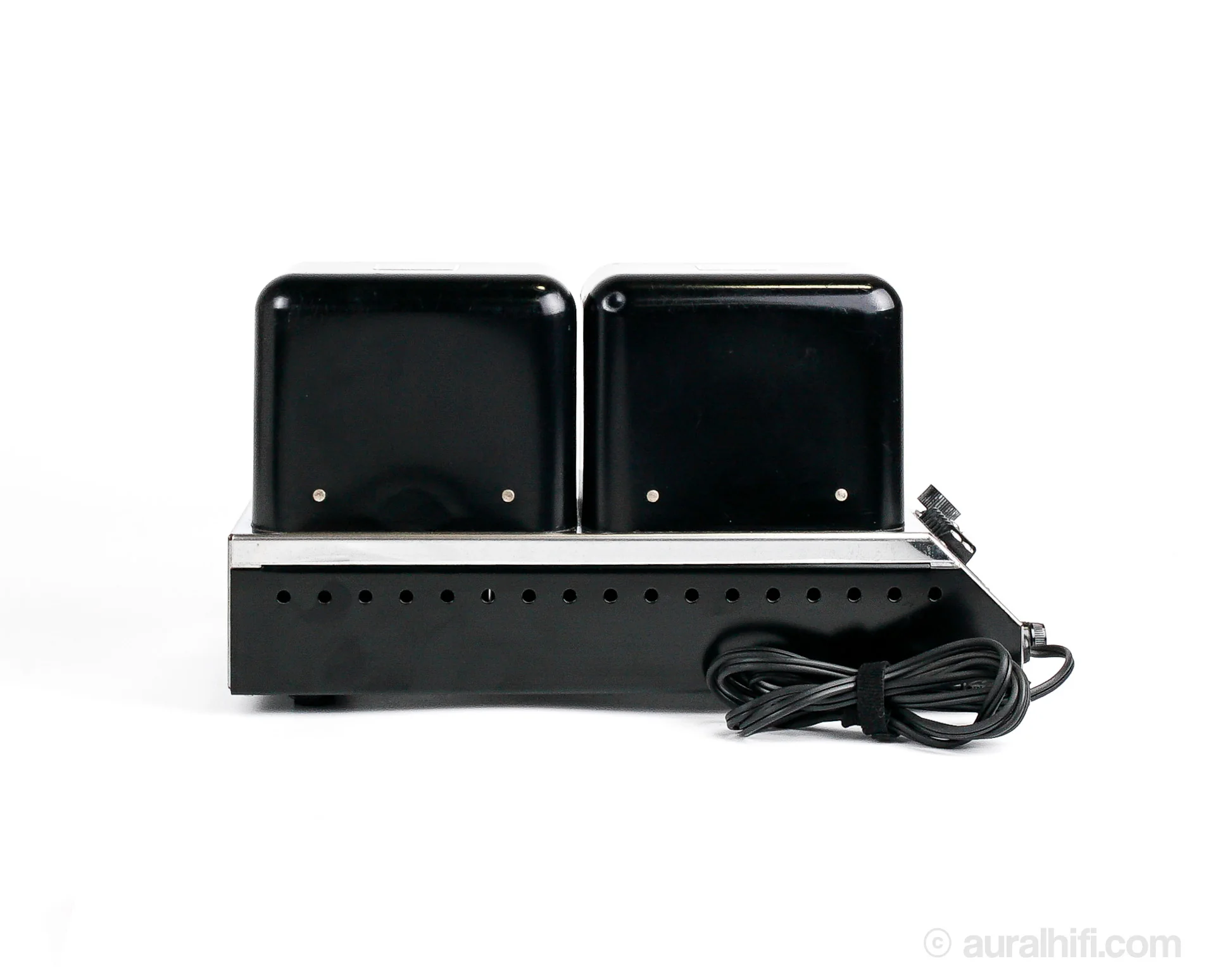

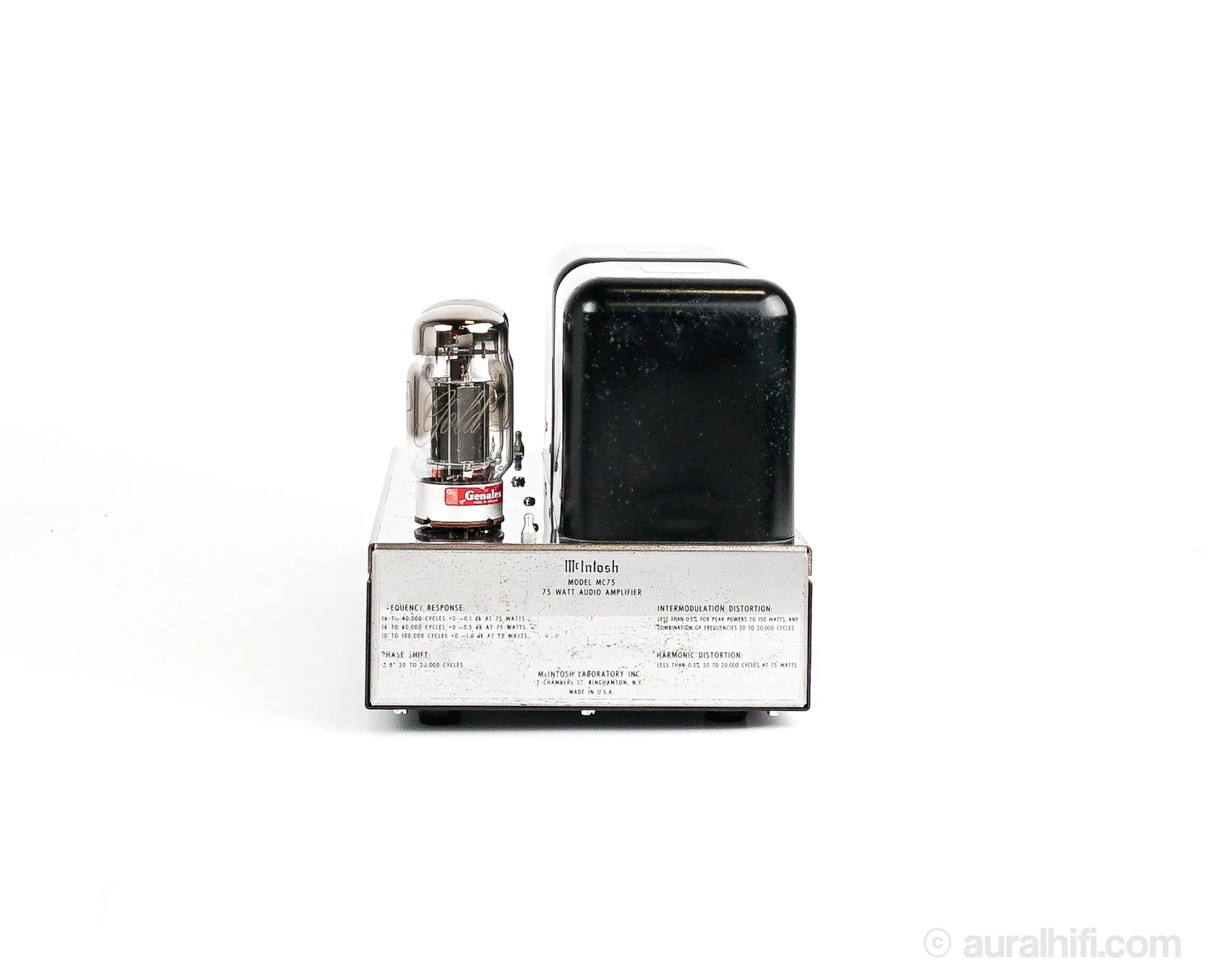

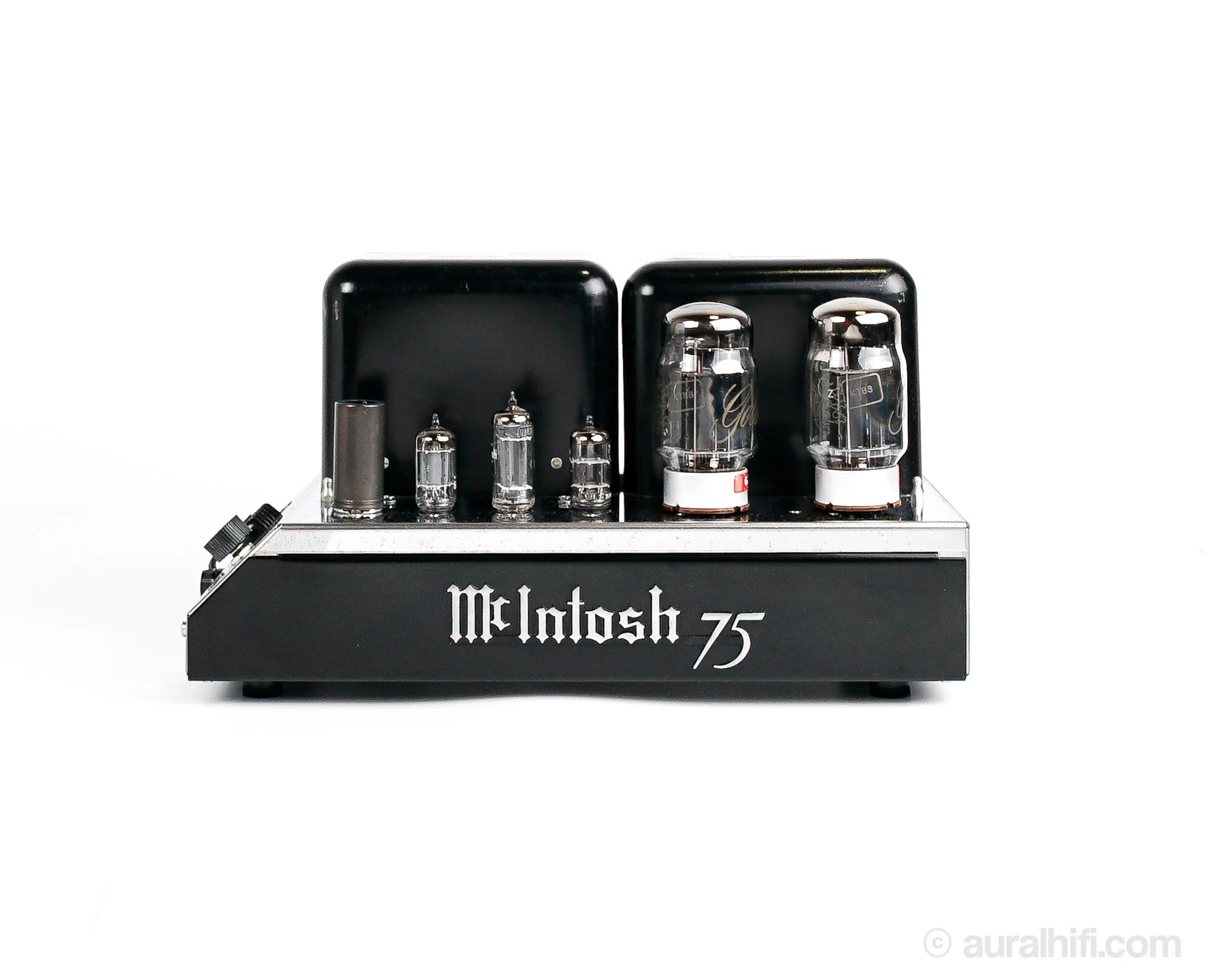

Vintage McIntosh MC75 Original // Tube Amplifier Monoblocks / Top Shelf Tubeset

The McIntosh MC75 is one of the most lauded amplifiers of all time. So good, in fact, that McIntosh resurrected this design, not once but twice. This pair rolled off the line in 1964, and despite the typical pitting and patina, these are some of the most sonically perfect MC75s we've had the pleasure to audition. Fully serviced, this pair includes a very nicely matched tubeset with Gold Lion output tubes. A rare chance to own a pair of audiophile history.

RESTORATIONS

• Full 30-point service check
• Rebuilt can capacitors
• Replaced all out of spec capacitors
• Cleaned controls, switches, and chassis

SPECS

Type   Vacuum tube power amplifier (mono pair)

Response   16-40kHz (+0 -0.1dB)

Distortion   0.5%

Noise & Hum   -90dB

Output Impedance   4, 8, 16, 67, 150 and 600 ohms; 600 ohm balanced to ground; 4, 8 and 16 ohms isolated from ground

Output Voltages   25, 70.7, 115 and 230V; 230V winding center tapped

Internal Impedance   less than 10% of rated impedance

Input Impedance   250k

Input Sensitivity   0.5V (2.0V with gain control switched at maximum)

Transformers   Unity Coupled

Tube Complement   2x KT88 (Gold Lion), 1x 12AX7 (Telefunken), 2x 12AU7 (Telefunken),1x 12BH7 (McIntosh); Identical tubesets in both amplifiers.

Rectifier   Solid state

Dimensions   8.25"H x 8.24"W x 16.75"D

Weight   44 lbs.
