Vintage Marantz SR 1000 // Solid-State Receiver / Fully Serviced / LED Upgrades

The Marantz SR 1000 signaled the end of an era,  but for you it can be the start of something great. This receiver is absolutely drop dead gorgeous in person, with its beautiful champagne faceplate and natural wood cabinet. This won't last long.

RESTORATIONS

• Full 30-point service check
• Installed LED lights
• Cleaned controls, switches, and chassis

SPECS

Type   Solid state stereo receiver

Tuning range   AM/FM

Power output   20 watts per channel into 8Ω (stereo)

Frequency response   15Hz to 40kHz

Total harmonic distortion   0.09%

Damping factor   36

Input sensitivity   2.7mV (MM), 160mV (line)

Signal to noise ratio   84dB (MM), 96dB (line)

Output   580mV (line)

Speaker load impedance   4Ω (minimum)

Semiconductors   7x IC, 8x transistors, 13x diodes, 1x FET

Dimensions   18.3"W x 6.1"H x 13.4"D

Weight   16 lbs.

LINER NOTES

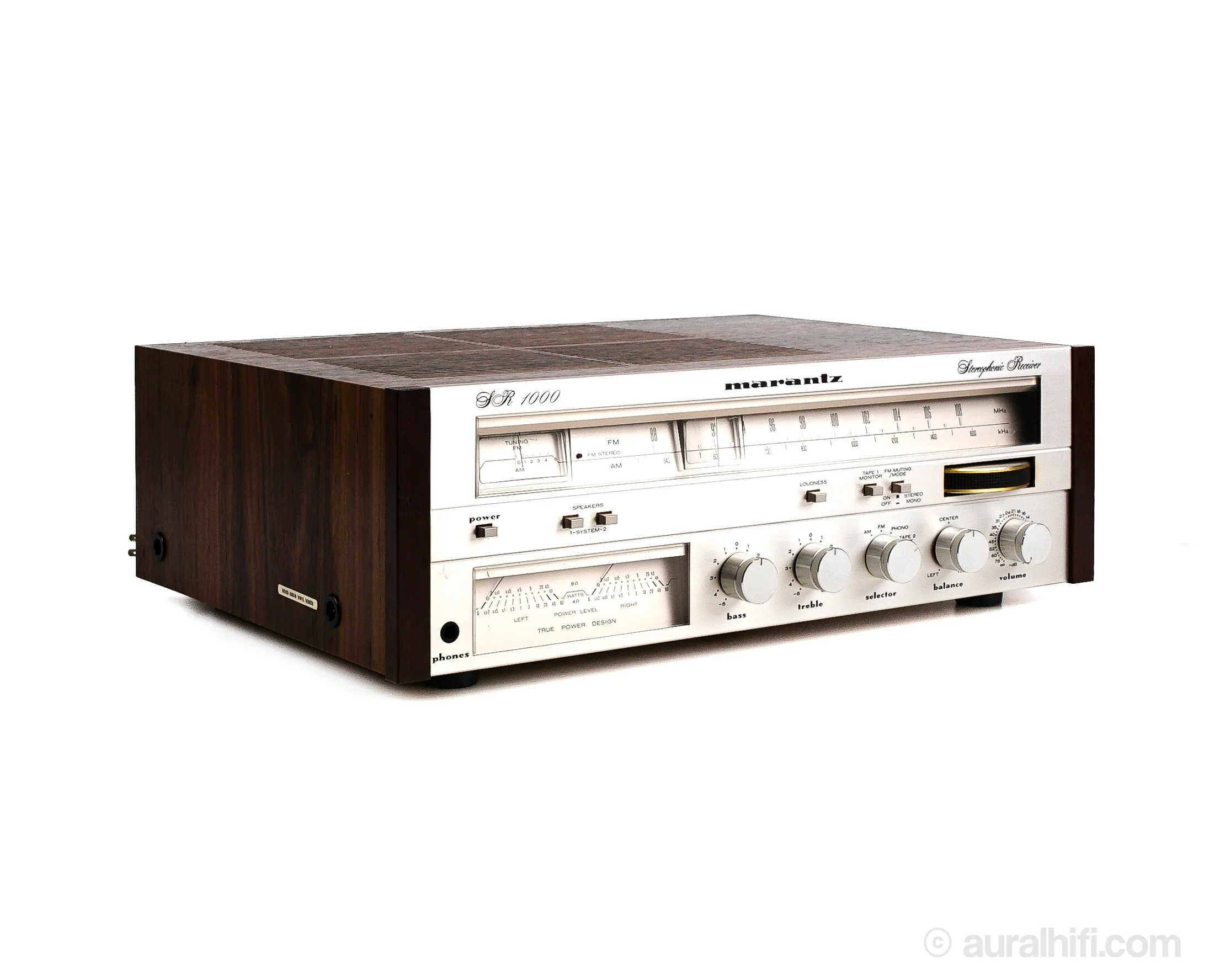

Superscope sold the Marantz brand to Philips Electronics in 1980, so the SR line, made in Japan, may be the first one produced under Philips although most of the design must have occurred under Superscope. It still has the classic Marantz look with the silver face and Marantz gyro touch tuning wheel. The SR line has an interesting dial indicator in which the pointer is part of a larger clear plastic square. It has treble and bass tone controls, loudness and muting buttons and a headphone jack.
