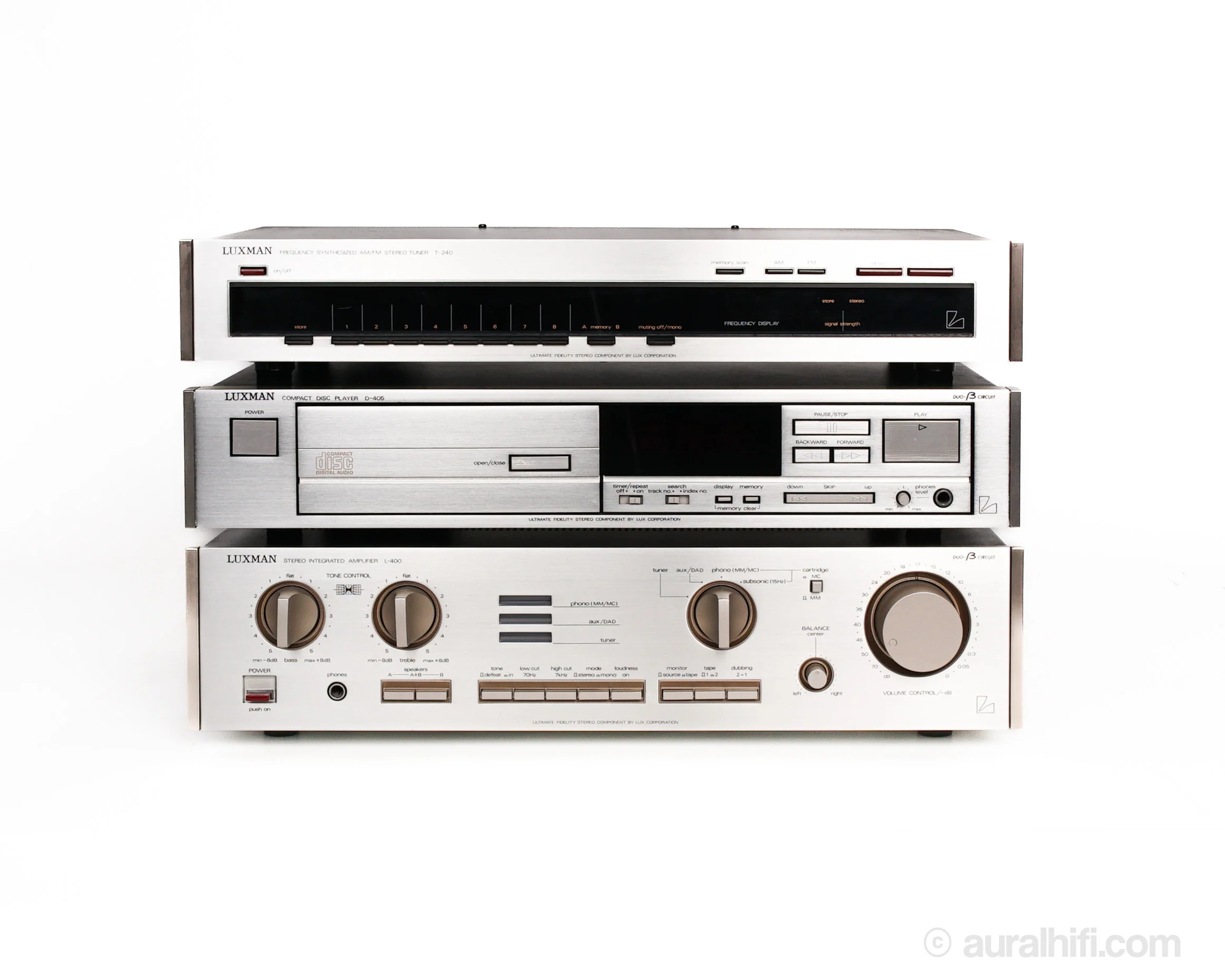

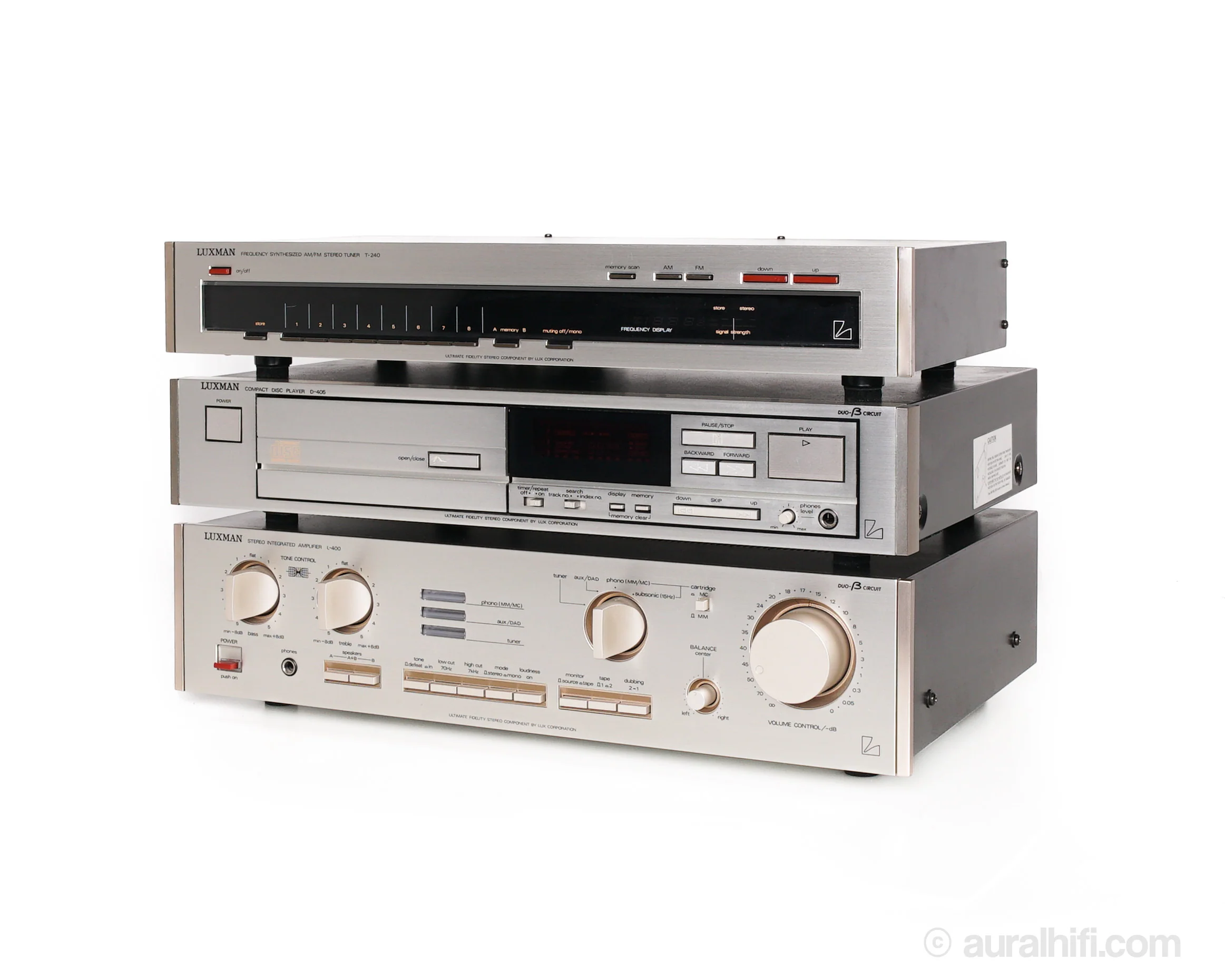

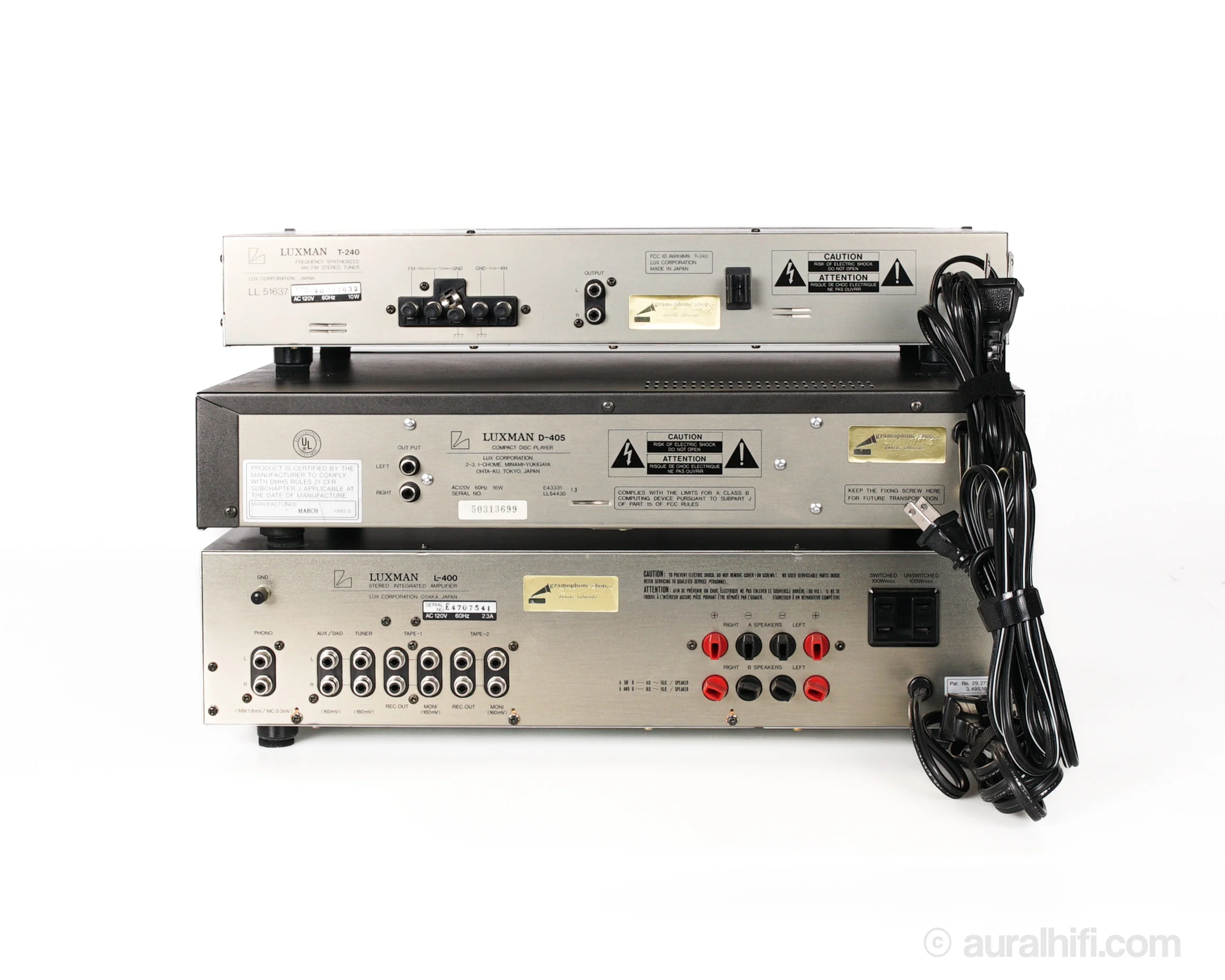

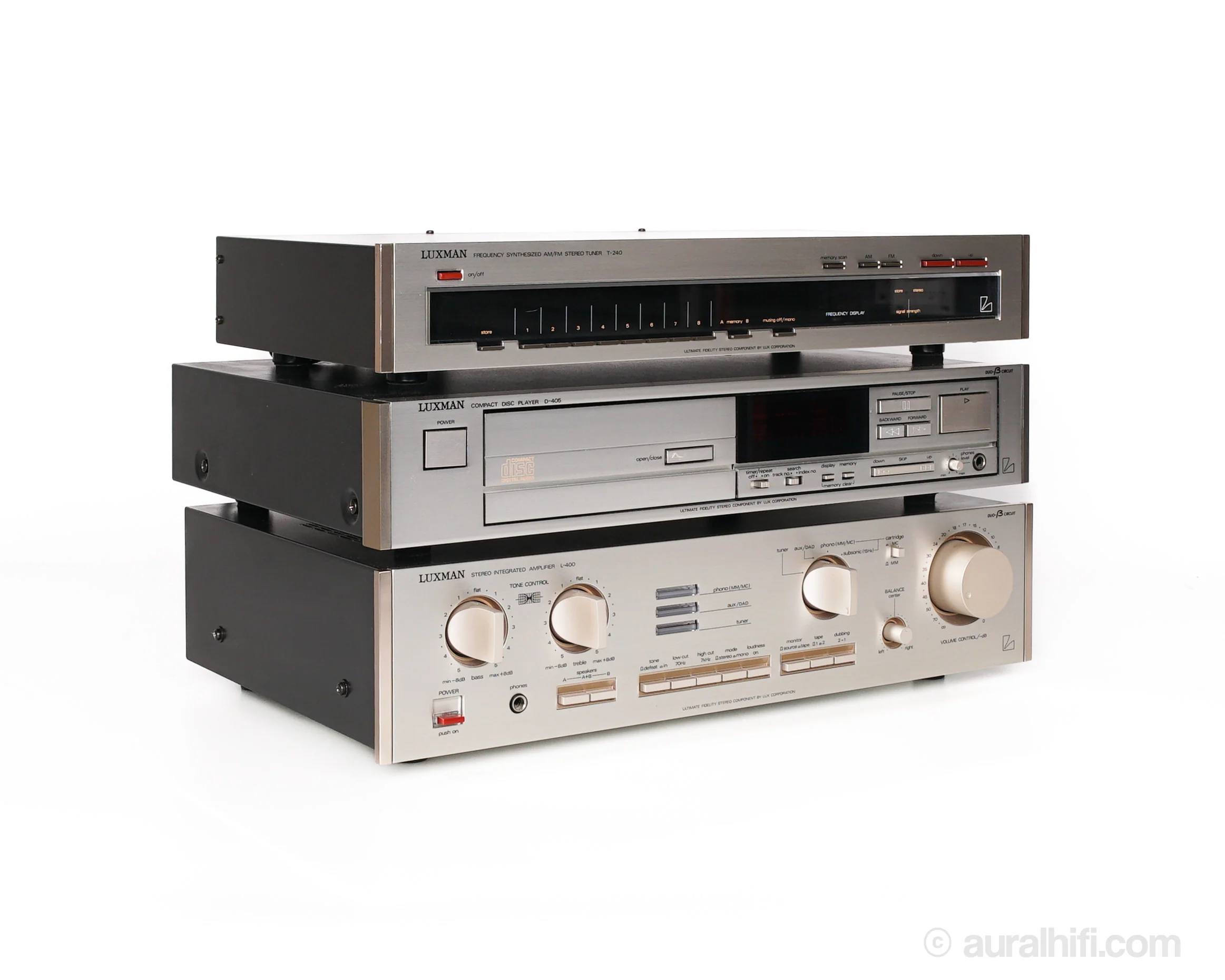

Vintage Luxman System // Set / L400 Amplifier / D405 CD Player / T240 Tuner

Easily one of our favorite vintage brands, Luxman is known for quality, particularly fit and finish. This complete system from 1985 is perhaps the perfect blend of form and function. For this bundle, we start with the collectible L-400 solid state amplifier, add the sleek T-240 tuner, and finish with the excellent D-405 CD player. Each of these pieces has been fully tested, and we of course resolved the handful of issues we found. Gorgeous single-owner stack.

RESTORATIONS

• Comprehensive bench test
• Replaced bad capacitors in amplifier power supply and signal path
• Replaced bad diodes in amplifier display circuit
• Replaced lamps in amplifier
• Replaced CD tray belt
• Cleaned CD laser lens
• Adjusted CD tracking
• Cleaned controls, switches, and internal electronics
• Exterior detailed

SPECS

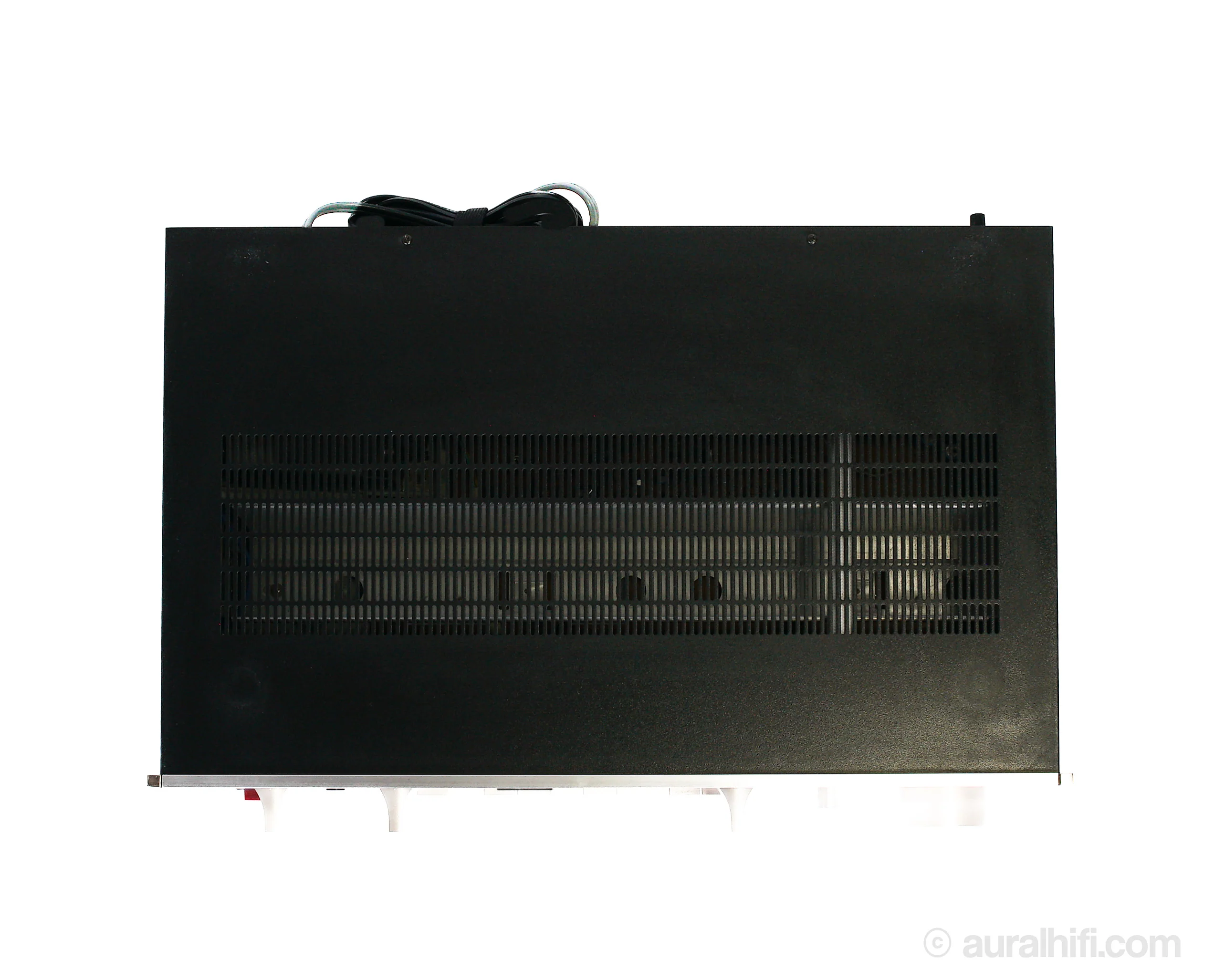

Luxman L400

Type   Solid-state stereo integrated amplifier with MM/MC phono stage

Power output   55 watts per channel into 8Ω (stereo)

Frequency response   10Hz to 100kHz

Total harmonic distortion   0.02%

Input sensitivity   0.3mV (MC), 1.8mV (MM), 160mV (line)

Signal to noise ratio   67dB (MC), 90dB (MM), 107dB (line)

Dimensions   17.83"W x 4.37"H x 12.5"D

Weight   16.75 lbs.

Luxman D405

Type   Compact Disc Player

Disc format   CD

Digital converter   TD6705AP, 16-bit

CD Mechanism   OPH-32

Frequency response   5Hz to 20kHz

Dynamic range   90dB

Channel separation   90dB

Total harmonic distortion   0.003%

Line output   2V

Dimensions   17.83"W x 3.31"H x 12.32"D

Weight   13.23 lbs.

Luxman T240

Type   Solid-state mono/stereo tuner

Tuning Bands   AM/FM

Tuning Scale   Digital

Sensitivity   1.8uV (FM), 500uV (AM)

Signal to Noise Ratio   74dB (FM), 50dB (AM)

Distortion   0.1% (FM), 0.3% (AM)

Selectivity   80dB (FM)

Frequency response   30Hz to 15kHz (FM)

Output   660mV (FM)

Dimensions   17.83"W x 3.03"H x 9.61"D

Weight   6.61 lbs.
