Vintage Kenwood Super Eleven // Solid-State Receiver / Restored

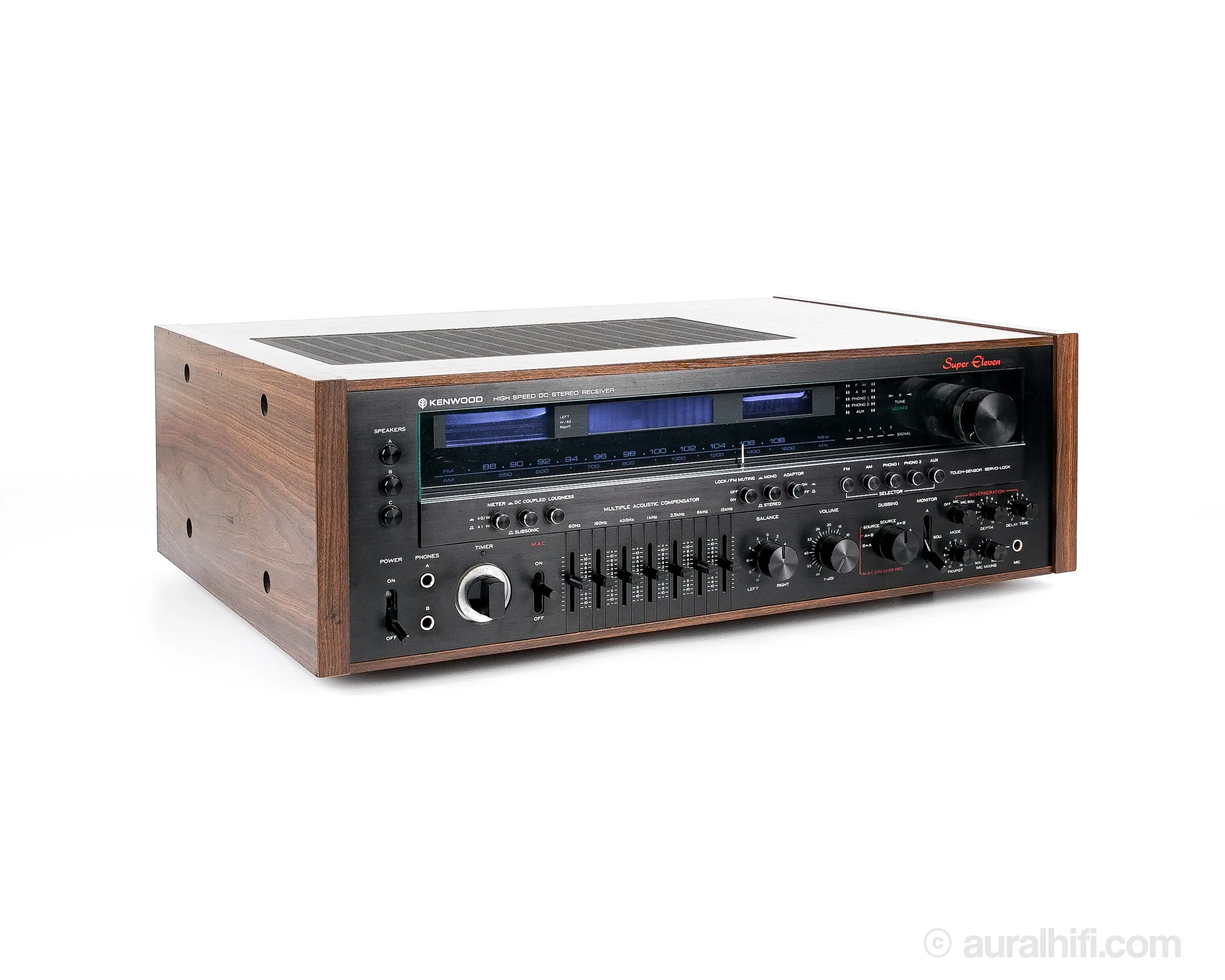

One of the more rare and coveted Japanese monster receivers, the Kenwood Super Eleven is a sight to behold. Not to be confused with the Model 11, the Super Eleven's wood trim and blue readout elegantly offset the black face, and the 125W output delivers headroom to all but the hungriest of speakers. Top working order.

RESTORATIONS

• Full 30-point service check
• Burnished relay contacts
• Resoldered poor connections in amplifier circuit
• Replaced bad lamps
• Replaced output transistors
• Cleaned controls, switches, and chassis

SPECS

Type   Solid State AM/FM Stereo Receiver

Tuning range   AM/FM

Power output   125 watts per channel into 8Ω (stereo)

Frequency response   20Hz to 20kHz

Total harmonic distortion   0.02%

Damping factor   60

Input sensitivity   3mV (mic), 2.5mV (MM), 200mV (line)

Signal to noise ratio   70dB (mic), 80dB (MM), 105dB (line)

Output   200mV (line), 40mV (DIN)

Dimensions   24.57"W x 8.11"H x 18.11"D

Weight   44.53 lbs.
