Vintage JBL L100 Century // Speakers / Aural Custom Restoration

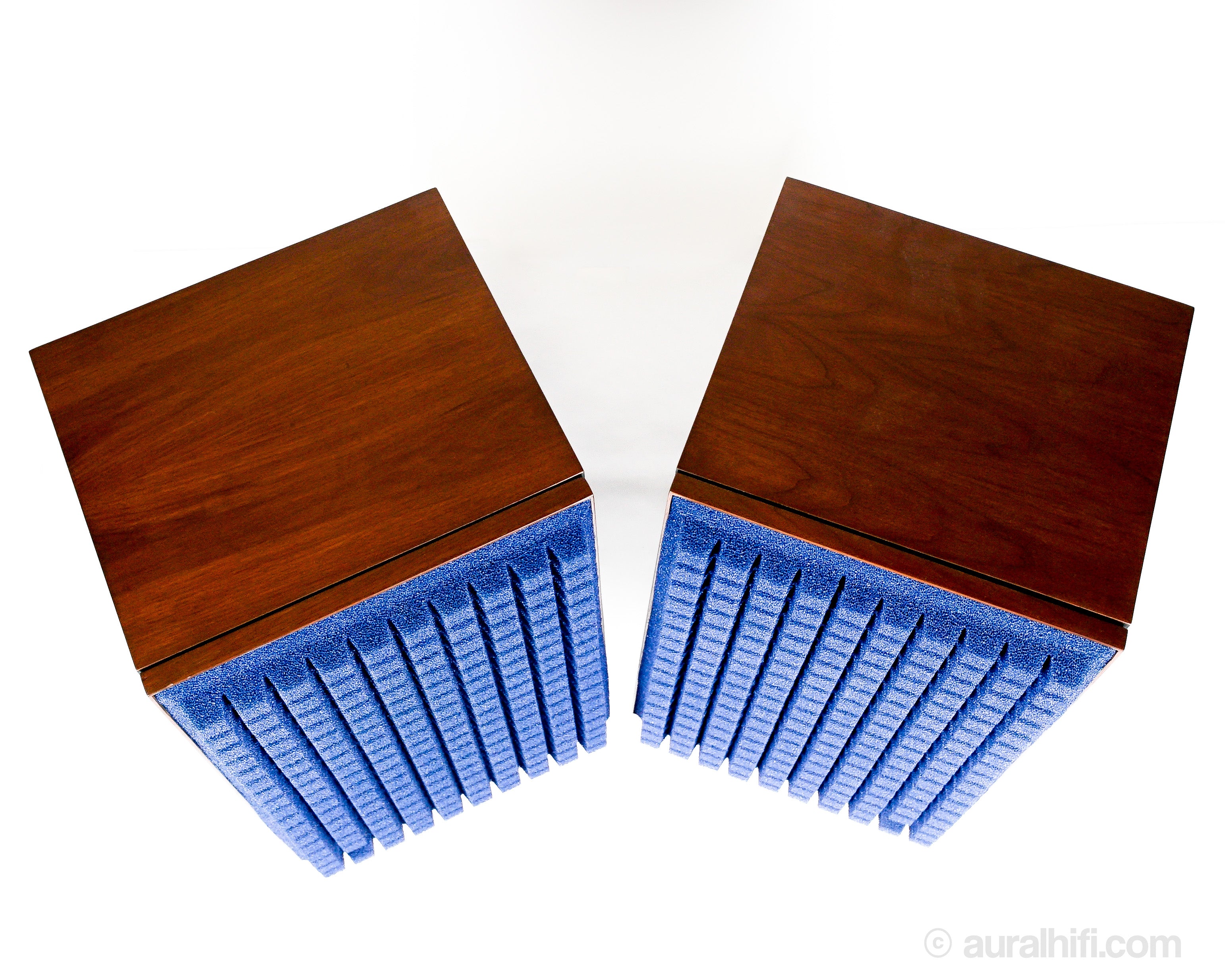

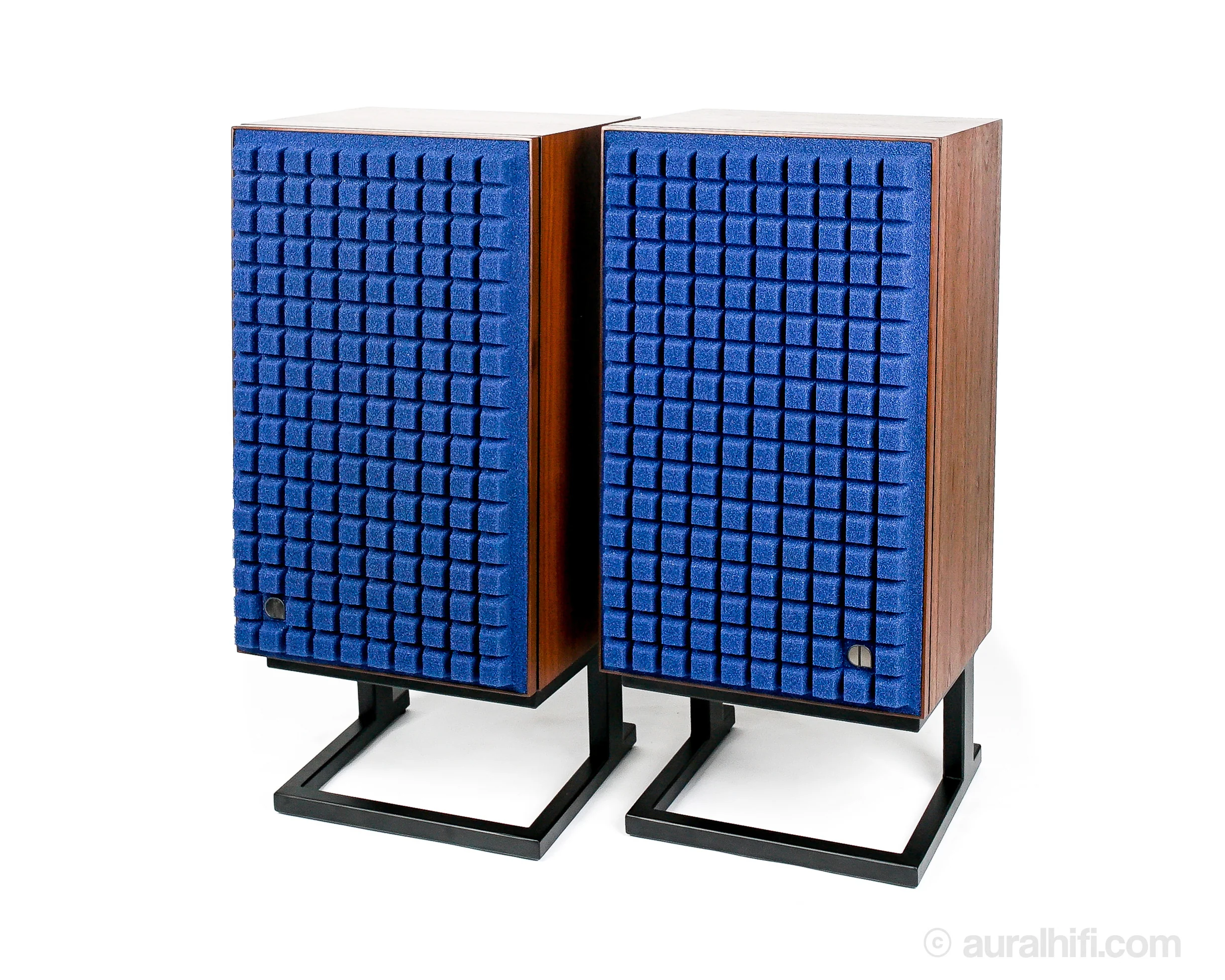

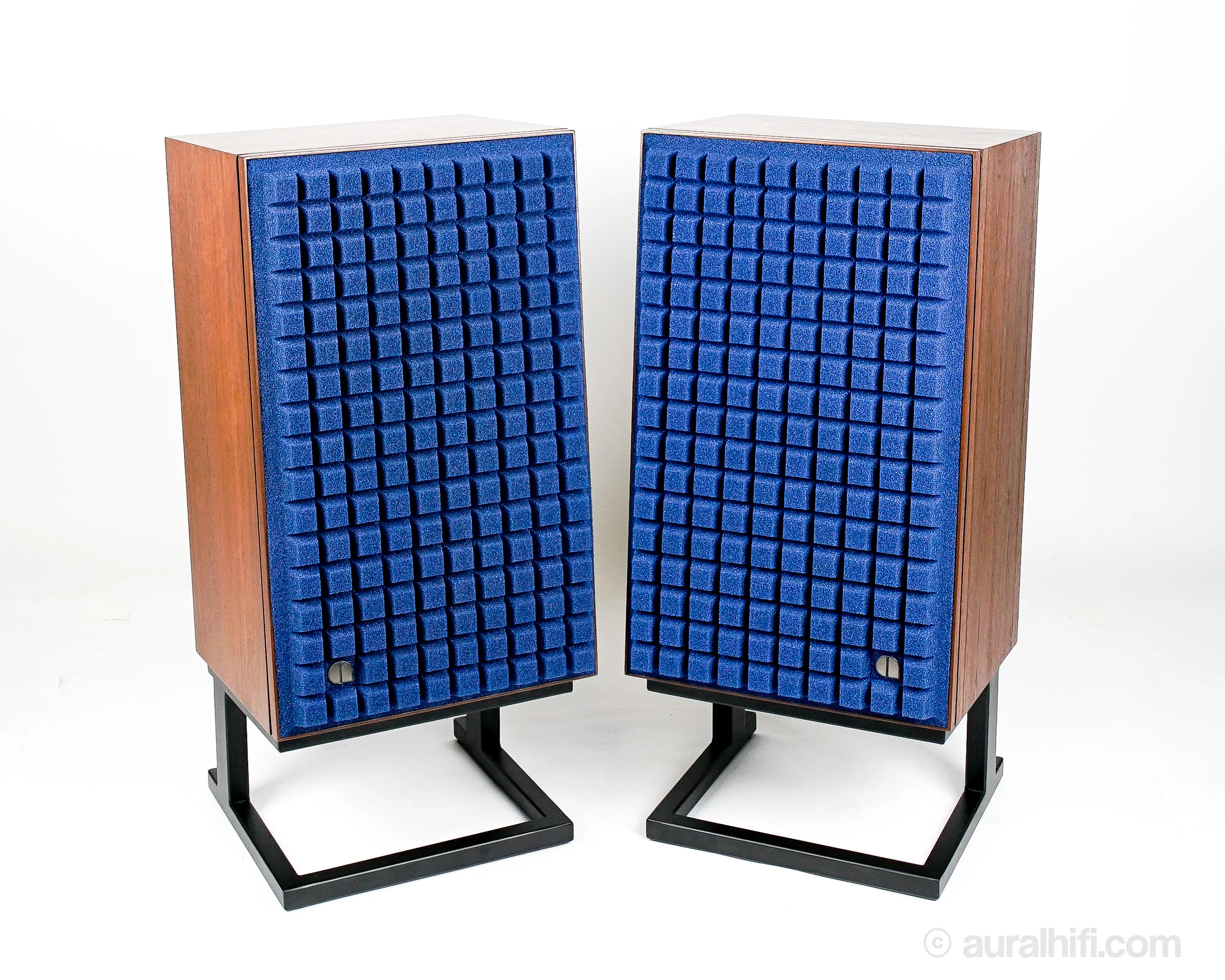

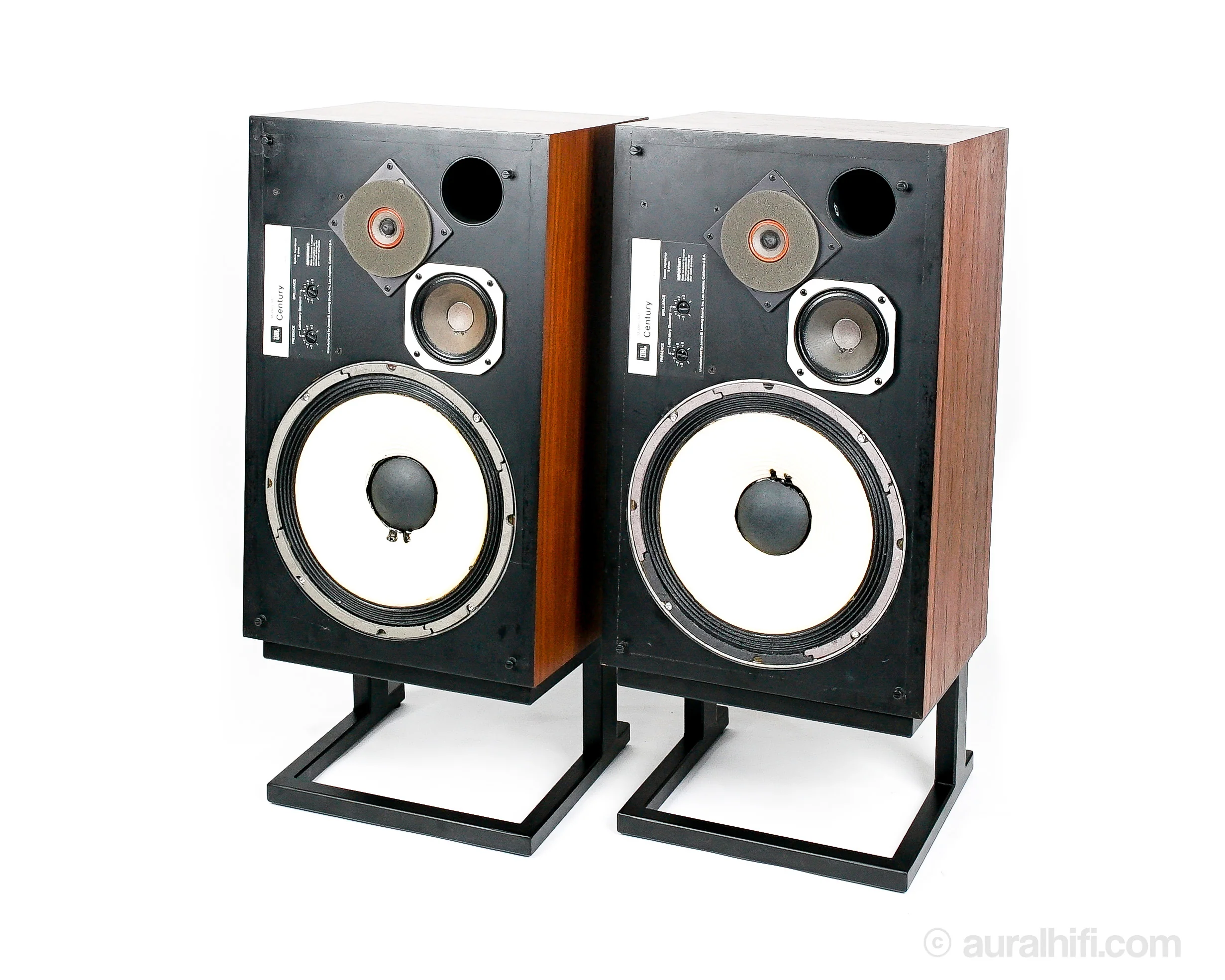

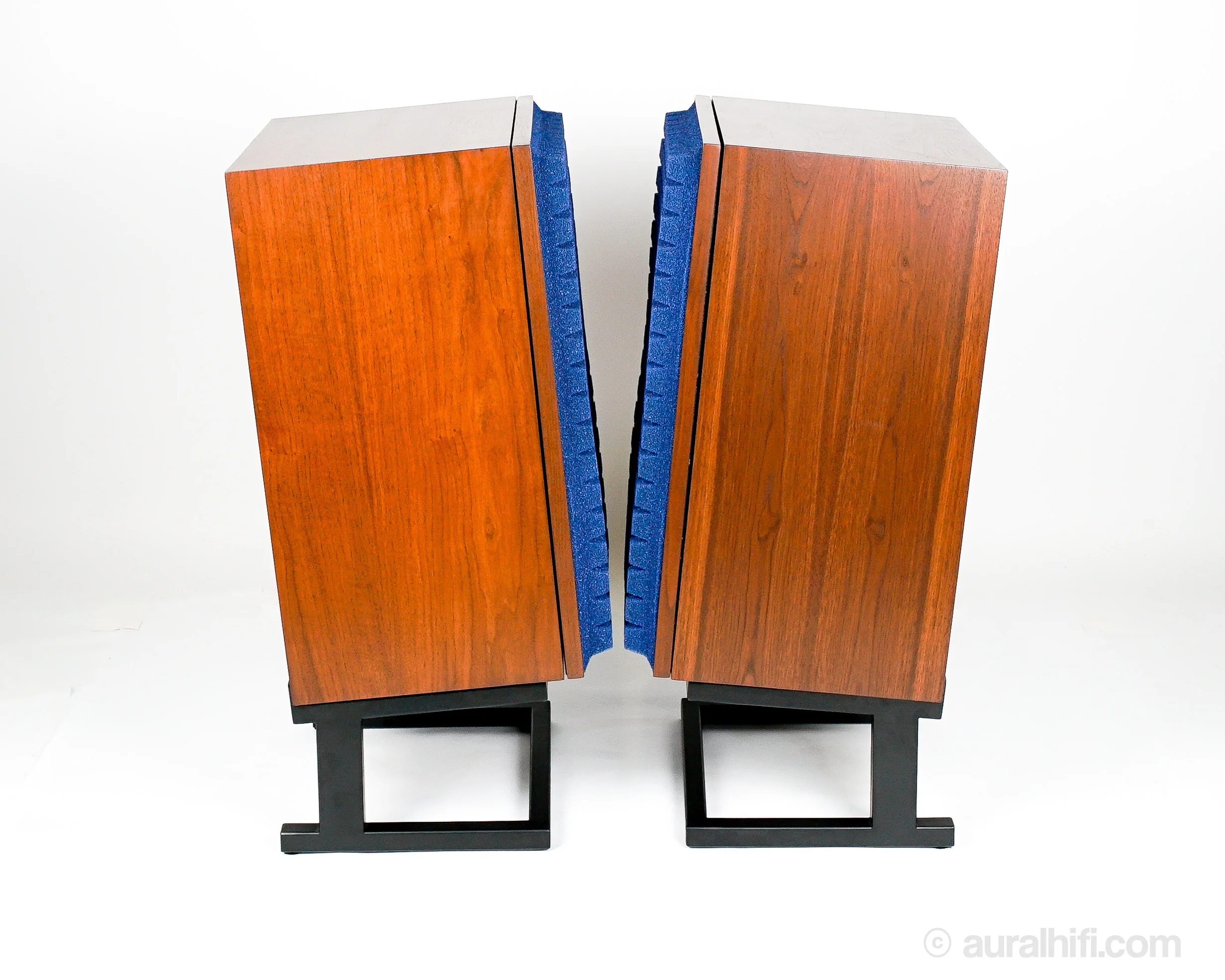

The L100. Arguably the most iconic loudspeaker of all time. There was a period in the 70's the L100 outsold all other speakers combined, yet it never ceases to amaze us how rare it is to find a vintage example in good condition. This is a beautiful pair – we've refreshed the cabinets, replaced the tweeter foam, installed new midrange drivers, and new binding posts. Cosmetically, the tweeter dustcaps have the tiniest dimples, but the gorgeous Lapis Lazuli grilles steal the show. Our fresh cut grilles use modern foam that will outlast your grandkids, and we finish the foam using the same techniques JBL used nearly 50 years ago. For many vintage collectors, the L100 is the holy grail. Amen.

* Stands sold separately

RESTORATIONS

• Full 30-point service check
• Replaced Tweeter foam
• Replaced midrange drivers

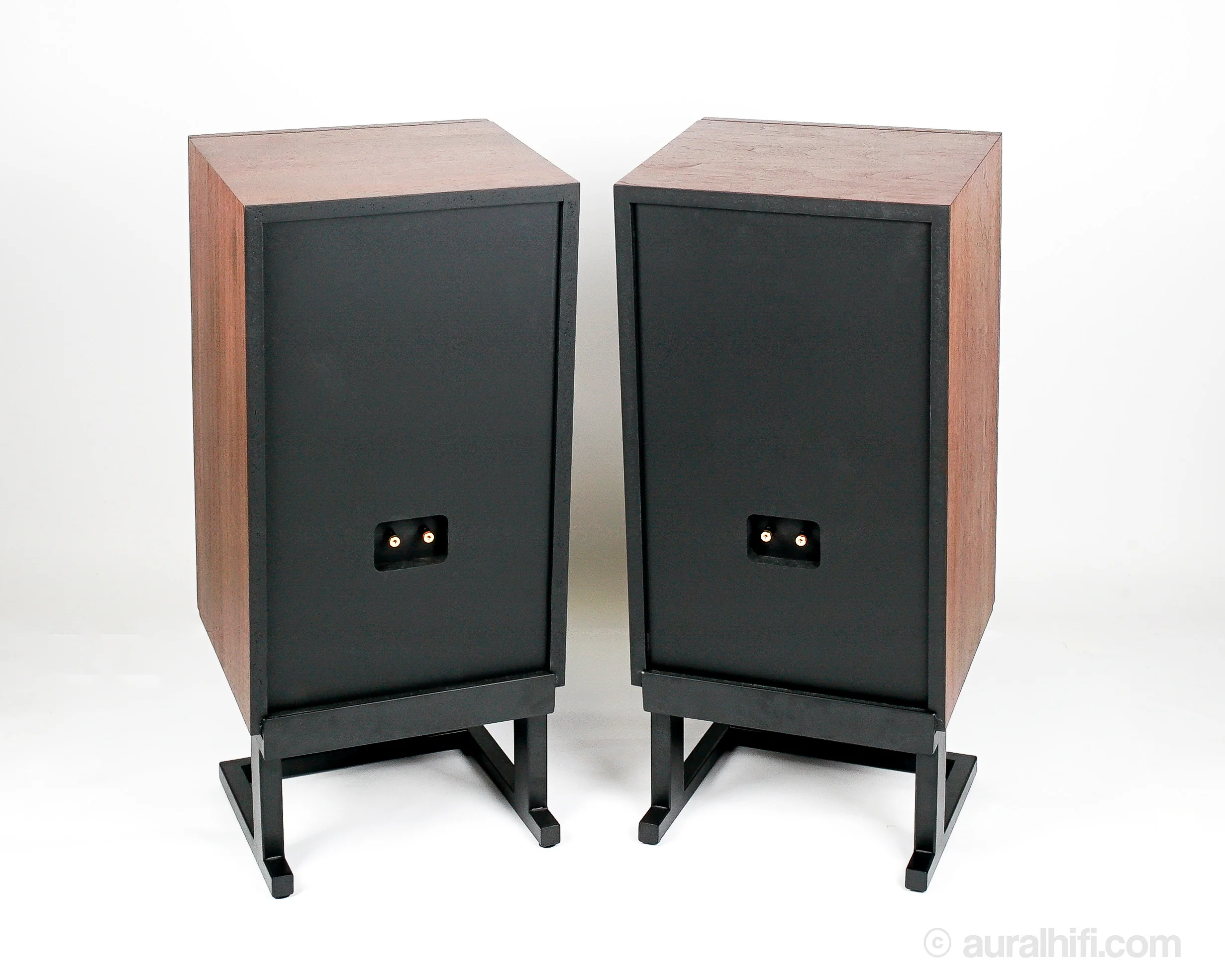

• Installed new binding posts

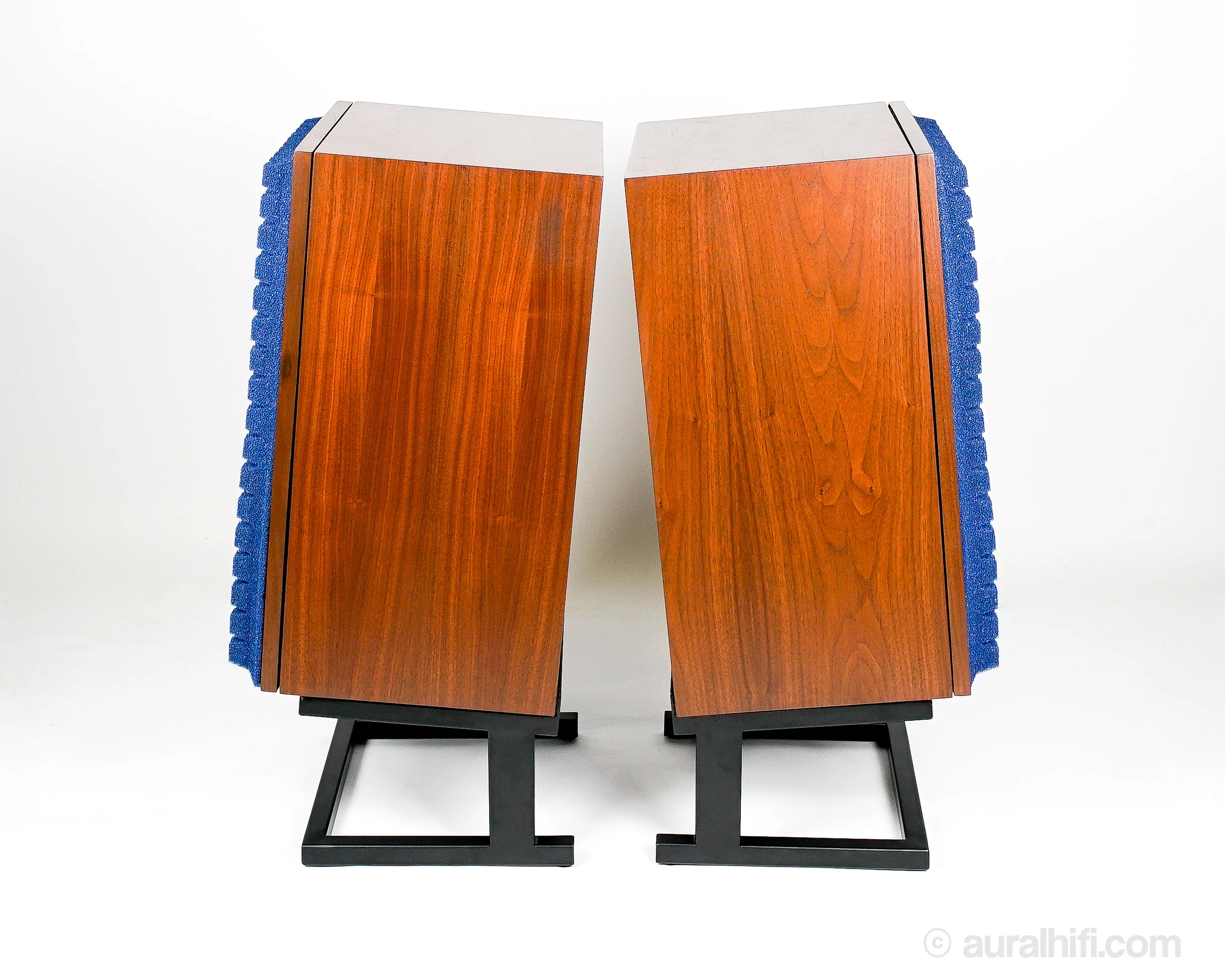

• Touched up cabinets and grille frames
• Cut and installed new foam grilles
• Complete frequency sweep
• Detailed

SPECS

Type   3-way loudspeaker, bass reflex

Internal volume   1.6 cubic feet

Power Capacity   50 watts continuous program

Nominal Impedance   8 Ω

Crossover Frequencies   1500 and 6000 Hz

Efficiency   78 dB at distance of 15', 1 watt input

Woofer Diameter   300 mm (12")

Woofer Voice Coil   76 mm (3") edgewound copper ribbon

Woofer Magnetic Assembly Weight   3,1 kg (6.75 lbs)

Woofer Flux Density   10,400 gauss

Woofer Sensitivity   42 dB

Midrange   Transducer

Midrange Diameter   130 mm (5")

Midrange Voice Coil   22 mm (7/8") copper

Midrange Magnetic Assembly Weight   1,2 kg (2.75 lbs)

Midrange Flux Density   16,500 gauss

Midrange EIA Sensitivity   46 dB

Tweeter   High Frequency Direct Radiator

Tweeter Diameter   36 mm (1,4 ")

Tweeter Voice Coil   16 mm (5/8") copper

Tweeter Magnetic Assembly Weight   0,7 kg (1.6 lbs)

Tweeter Flux Density   15,000 gauss

Tweeter Sensitivity   47 dB

Finish   Oiled walnut

Dimensions   14.5"W x 24.5"H x 13.5"D / 360 x 600 x 350 mm

Weight   45 lbs/ea

LINER NOTES

The renowned JBL 4310 studio monitors' consumer equivalent is the JBL L100 Century. JBL already had a solid reputation for producing full-size studio monitors that were quite accurate in the late 1960s. JBL was compelled to start developing the 4310 model due to the growing demand for more compact control room monitors. The specifications were for a 45l enclosure to handle high power handling, high acoustic output without distortion, and smooth frequency response over the whole audio spectrum. The 4310 studio monitors were unveiled by JBL Professional Division two years after the project was first started. Numerous well-known studios, including as Capitol, Deutsche Grammophon, EMI, London/Decca, RCA, etc., immediately adopted these speakers as their preferred option. In fact, the demand for these monitors increased to the point where many musicians and engineers began buying them. Immortalized in the famous Maxell ad campaign, Blown Away, the L100 Century is arguably the most iconic speaker of all time.
