Vintage JBL 4311wx // Speakers / AlNiCo Woofers

The legendary sound of the JBL 4311, completely restored and fully re-veneered in walnut. For the grilles, we chose orange, but there are handful of other colors available. Drop us a line and we can chat. Recapped, rewired, reveneered, but more importantly, renowned.

* Stands sold separately

RESTORATIONS

• Full 30-point service check
• Recapped crossover

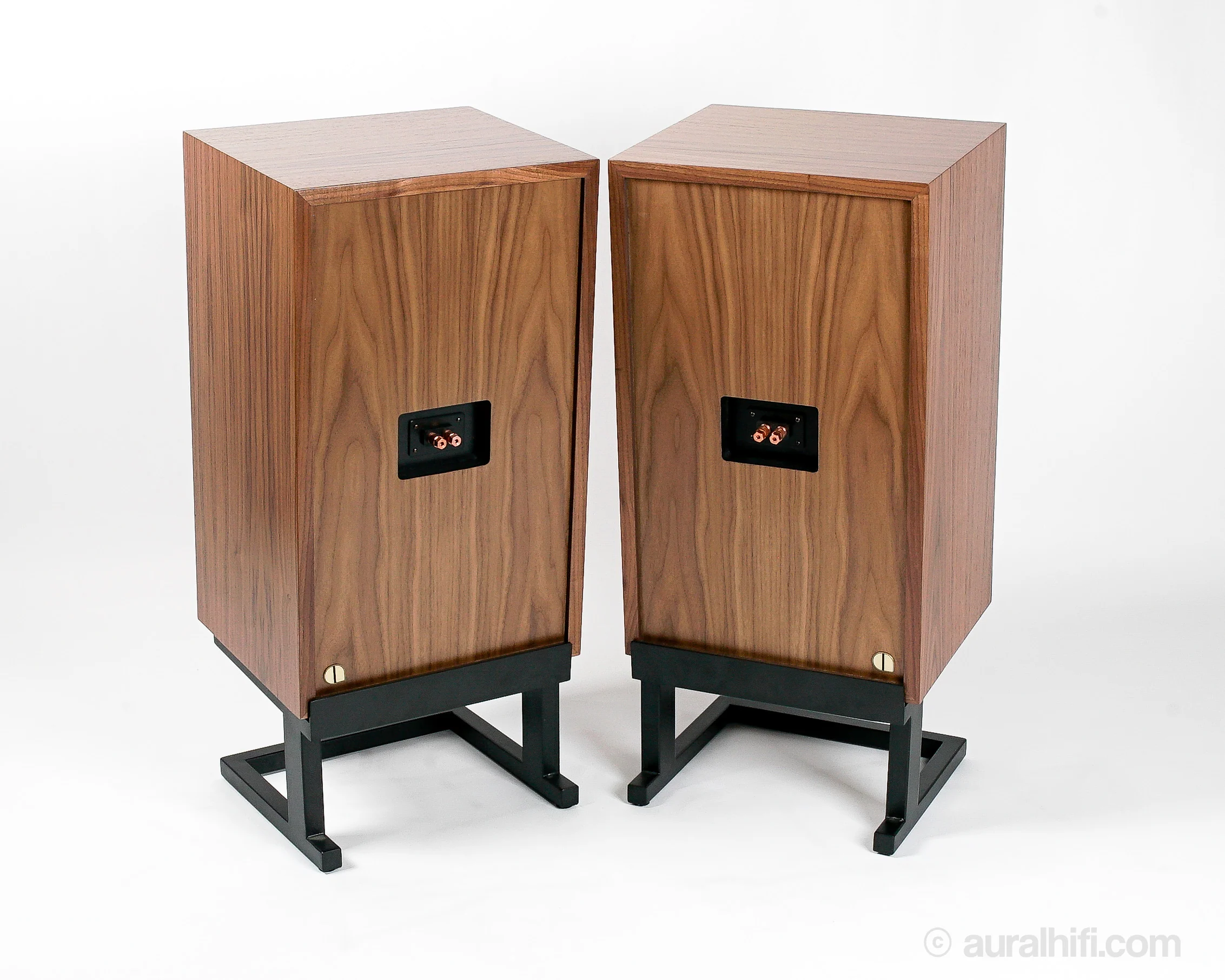

• Installed Cardas binding posts
• Custom veneer across entire cabinet
• Complete frequency sweep
• Detailed

SPECS

Type   3-Way, 3-Speaker, Bass reflex standmount loudspeaker

Sensitivity   91dB

Frequency Response   45 Hz to 15 kHz ±3 dB

Impedance   8Ω

Dispersion   90°

Output sound pressure level   91dB/W/m

Power Handling   40W(RMS) / 75W(Peak)

Enclosure volume   40L

Woofer   300mm long throw cone (2213H/ AlNiCo Magnet )

Midrange   130mm cone (LE5-10)

Tweeter   36mm direct radiator (LE25-2)

Crossover frequency   1.5 kHz, 6 kHz

Dimensions   14.25"W x 23.5"H x 11.75"D

Weight   44 lbs.

LINER NOTES

The history of some of the world's most famous and valued JBL loudspeakers traces back to the 1960s, commencing with the 4320 model. To enhance the dispersion of high frequencies, a smaller-diameter tweeter replaced the original one. Additionally, adjustments were made to the crossover frequencies to achieve a smoother response. This updated version was designated as the 4311 and featured a conventional recessed baffle, along with an H.F. radiator raised to the acoustic plane of the woofer and the front edge of the enclosure. JBL recommended it as "a compact package delivering smooth, powerful, and broadband response."
