Gold Note PH-10 // New / MM-MC Phono Preamplifier
Where the PH10 truly shines is in its sound performance. This phono stage breathes new life into your vinyl collection, offering a sound that's both dynamic and detailed. It supports both Moving Magnet (MM) and Moving Coil (MC) cartridges, providing flexibility for a wide range of turntable setups. For those who cherish the warmth and richness of vinyl, the Gold Note PH10 phono stage is a revelation.

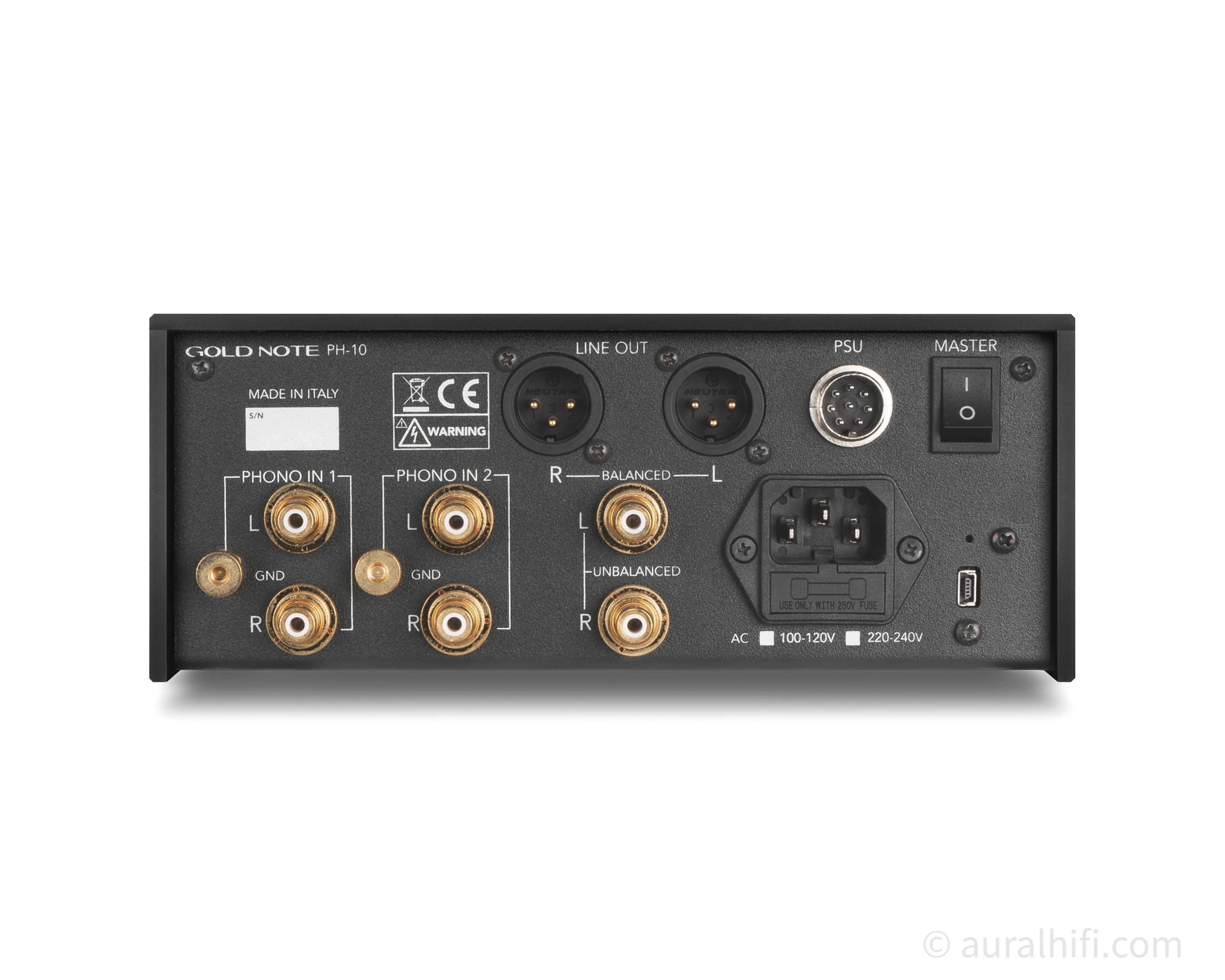

- ANALOGUE INPUTS: MM/MC two independent stereo RCA
- INPUT SENSITIVITY: 0.1mV MC up to 10.0mV MM
- INPUT IMPEDANCE: 9 options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22kΩ, 47kΩ]
- GAIN: 45dB MM to 65dB MC with 4 options [0dB, ± 3dB, + 6dB]
- CAPACITANCE (MM ONLY): 220pF
- AUDIO OUTPUTS: 1x unbalanced RCA1x balanced XLR (+12dB)
- OUTPUT IMPEDANCE: 50Ω
- POWER CONSUMPTION: 10W Super Linear supply
- STANDBY CONSUMPTION: < 0,5W
- POWER SUPPLY: 100-120V or 220-240V, 50/60Hz
- FUSE: 0,5A F/T
- DIMENSIONS: 200W | 80H | 260D mm
- WEIGHT: Kg. 3
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Where the PH10 truly shines is in its sound performance. This phono stage breathes new life into your vinyl collection, offering a sound that's both dynamic and detailed. It supports both Moving Magnet (MM) and Moving Coil (MC) cartridges, providing flexibility for a wide range of turntable setups. For those who cherish the warmth and richness of vinyl, the Gold Note PH10 phono stage is a revelation.
- ANALOGUE INPUTS: MM/MC two independent stereo RCA
- INPUT SENSITIVITY: 0.1mV MC up to 10.0mV MM
- INPUT IMPEDANCE: 9 options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22kΩ, 47kΩ]
- GAIN: 45dB MM to 65dB MC with 4 options [0dB, ± 3dB, + 6dB]
- CAPACITANCE (MM ONLY): 220pF
- AUDIO OUTPUTS: 1x unbalanced RCA1x balanced XLR (+12dB)
- OUTPUT IMPEDANCE: 50Ω
- POWER CONSUMPTION: 10W Super Linear supply
- STANDBY CONSUMPTION: < 0,5W
- POWER SUPPLY: 100-120V or 220-240V, 50/60Hz
- FUSE: 0,5A F/T
- DIMENSIONS: 200W | 80H | 260D mm
- WEIGHT: Kg. 3
