JBL SG520 // Vintage / Graphic Controller Preamplifier

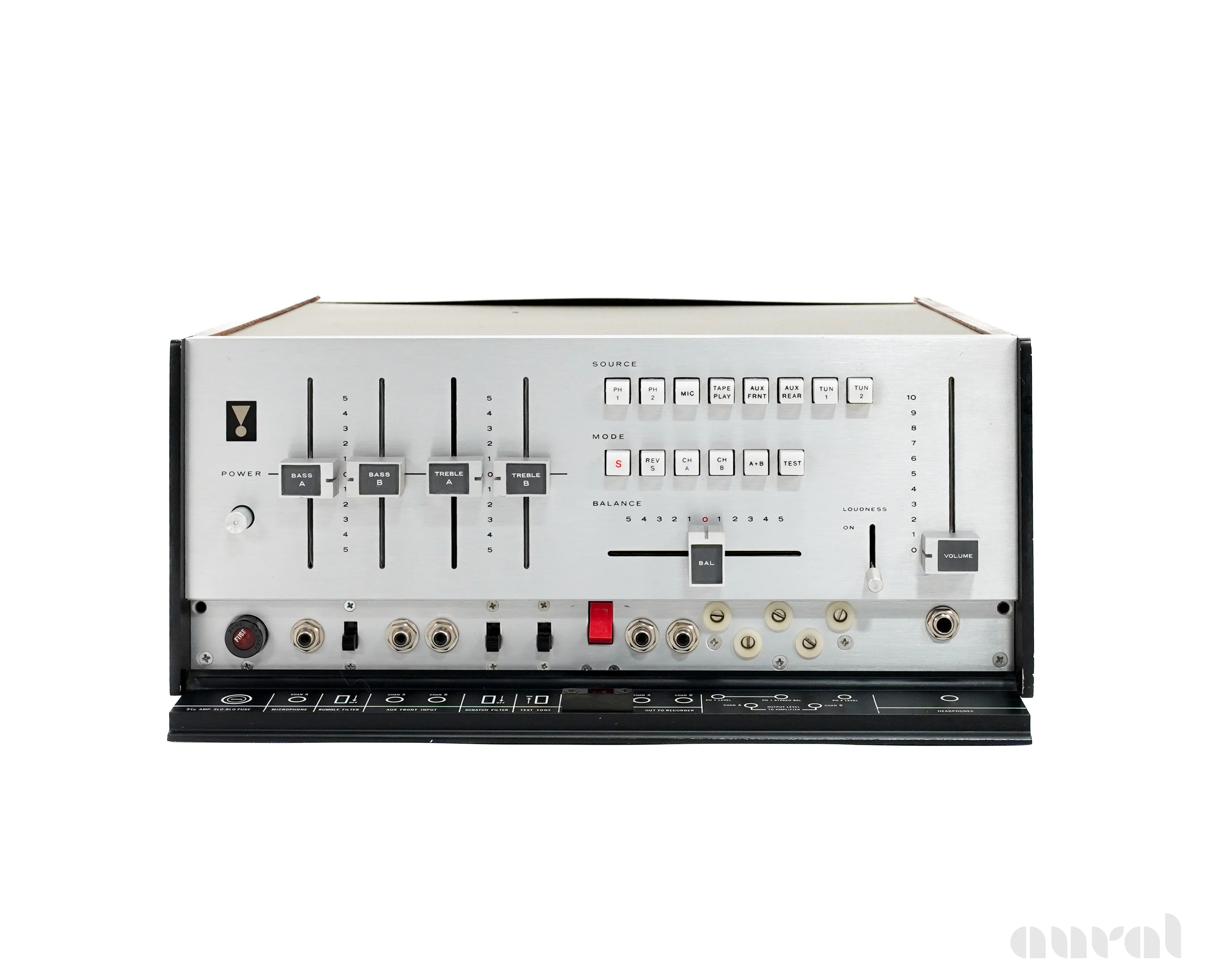

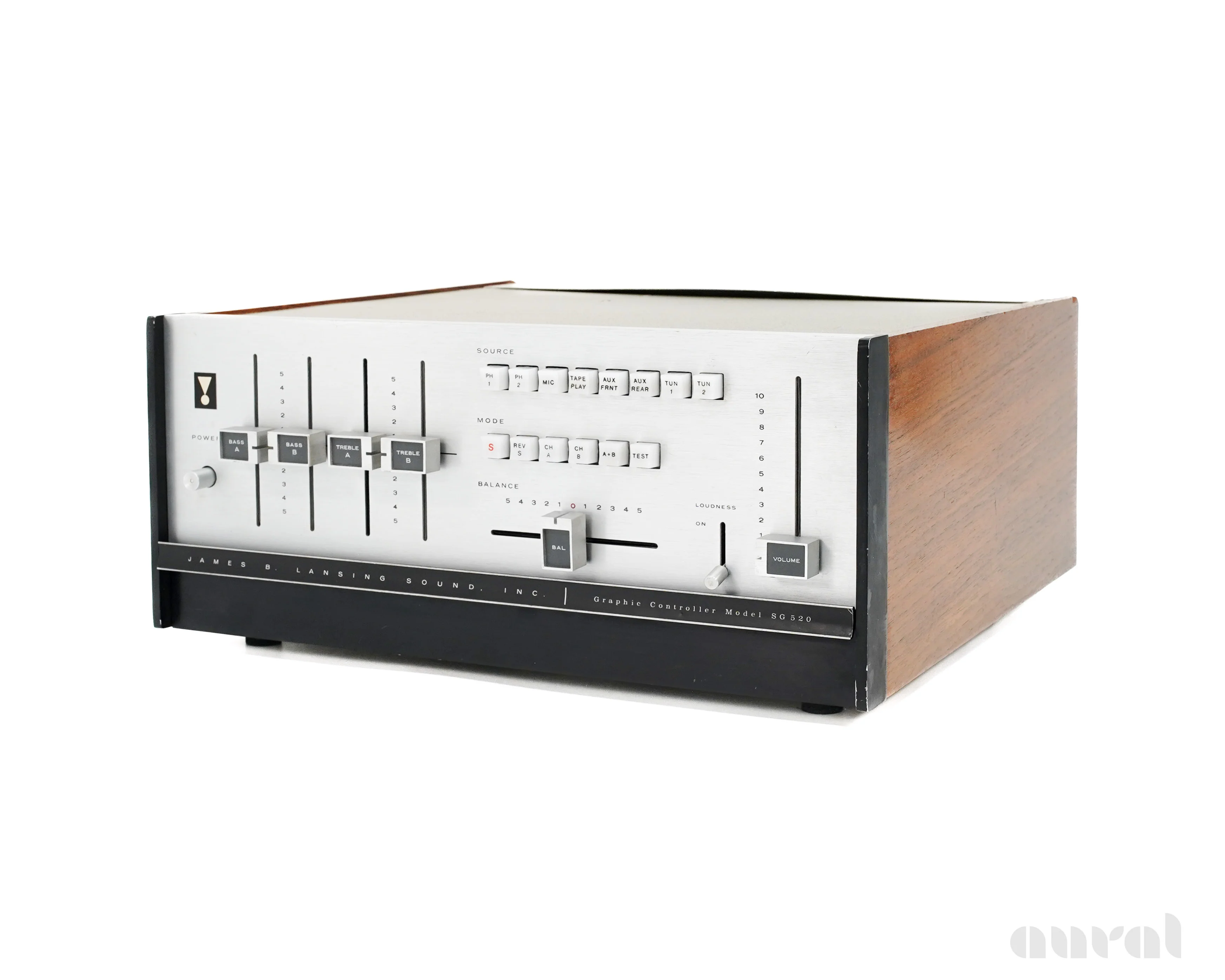

Meet the JBL SG520, a preamp that looks like it crash-landed from a '70s spaceship—and somehow still sounds ahead of its time. Launched during JBL’s golden age of audio experimentation, this bad boy was their bold response to the question: “What if high fidelity could also look cool?”. First thing you’ll notice? No knobs. That’s right—JBL ditched the twisty bits and went all-in on sleek slider controls. It gives the SG520 a clean, linear look that screams retro-future in the best possible way. Pair that with a brushed aluminum faceplate, glowing sliders, and chunky walnut side panels, and you’ve got a piece of gear that turns heads even when it’s turned off.

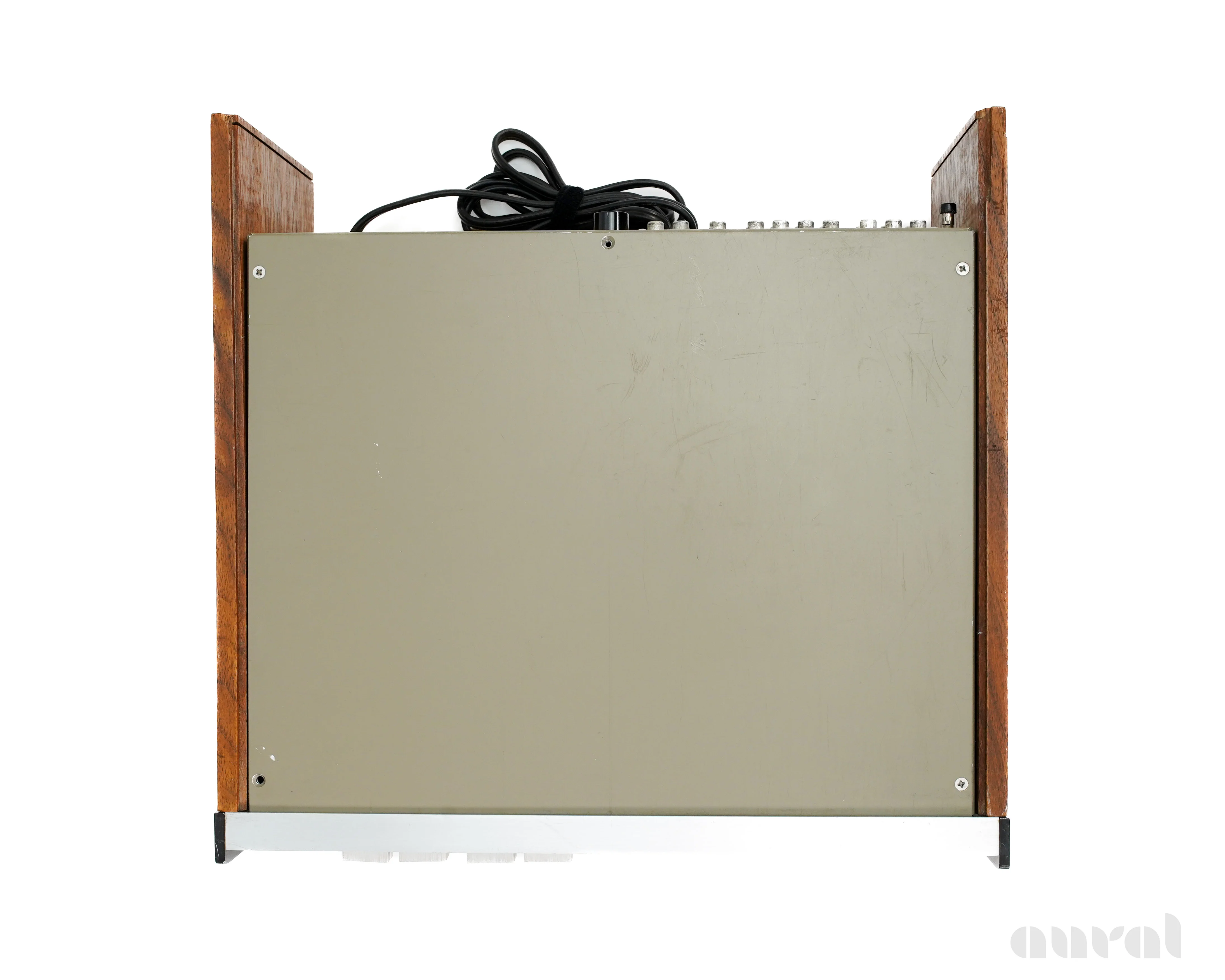

*Includes rare top and back cover.

S/N: 1730

• Heavy dose of contact cleaner on all switches/sliders/buttons/connectors
• Took extra time to get the stereo output button working without distortion
• Replaced one capacitor that looked damaged
• Installed 4 new bulbs for button illumination
• Verified test tone circuit
• Headphone output sounds best with higher impedance headphones (100 ohm+)

FACTORY SPECS

Frequency response: 20Hz to 20kHz

Total harmonic distortion: 0.15%

Gain: 54dB (MM), 21dB (line)

Signal to noise ratio: 90dB (DIN)

Input sensitivity: Phono: 6mV / AUX: 300mV
Output: 3V (Pre out)

Semiconductors: 23 x transistors, 11 x diodes
