Aragon Palladium // Vintage / Solid-State Monoblock Amplifiers / Balanced Inputs / 030446/030447

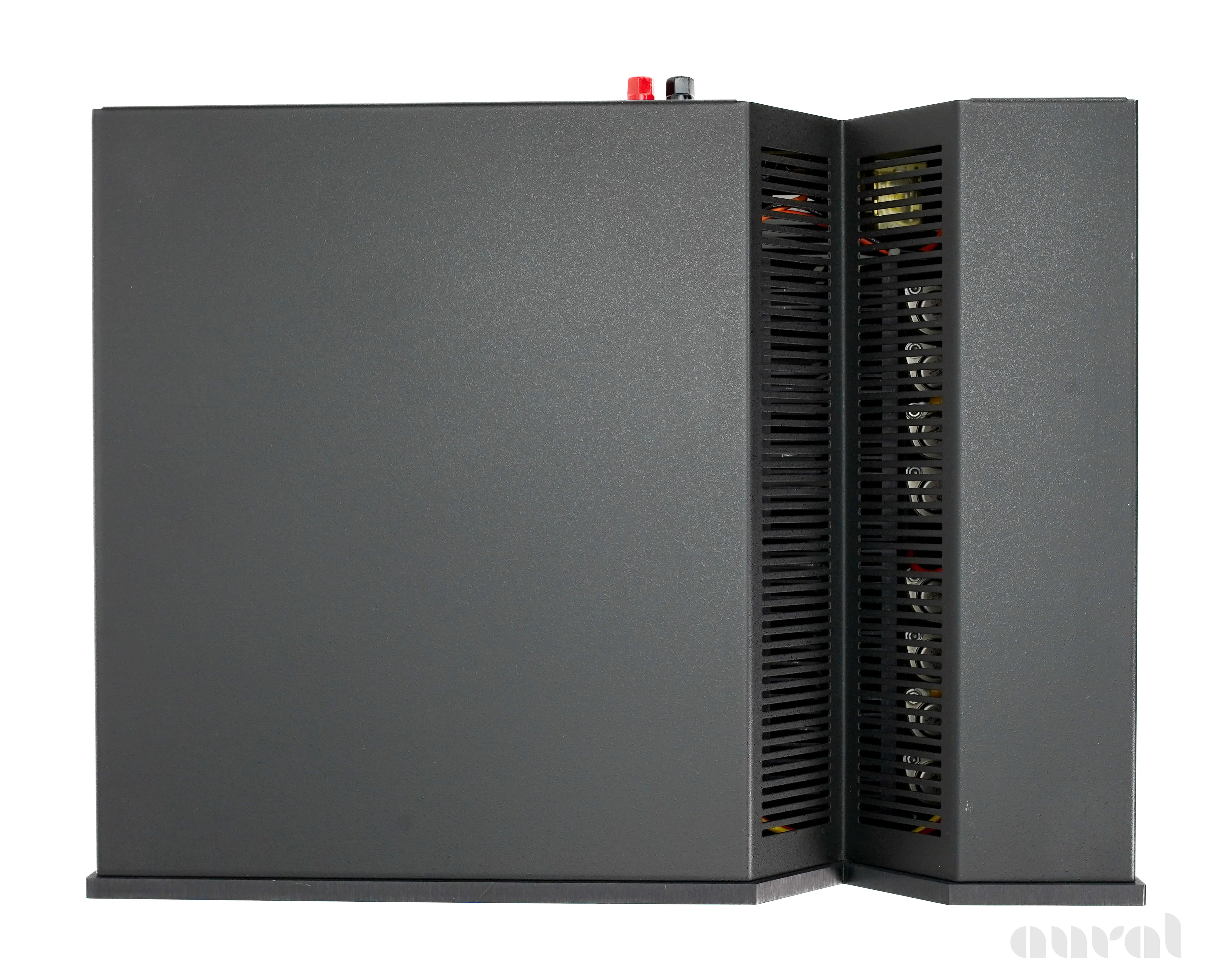

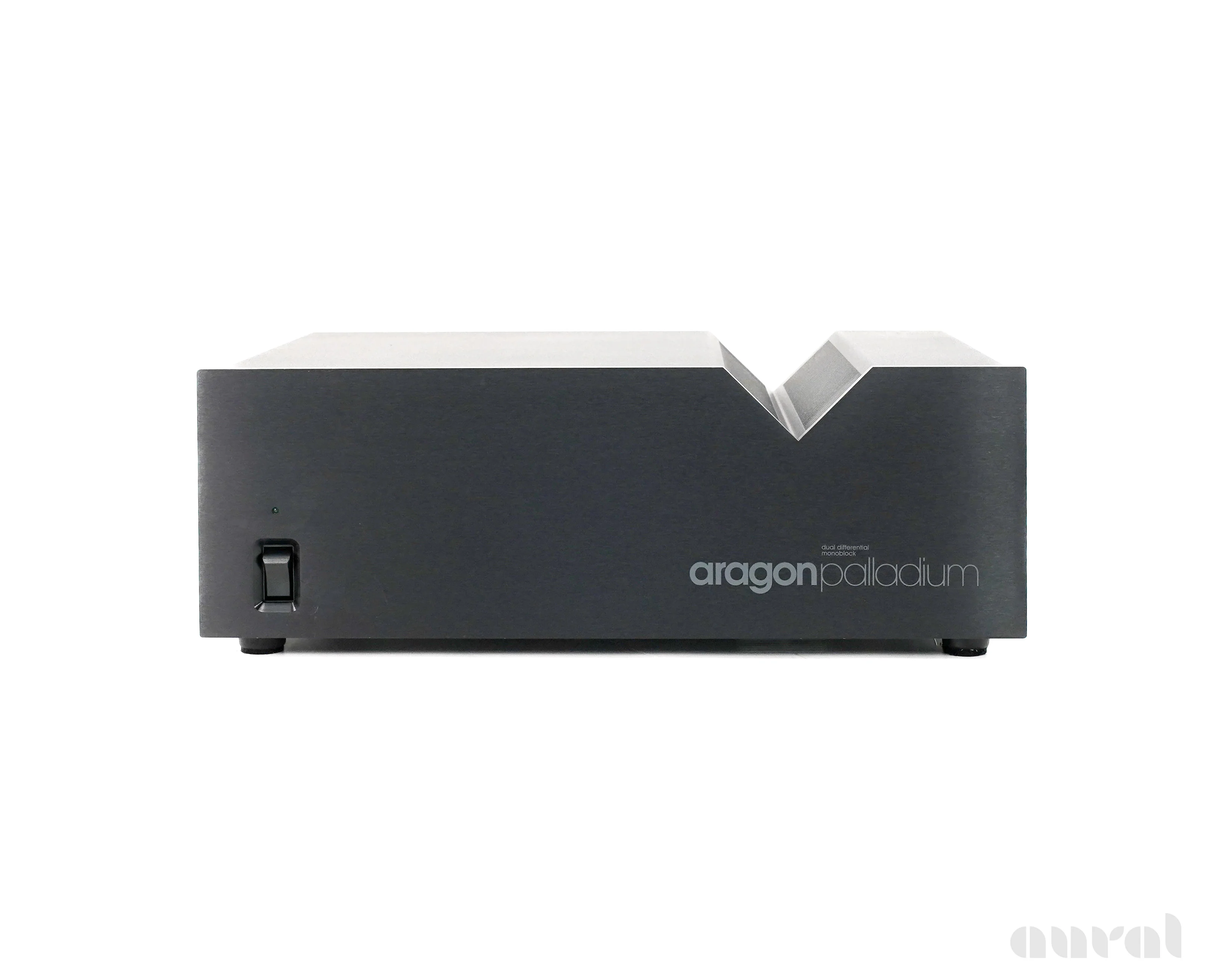

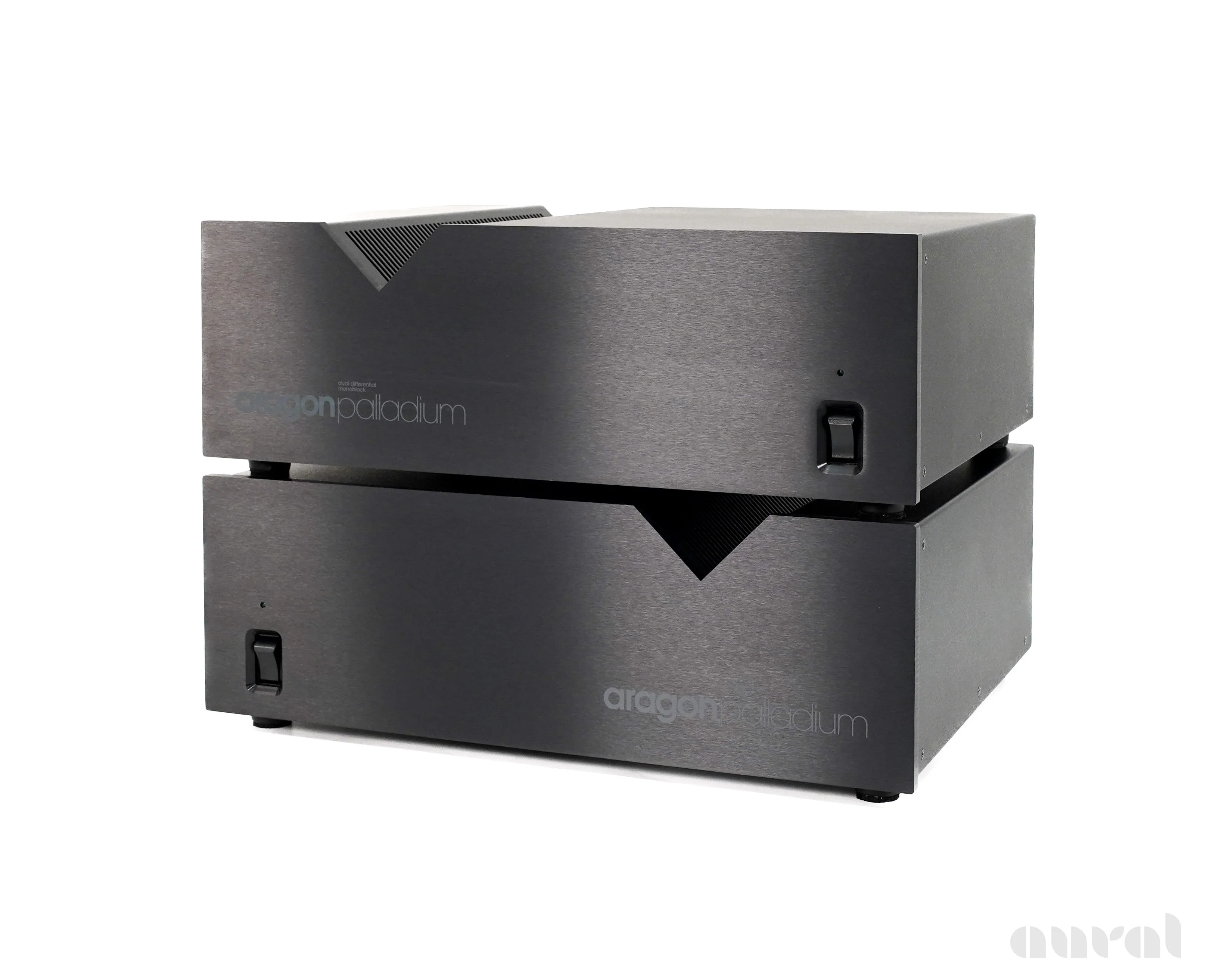

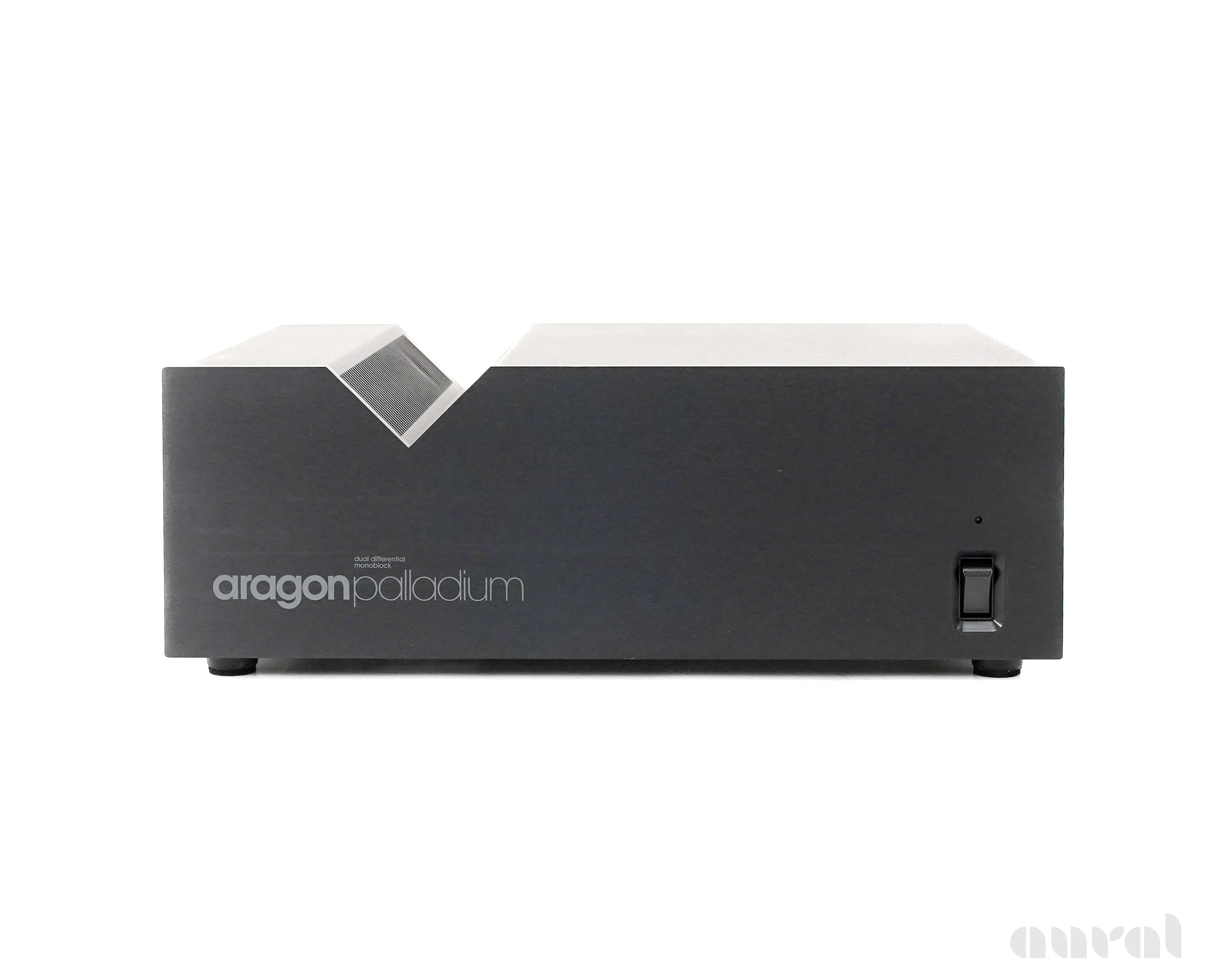

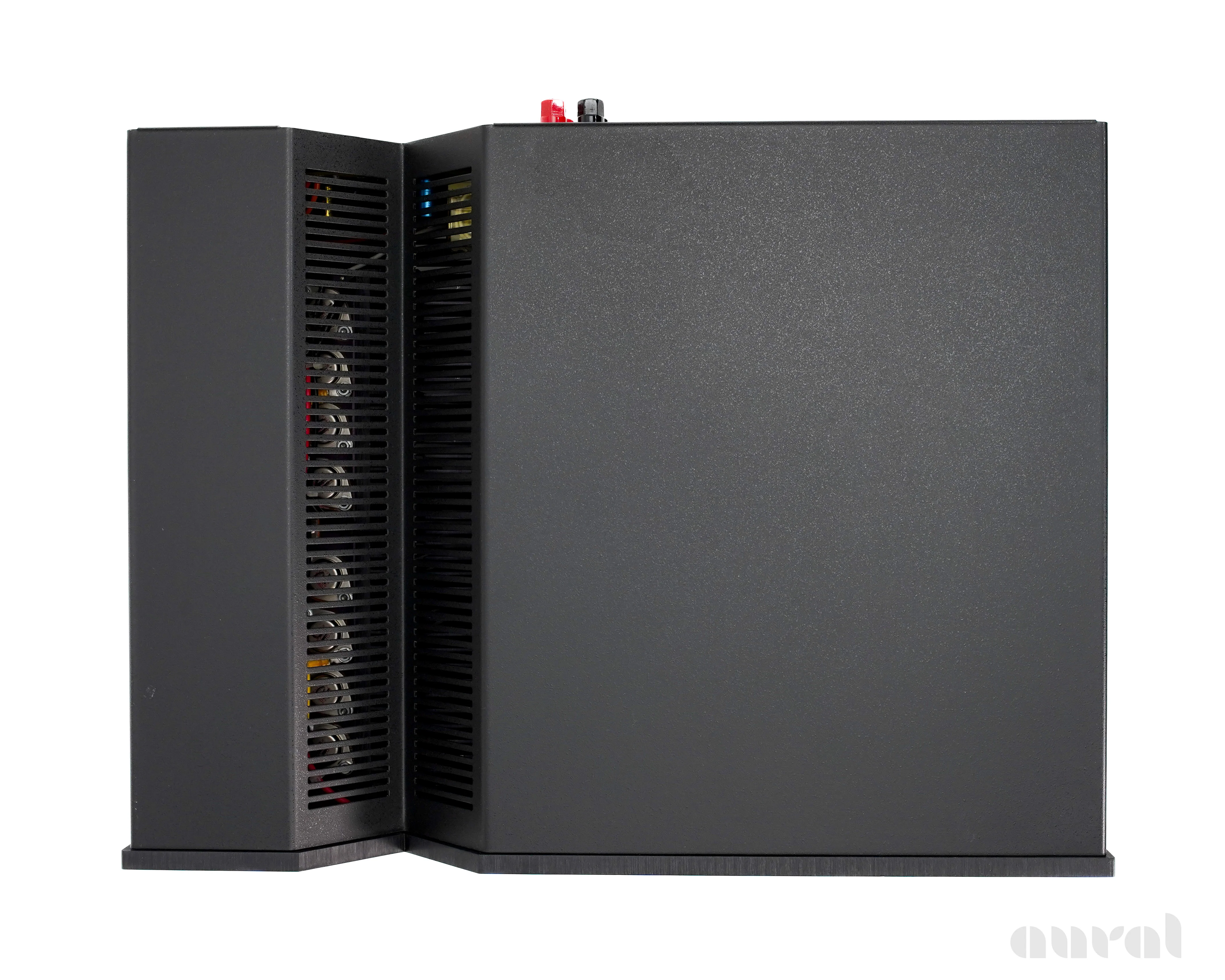

The Aragon Palladium monoblock amplifiers are like the heavyweight champions of the audio world—powerful, refined, and ready to knock you out with their sonic prowess. Crafted by Mondial Designs, these amps are a testament to the art of amplification, delivering both brute strength and delicate finesse. At first glance, the Palladiums exude an industrial elegance. Their robust chassis, adorned with distinctive "V" shaped heat sinks, not only make a visual statement but also serve a critical function in heat dissipation. Weighing in at a hefty 76 pounds each, these monoblocks are built like tanks, featuring a massive toroidal transformer at their core.

S/N: 030446 / 030447

• Replaced resistors R201, R202 in both units
• Tightened loose screws to heat sink on amp board.
• Verified power and distortion meets specs at 1kHz:
• Serial # 030446 100 watts RMS into 8 ohms @0.02% THD+N
• Serial # 030447 100 watts RMS into 8 ohms @0.01% THD+N

FACTORY SPECS

POWER

100 watts per channel continuous into 8 ohms 20-20Khz

at no more than .03% THD

600 watts per channel into 4 ohms 20-20khz

SIGNAL TO NOISE RATIO

112db A Weighted

INPUT SENSITIVITY

150mV for 1 Watt Output

INPUT IMPEDENCE

6000/44k ohms

MAXIMUM POWER CONSUMPTION

1600 Watts
